    Video

    Learn more by watching our Clipsal Airflow 7106A | Wall Mounted Exhaust Fan, 200mm, Auto Switched, White video.

    Description

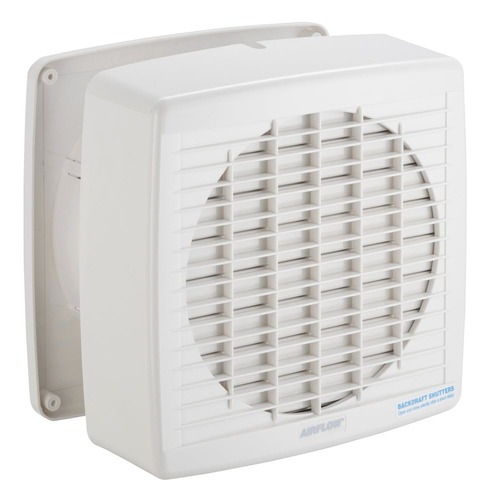

    Clipsal Airflow 7106A | Wall Mounted Exhaust Fan, 200mm, Auto Switched, White

    Airflow 7106A Wall Exhaust Fan Axial 200mm Auto Switched Ceiling exhaust fan white 200mm. Fits discreetly into cavity-type ceilings to efficiently exhaust air. Stylish, low-profile grill. Can be easily removed for cleaning. 240mm cut out. Flex & plug.

    Wall Mounted Exhaust Fans, 200MM Fan Wall Kit, Outlet Grille and Fixing Kit, Maxair, switched remotely, auto shutters, BCA, IPX4, 38W, 230mm diameter cut out, 600m³/hr.

    MaxAir exhaust fans are new products that offer high-performance air extraction with whisper-quiet operation. They are attractively styled with silent operating shutters in a white gloss finish, which are also very easy to clean. Most of the MaxAir range can be easily retrofitted into existing cutout holes. All installations are easily carried out by one person, a great time-saving feature. MaxAir fans are supplied with compact ductwork that will easily fit walls between 110 and 310mm. No cable ties or tape is needed, as the duct attaches easily to the fan’s unique ‘duct grippers’. All fans are configured to allow flex and plug to be fitted, or they can be wired direct.

    Features

    • BCA axial fan
    • High-performance air movement
    • Low noise level
    • One person installation
    • 271 x 271 mm overall intake
    • 110 -310 mm window depth
    • 220 mm diameter duct
    • 230 mm diameter hole
    • Auto shutter operation
    • One speed
    • Ball bearing motor
    • Auto switch compatible:  Approximately 60 seconds delay on opening and up to 3 minutes delay on the closing of shutters, ensuring silent operation.

    This product has been replaced with

    (7106A)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 3 Year
    Commercial Use: 3 Year
    Warranty Method: Clipsal in home warranty

    https://www.clipsal.com/warranty



    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU 7106A
    Barcode # 9311554250287
    Package Weight 3.000kg
    Package Width 0.250m
    Package Height 0.217m
    Package Length 0.275m
    TYPE VALUE
    Type Exhaust Fan
    Brand Clipsal by Schneider Electric
    Colour White gloss finish
    Diameter 188 mm impeller
    [Ue] rated operational voltage voltage 230...240 V AC
    [In] rated current 0.18 A full load
    Power consumption in W 38 W
    Air Flow 600 m3/h
    Reviews
    5.0

    4 Reviews
    5 STARS
    4
    4 STARS
    0
    3 STARS
    0
    2 STARS
    0
    1 STAR
    0

    Write a review

    Alex Kam

    Review Airflow 7106A Wall Mounted Exhaust Fan on 5 October 2016

    This new fan replacing the old 6106 model except the power wiring is on the other side of the old fan! Great and quiet operation. Just in time before the summer starts!

    Jeff Naghiloo

    200 wall mount exhaust fan on 6 June 2016

    Good quality,quiet,powerfull unit.

    Jennifer Kelly

    Airflow 7106A fan on 1 April 2016

    We ordered the fan to replace another 7106A which wasn't working anymore. There are no screws to screw it into the wall included in the new fan box. Luckily we were able to use the ones from the previous fan. So if you purchase you would need to supply your own screws and thick sticky tape to tape the white folding plastic together.

    Ian

    Replacement for old Mistral Model 6106 Wall Mounte on 14 December 2015

    After searching for a while, this is the closest replacement unit I could find for the old Mistral unit installed back in 1988. While not an identical device, it did fit in the same hole and with the optional wall plates made for a neat job as the new plates are larger than the old wall plates. In fact this meant that the interior wall plate was not able to be used, as it extended over existing wall tiles. But a bit of touch-up paint fixed that. The fan is much quieter than the old one. Hopefully it will last as long.
