What Are Plug Tops and Sockets and How Do You Choose the Right Type?
Table of Contents
- How Plug Tops and Sockets Work
- Why Correct Selection Matters
- Types of Plug Tops and Sockets
- Electrical Ratings and Load Capacity
- Safety Features and Compliance
- Choosing the Right Plug Top or Socket
- Socket and Plug Configurations
- Applications by Environment
- Installation and Maintenance
- Long-Term Performance Considerations
- Buying Plug Tops and Sockets in Australia
- Common Mistakes to Avoid
- Troubleshooting Common Issues
- Tradies Join Club Clipsal with Sparky Direct
- Product Videos
- What Sparky Direct Customers Say
- Quick Summary (TL;DR)
- Frequently Asked Questions about Plug Tops & Sockets
How Plug Tops and Sockets Work
A plug and socket pairing is a deliberately mechanical interlock. The plug pins align with sleeved contacts inside the socket, completing the active and neutral conductors that carry current, plus the earth conductor that bonds exposed metalwork back to the supply. When the contact surfaces meet under spring pressure, current can flow at the socket's rated capacity without excessive resistance or heat build-up.

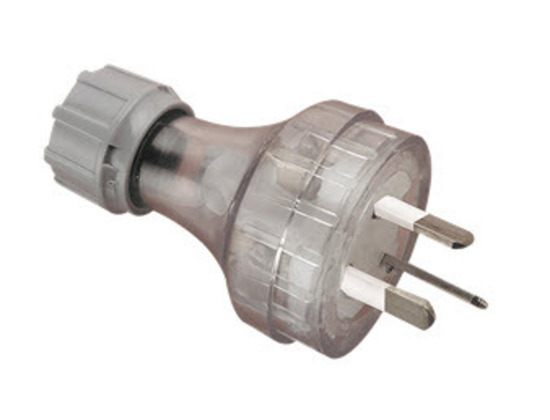

What a Plug Top Is

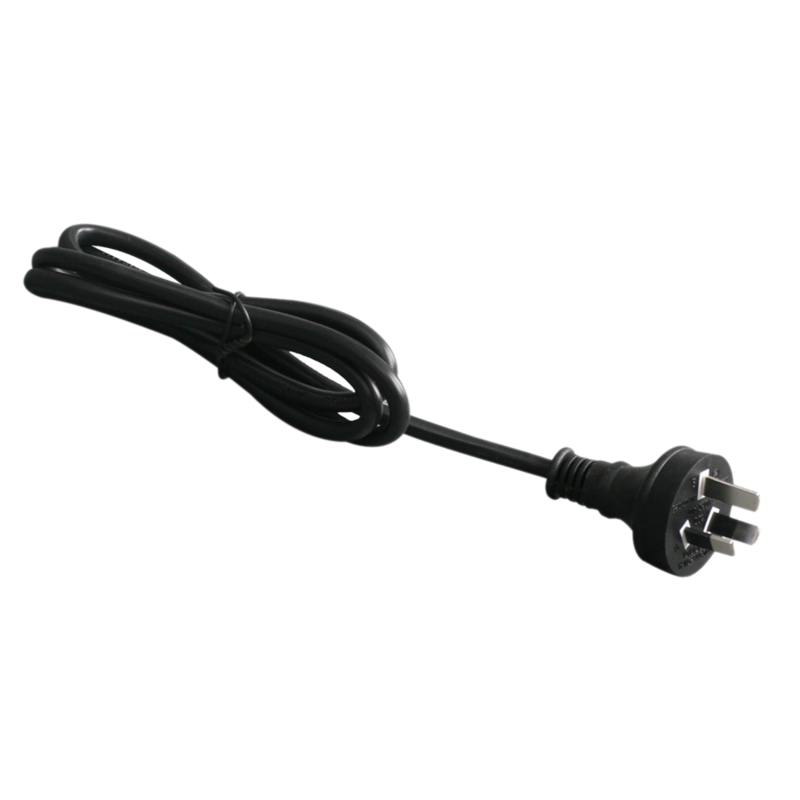

A plug top is the rewireable or moulded fitting attached to the supply end of a flexible cord. It carries the male pins, the cord clamp that prevents conductor pull-out, and (on rewireable types) screw terminals for active, neutral, and earth. Australian plug tops use the AS/NZS 3112 flat-pin configuration for general purpose use, or round-pin industrial patterns for higher current applications.

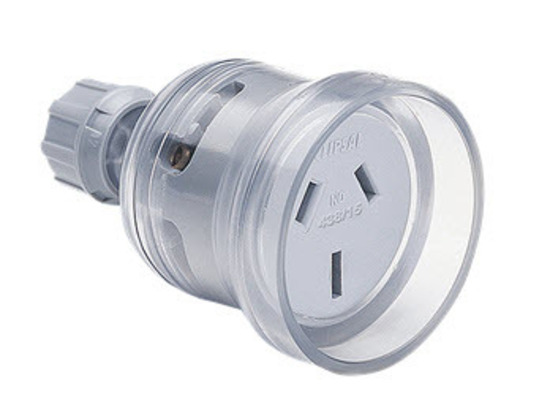

What a Socket Is
A socket is the female outlet that accepts a plug top. It can be wall-mounted (a fixed power point), surface-mounted on a back box, or fitted to the end of a lead as an extension socket. The socket houses the spring contacts, terminal block, and (on switched types) an internal microswitch that isolates the active conductor when the rocker is off.
How Plug and Socket Connections Deliver Power Safely
Safe power transfer relies on three things working together: clean, low-resistance contact between pins and socket; correct polarity so active and neutral land on the right conductors; and a continuous earth path for fault current. When all three are present, the assembly will carry rated current indefinitely. When any one is compromised, the joint heats up, arcs, or fails to clear a fault. Surface sockets from quality brands hold tolerances tight enough to maintain that contact pressure across thousands of plug cycles.
Why Correct Selection Matters
Plug top and socket selection is one of those small decisions that determines whether a circuit performs reliably for years or fails inside a fortnight. The wrong rating, the wrong IP class, or a poor mechanical match between plug and outlet creates risk that the rest of the installation cannot compensate for.
Importance of Correct Matching Between Plug and Socket
A 10A plug should land in a 10A outlet, a 15A plug in a 15A outlet, and a 20A plug in a 20A outlet. The pin sizes are deliberately incompatible across ratings to prevent overload. Forcing a 15A plug into a 10A receptacle by filing pins down is illegal and dangerous: the supply circuit will not protect against the connected load. Use a properly rated plug top matched to the appliance and the outlet.
Risks of Poor Connections (Heat, Arcing, Failure)
Loose terminations and worn contacts produce localised heating because resistance rises at the joint. That heat softens insulation, discolours the moulding, and eventually carbonises plastic into a conductive path. Arcing across a partially withdrawn plug produces the same outcome faster. Both failure modes cause equipment damage, downtime, and fire risk if left unaddressed.
Role in Reliable Power Distribution
Sockets and plug tops are the most-cycled components in any installation. A workshop bench socket might see fifty insertions a week; a caravan inlet sees them weekly for life. Choosing trade grade fittings designed for that duty cycle keeps the rest of the wiring system performing as designed.
Types of Plug Tops and Sockets
Standard Domestic Plug Tops and Sockets
The bread and butter of every Australian home: 10A flat-pin three-pin plugs and matching wall outlets to AS/NZS 3112. Suitable for general appliances up to 2400W on a standard 10A circuit. Available as moulded sealed plugs on appliance leads or as rewireable transparent and opaque tops for service work and lead repair.
Heavy-Duty and Industrial Options
Heavy duty 15A and 20A flat-pin plugs serve workshops, welders, and commercial appliances drawing more than the standard 10A allowance. Above that, the industrial outlets family steps in: round-pin three, four, and five pin assemblies rated 16A through 32A and beyond, designed for plant, machinery, and three-phase loads.
Special-Purpose Configurations (Weatherproof, Locking, IP Rated)
Outdoor and wet-area installations need IP66 rated assemblies that seal against dust ingress and powerful water jets. The IP66 3 pin industrial outlets and sockets range covers single-phase weatherproof needs, while IP66 4 pin industrial outlets and sockets and IP66 5 pin industrial outlets and sockets handle three-phase plant and motor circuits.
Electrical Ratings and Load Capacity
Current Rating and Load Capacity
Every plug top and socket carries a stamped current rating: 10A, 15A, 20A, 32A, and so on. That figure is the maximum continuous current the contacts can carry without exceeding their thermal design limit. Brief inrush currents above the rating are permitted; sustained loading above it is not.
Matching Equipment to Socket Rating
Working out the right rating starts with the appliance nameplate. Add the rated current of every device on the same lead, include any soft-start surge factor, and pick a socket rated above that total with margin. A welder pulling 14A continuous belongs on a 15A outlet, not a 10A. A pop-up power outlet such as the pop up power outlet range typically provides multiple 10A points, which limits each circuit to 10A regardless of how many sockets are fitted.
Risks of Underrated Components
| Failure Mode | Cause | Visible Symptom |
|---|---|---|
| Pin overheating | Sustained current above rated capacity | Brown discolouration on plug face |
| Contact spring fatigue | Repeated overloading softens the metal | Plug feels loose in the outlet |
| Insulation breakdown | Heat carbonises the plastic body | Black streaks, cracking, smell of burnt plastic |
| Cord clamp failure | Strain pulls conductors out of terminals | Intermittent operation, exposed copper |
Safety Features and Compliance
Earthing and Polarity
The earth pin is longer than active and neutral by design: it makes contact first on insertion and breaks last on withdrawal, so any exposed metalwork is bonded before live conductors connect. Polarity matters too. Active must land on the brown (or red) conductor and switching gear, neutral on the blue (or black). Reversed polarity is not always obvious to the user but creates real hazards if a fault develops.
Material Quality and Build Standards
The visible plastic body and the invisible internal contacts both matter. Quality plug tops use brass or phosphor bronze contacts in V-0 rated polycarbonate or urea formaldehyde housings. Trade grade products carry RCM certification marks confirming Australian compliance.
Compliance with Australian Electrical Standards
Plug tops and sockets sold for Australian installation must comply with AS/NZS 3112 (general purpose plugs and socket outlets) and AS/NZS 3123 (industrial plugs and socket outlets). Installation requirements are set out in AS/NZS 3000:2018, the Wiring Rules. Industrial round-pin assemblies typically also reference IEC 60309 for international compatibility.
Choosing the Right Plug Top or Socket
Indoor vs Outdoor
- Indoor: standard IP20 wall sockets are fine
- Damp areas: IP44 minimum
- Exposed outdoor or washdown: IP66
- Boats and pools: marine-rated specifics
Light vs Heavy Duty
- Domestic appliance: 10A moulded
- Workshop tools: 15A heavy duty rewireable
- Industrial plant: round-pin 16A or 32A
- Three-phase motors: 4 or 5 pin rated to load
Fixed vs Portable
- Fixed wall outlet for permanent points
- Surface socket for retrofits or exposed cabling
- Extension socket on a lead for temporary supply

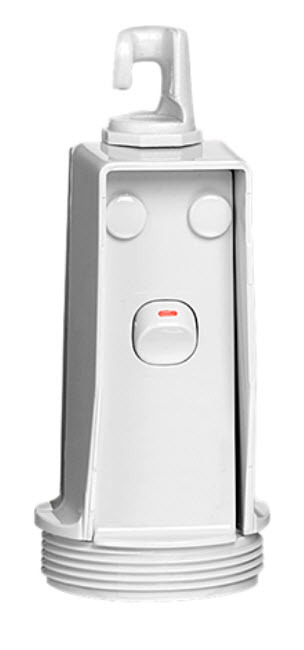

- Suspension type for overhead drops
Indoor vs Outdoor Applications
Indoor environments allow standard rated outlets without ingress concerns, though kitchens and bathrooms still demand splash protection per the Wiring Rules. Outdoors, every assembly needs verified IP66 protection against driven rain and dust. The Easy56 switched socket combination outlets range is the workhorse for trade-grade weatherproof points.
Light-Duty vs Heavy-Duty Use
Light duty 10A products handle the routine: lamps, kettles, computers, vacuum cleaners. Heavy duty starts at 15A and adds reinforced housings, larger contacts, and tougher cord clamps. The Wiring Rules require an outlet rated at or above the maximum demand of the connected appliance.
Fixed vs Portable Power Solutions
Fixed power points are the default for permanent installations. Portable solutions, such as female cord extension sockets and flex and plug assemblies, suit temporary supply, equipment leads, and on-site distribution.
Socket and Plug Configurations
Single vs Multiple Socket Outlets
Single outlets serve dedicated loads (a single welder, a single freezer). Doubles and quads share one circuit between several appliances. The circuit's protective device still limits total current regardless of socket count, so loading every outlet on a quad to its rated capacity will trip the breaker.
Switched vs Unswitched Designs
Switched sockets isolate the active conductor at the outlet, which lets the user de-energise an appliance without unplugging. Trade and industrial use almost always specifies switched, particularly weatherproof switched socket outlet RCD protection assemblies that combine isolation with residual current detection.
Surface-Mounted vs Flush-Mounted Installations
Flush mounted outlets sit recessed in the wall behind a flat plate and dominate residential fitouts. Surface mounted versions sit proud of the substrate on a back box and suit retrofits, exposed brick, masonry, and industrial walls where chasing in is impractical.
Applications by Environment
Residential and Household Use
Standard 10A wall outlets cover the bulk of household needs. Kitchens add dedicated circuits for ovens (often hardwired or 15A), dishwashers, and appliance benches. Bathrooms use shaver outlets and IP44 enclosures within zone restrictions. Outdoor garden points typically need IP66 enclosures.
Commercial and Workshop Environments
Workshops mix general purpose outlets for hand tools with 15A or 20A points for compressors, welders, and bench equipment. Suspension extension sockets dropped from overhead distribute power across open work areas without lead hazards on the floor.
Industrial and High-Load Applications
Plant rooms, factories, and processing facilities run on round-pin industrial assemblies. Three-phase motor circuits, machine controls, and heavy plant typically use Easy56 industrial extension sockets paired with matching Easy56 straight and angled plugs for reliable, weatherproof connections.
Installation and Maintenance
Licensed work only: Fixed wiring of socket outlets is restricted to licensed electricians under state electrical safety law. Plug-top rewiring on a flexible cord is similarly restricted in most jurisdictions. Refer to the AS/NZS 3000:2018 Wiring Rules for installation requirements.
Correct Wiring and Termination Practices

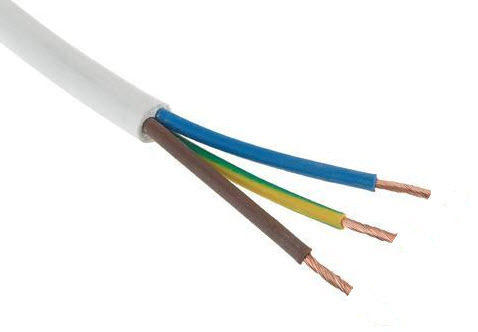

Strip conductor insulation to the length specified by the terminal, twist multi-strand cores to keep loose strands contained, and tighten screws to specification. Active goes to the L terminal, neutral to N, earth to E. Verify polarity with a tester before energising.
Inspection and Replacement Guidelines
Visual inspection covers most faults: discolouration on the plug face, loose cord grip, cracked housing, or burnt smell all indicate replacement is due. Test and tag programs in commercial settings drive scheduled inspection of leads and plug tops, typically every three to twelve months depending on environment.
Preventative Maintenance for Longevity
Keep the contact area clean and dry. Avoid yanking on the cord to disconnect (always grip the plug body). Replace any plug or socket that shows signs of heat damage immediately, and check that cord clamps remain tight on flexible-cord assemblies.
Long-Term Performance Considerations
Matching Product to Load and Usage Frequency
A socket cycled twice a day for fifteen years sees over 10,000 insertions. Trade grade products are designed for that life; consumer-grade alternatives are not. Match contact quality to the duty cycle, not just the current rating.
Selecting for Environmental Conditions
Salt air degrades unprotected metal. UV exposure embrittles standard plastics. Coastal, marine, and outdoor sites benefit from sealed IP66 assemblies in UV-stable housings.
Balancing Cost vs Durability
| Tier | Typical Use | Lifespan Indicator |
|---|---|---|
| Domestic basic | Light residential use | 10,000+ insertions on 10A |
| Trade rewireable | Service work, lead repair | Designed for repeated rewiring |
| Heavy duty | Workshop, commercial | Reinforced for daily cycling |
| Industrial IP66 | Plant, outdoor, harsh sites | Sealed, UV stable, corrosion resistant |
Buying Plug Tops and Sockets in Australia
Where to Buy Online
Trade-focused suppliers stock the full range of compliant plug tops and sockets without the guesswork. Sparky Direct ships nationally from Australian stock, with inventory across male 3 pin plug tops, female extension sockets, suspension types, and the full industrial range.
Cheap vs Trade-Grade Options
Cheap imported plugs may pass inspection on day one but fail under repeated cycling. Trade grade products from established brands cost more upfront and recover the difference through service life and reduced callback rates.
What to Look for Before Buying
Pre-purchase checklist
Confirm the current rating matches the load. Verify the IP rating suits the environment. Check that the plug pattern matches the existing socket configuration. Look for the RCM compliance mark. Choose rewireable for service work, moulded for new appliance leads.
Common Mistakes to Avoid
Using Incorrect Ratings
Substituting a 10A plug onto a 15A appliance lead is the most common error, often committed during DIY repairs. The appliance protection circuit no longer matches the supply protection, and the plug runs hot under load.
Poor Installation Practices
Loose terminal screws, untrimmed conductor strands, missing cord clamps, and reversed polarity all stem from rushed installation. Each one creates a long-term reliability problem.
Using Indoor Products in Outdoor Environments
An IP20 outlet under an eave will work for years until the day rain blows in sideways. Outdoor and exposed-area work requires IP66 enclosures from the outset, not weatherproofing added later with silicone.
Troubleshooting Common Issues
Loose or Intermittent Connections
If a plugged-in appliance flickers or cuts out when the cord is moved, the contact spring inside the socket has fatigued or the plug pins are worn. Replace the worn component (usually the socket, sometimes the plug) rather than attempting to bend pins or contacts back into shape.
Overheating or Discolouration
Brown staining around the pin entry holes signals sustained overload or a high-resistance joint. Disconnect the load, isolate the circuit, and replace the affected outlet. If multiple outlets on one circuit show the same symptom, a wiring inspection is warranted.
Faulty or Worn Components
Cracked plug bodies, exposed conductors at the cord entry, missing earth pins, and broken switch mechanisms all warrant immediate replacement. Tape and patch repairs do not return the assembly to a compliant state.
Tradies Join Club Clipsal with Sparky Direct
Club Clipsal is Australia's largest electrician community offering trade rewards, business support, and exclusive benefits. When you nominate Sparky Direct as your preferred wholesaler, we automatically apply your Clipsal spend points to your Club Clipsal account daily.
Four Membership Tiers
Entry-level offering coaching, mentoring, and training discounts
Unlock exclusive industry tools and networking events
Access Toyota fleet offers and business software discounts
Maximum benefits, including VIP experiences and rewards
How It Works
1. Sign Up: Create your Club Clipsal account at clipsal.com/club-clipsal or via the iCat mobile app
2. Nominate Sparky Direct: Select Sparky Direct from the wholesaler dropdown menu in your profile
3. Add Email: Enter your Sparky Direct account email address in the membership number field
4. Start Earning: Every dollar spent on Clipsal products earns points automatically
Exclusive Benefits
Redeem points from the rewards store, including gift cards, tools, and experiences. Access business summits, product training, and industry networking events. Receive early access to new product launches and special promotions. Connect with fellow electricians via the Club Clipsal community app.
Product Videos
Watch CLIPSAL 1439/20TR | 3 Pin 20Amp PlugTop (Transparent) video
Watch 3 Pin 15Amp Extension Socket (Transparent) | 30409 video
Watch 3 Pin 15Amp PlugTop (Transparent) | 30408 video
What Sparky Direct Customers Say
I've recently been coming across some appliances fitted with 20A plugs in my ventures of testing and tagging - namely some wielders, cookers and commercial drying machines. Instead of coming up with a converter solution, this 20A extension socket allows the appliances to plug directly into a 15A outlet. Sparky Direct were the only place I could find that stocked this item. Quality product at a great price.
I have been using Sparky Direct for a while and recently purchased some 15Amp HD Plugs. The price and quality of the product was good, no complaints there. This has been the case with all the transactions I have had with these guys. Friendly staff, quick turnaround and quality products at a great price.
Very easy to mount for exhaust fans and not taking short cuts with cutting without cutting wiring or plugs off exhaust fan. Make it easy to take down exhaust where customer is complaining about exhaust fan. Quality build, fits the standard back box without fuss.
- Plug tops and sockets connect portable equipment to a fixed supply through deliberately matched pin and contact configurations.
- Standard domestic use is 10A flat-pin to AS/NZS 3112; heavy duty 15A and 20A serve workshops; round-pin industrial assemblies handle higher current and three-phase loads.
- Outdoor and washdown environments require IP66 rated assemblies, not indoor outlets retrofitted with weather seals.
- Match current rating to load with margin, choose IP class for environment, and prefer trade grade products for high-cycle applications.
- Replace plug tops and sockets at the first sign of discolouration, looseness, or heat damage. Patch repairs do not restore compliance.
- Fixed wiring of outlets and rewiring of plug tops is licensed work in Australia under AS/NZS 3000:2018.
