What Are Air Conditioning Fittings and Why Do They Matter?
Table of Contents
- Understanding Air Conditioning Fittings
- Types of Air Conditioning Fittings and Their Functions
- Refrigerant Compatibility and Pressure Requirements
- Materials Used in AC Fittings
- Sizing, Thread Types and Connection Standards
- Choosing the Right AC Fittings
- Installation Requirements and Best Practices
- Compliance and Australian Standards
- Performance, Reliability and Troubleshooting
- Pricing, Value and Buying Considerations
- Practical Buying Guidance for HVAC Professionals
- Product Videos
- What Sparky Direct Customers Say
- Quick Summary (TL;DR)
- Frequently Asked Questions about Air Conditioning Fittings
Understanding Air Conditioning Fittings
What Are Air Conditioning Fittings?
Air conditioning fittings are the connectors that seal and carry refrigerant between the indoor and outdoor units of a cooling system. They bridge copper pipework, service valves, gauge ports, and expansion devices under pressures that regularly exceed 3000 kPa on modern refrigerant charges. Every joint in a system is a potential leak point, so fittings are rated for specific refrigerants, temperatures, and mechanical loads.
How AC Fittings Work in Split and HVAC Systems
In a split system, fittings appear at both ends of the pair coil that links the outdoor condenser to the indoor head unit. Flare fittings connect at the service valves on the outdoor unit and again at the coupling points on the indoor unit. Schrader-style access ports allow technicians to connect manifold gauges for pressure testing, evacuation, and refrigerant charging. Larger HVAC and ducted systems add brazed joints at line-set junctions, distributor manifolds, and at the expansion valve inlet. Sparky Direct also stocks specialist pair coil fittings for coupling, joining, and terminating refrigerant lines.
The Role of Fittings in System Performance
A correctly selected and installed fitting holds refrigerant at full pressure with zero leakage over the design life of the system. A poor fitting loses charge slowly, reducing cooling capacity and forcing the compressor to work harder. Over time this increases energy costs, shortens compressor life, and eventually triggers a low-charge cutout. Fitting quality is therefore a direct driver of system efficiency and reliability.
AC Fittings vs Standard Plumbing Connectors
Plumbing fittings handle water at relatively low pressures, usually under 1000 kPa, at ambient temperatures. AC fittings must handle refrigerant gas and liquid at pressures up to 4800 kPa for R-410A systems, across operating temperatures that swing from below zero to well over 60°C. Sealing methods, wall thicknesses, thread profiles, and material specifications all differ. Never substitute plumbing fittings into a refrigeration circuit.
Types of Air Conditioning Fittings and Their Functions
Flare Fittings (Residential Standard)
Flare fittings are the most common connection method in Australian residential split systems. A 45° cone is formed on the end of soft copper tube, then clamped between a male flare nut and a female flare union. The metal-to-metal seal holds refrigerant pressure without gaskets or thread tape. Flare fittings allow the joint to be disconnected for service, which is why they appear at the outdoor unit service valves on almost every domestic installation.
Compression Fittings and When They Are Used
Compression fittings use a brass ferrule that deforms against the copper tube as the nut is tightened. They suit specific low-pressure applications, such as drain line connections and some secondary sensor lines. Compression fittings are not rated for the primary refrigerant circuit on modern high-pressure systems and must never be used as a substitute for flare or brazed connections on the refrigerant side.
Brazed and Soldered Fittings (Permanent Joints)
Brazed joints are formed by heating the copper fitting and tube until silver-based alloy flows into the gap between them, creating a permanent metallurgical bond. These joints are standard on commercial and ducted installations, along with any run that cannot be disconnected for service. Correct brazing requires nitrogen purging to prevent copper oxide scale forming inside the tube, which can later dislodge and damage the compressor.
Push-to-Connect and Quick-Connect Fittings
Push-to-connect fittings use an internal O-ring and retention collet to seal the tube without flaring or brazing. Quick-connect couplings appear on pre-charged line sets for some factory-supplied kits. Both types reduce installation time, but they carry stricter cleanliness and preparation requirements. Always check the manufacturer pressure rating and confirm A2L compatibility before using either type on newer refrigerants.
Refrigerant Compatibility and Pressure Requirements
R-410A Fittings and High-Pressure Systems
R-410A operates at significantly higher pressures than the older R-22 refrigerant it replaced. Working pressures commonly reach 2700 kPa on the low side and 4000 kPa on the high side, with burst ratings required well above that. Fittings for R-410A systems use heavier-walled copper and flare nuts rated to the higher pressure. Sparky Direct stocks pair coil copper rated for both R-410A and R-32.
R-32 Fittings and A2L Safety Considerations
R-32 is an A2L class refrigerant, which means it is mildly flammable. The operating pressures are similar to R-410A, so existing flare fittings generally suit the pressure envelope. The flammability classification introduces additional requirements around brazing procedures, leak detection, and minimum room volumes for charge size. Installers must hold current A2L training and follow the manufacturer installation manual for minimum indoor area calculations.
Legacy R-22 Systems and Retrofit Challenges
R-22 has been phased out under Australian and international ozone protection rules. Older systems still need servicing, and compatible fittings remain available for recovery and repair work. Retrofitting an R-22 system to a modern refrigerant is rarely economical: the oil type, pressure rating of components, and TXV sizing all differ. In most cases a full system replacement delivers better long-term value than retrofit.
Why Compatibility Must Be Verified
Fittings carry markings that indicate pressure rating, refrigerant compatibility, and material grade. Mixing a low-pressure fitting into a high-pressure circuit is a failure waiting to happen. Before installation, check the fitting specification against the system refrigerant, confirm the pressure rating meets or exceeds the design maximum, and verify the material is compatible with any POE or PVE lubricant in the system.
Materials Used in AC Fittings
Copper Fittings and ACR Standards
Air Conditioning and Refrigeration (ACR) grade copper is the industry standard for refrigerant pipework and fittings. ACR copper is sealed, deoxidised, and supplied with a dry nitrogen charge to keep the internal surface free of moisture and oxide. Standard Type L plumbing copper does not meet ACR cleanliness requirements and should not be substituted. Always use ACR-grade pair coil copper for refrigerant lines.
Brass Fittings and Valve Components
Brass is used for flare nuts, unions, and valve bodies because it machines cleanly, resists corrosion, and seals reliably against copper. The brass alloys used in HVAC work are selected for compatibility with refrigerants and lubricants. Generic brass plumbing components can contain lead or zinc fractions that attack the copper pipe wall over time, so always buy from refrigeration trade suppliers.
Stainless Steel and Specialty Alloy Fittings
Stainless steel fittings appear on industrial refrigeration, CO2 systems, and some marine installations where salt air corrosion is severe. They carry higher pressure ratings and resist chloride corrosion, but they cost more and require different brazing techniques. Specialty alloys are rare in Australian domestic work but appear in food cold rooms, transport refrigeration, and industrial process cooling.
Material Selection for Coastal and Harsh Environments
Installations within a few hundred metres of salt water face accelerated corrosion on any exposed fitting. Copper oxidises to green patina but generally holds up well. Brass can suffer dezincification in aggressive conditions. For coastal installations, protect all external joints with UV-stable insulation, seal flare nut faces with approved thread paste, and inspect exterior pipework annually.
Sizing, Thread Types and Connection Standards
SAE vs Metric Threads Explained
Refrigeration flare nuts in Australia follow the SAE 45° standard rather than the 60° metric profile used in some European plumbing. The thread sizes are quoted in imperial fractions: 1/4, 3/8, 1/2, 5/8, and 3/4 inch are the common sizes on domestic split systems. The pair coil itself is manufactured in the same imperial sizes, so an installer matches nut size to tube outside diameter.
Matching Fitting Size to Refrigerant Lines
The system manufacturer specifies the required liquid and suction line sizes for each capacity range. For most residential splits this is 1/4 inch liquid and 3/8 inch or 1/2 inch suction. Upsizing or downsizing from the specification changes refrigerant velocity, oil return, and capacity. Always match the fitting size to the manufacturer data sheet, not to what is convenient or what was fitted to the old system.
Pressure Ratings and Bore Diameter
Fitting pressure ratings are stamped or embossed on the body. Residential R-410A and R-32 fittings should carry a minimum rating suitable for the high-side design pressure plus a safety margin. Bore diameter affects flow and pressure drop: an undersized fitting in a long line set reduces capacity even when the tube size is correct. Match both the nominal size and the full bore specification.
Torque Specifications for Flare Connections
Every manufacturer publishes torque values for their flare nuts. Under-torquing leaves a leak path. Over-torquing cracks the flare face or strips the thread. A calibrated torque wrench is essential: spanner-tight is not an acceptable substitute. Sparky Direct stocks air conditioner installation kits that include properly calibrated flare torque wrenches.
| Flare Nut Size | Typical Torque | Common Application |
|---|---|---|
| 1/4 inch | 14 to 18 Nm | Liquid line on most domestic splits |
| 3/8 inch | 33 to 42 Nm | Suction line up to about 5 kW |
| 1/2 inch | 50 to 62 Nm | Suction line 5 kW to 7 kW |
| 5/8 inch | 63 to 77 Nm | Suction line on larger residential and light commercial |
Always confirm the exact torque value in the manufacturer installation manual for the specific unit being installed.
Choosing the Right AC Fittings
Residential vs Commercial System Requirements
Residential splits up to about 10 kW use standard SAE flare fittings in 1/4, 3/8, 1/2, and 5/8 inch sizes. Commercial ducted, VRF, and cassette systems often step up to 3/4 inch and larger, with brazed joints at trunk runs. Light commercial and cassette air conditioner installations may mix both approaches depending on access and service requirements.
Indoor vs Outdoor Application Considerations
Indoor fittings sit inside the conditioned space or inside a ceiling void. They face stable temperatures but may be inaccessible for future service. Outdoor fittings face UV, rain, and temperature extremes, so external insulation must be UV rated and joints must be sealed against water ingress. The choice of fitting type and protection method should reflect where the joint will live for the next 15 to 20 years.
OEM vs Aftermarket Fittings
OEM fittings supplied with the split system kit match the manufacturer torque specification and warranty requirements exactly. Aftermarket fittings from reputable refrigeration brands meet the same standards and often cost less. The key is buying from a trade supplier that stocks genuine refrigeration-grade product, not generic brass fittings from a plumbing aisle.
Key Selection Criteria for Installers
When selecting fittings, check five items: refrigerant compatibility, pressure rating, size match to the line set, thread standard (SAE for Australian residential), and material grade. A fitting that fails any of these checks is a liability regardless of price. Buy from suppliers that publish specifications clearly and carry the brands that your installation manuals call for.
Installation Requirements and Best Practices
Preparing Copper Tube Ends Correctly
A clean, square cut is the foundation of a sealed joint. Use a tube cutter, not a hacksaw. Deburr the inside and outside edges with a reamer. Keep swarf out of the tube by pointing the open end downward during deburring. Wipe the outside of the tube clean before flaring or brazing. Any contamination in the joint area becomes a leak path or a contaminant in the refrigerant system.
Correct Flare and Torque Application
Use a proper flare block and yoke sized for the tube. The flare face should be smooth, square, and free of cracks or tool marks. Apply a thin film of refrigeration oil to the flare face before joining. Tighten the nut to the manufacturer torque value using a calibrated wrench. Resist the temptation to over-tighten in the belief that more is better.
Nitrogen Purging During Brazing
When brazing refrigeration copper, flow low-pressure nitrogen through the tube to displace oxygen. Without nitrogen, the inside of the tube oxidises during heating, forming black copper oxide scale. That scale later breaks loose, migrates through the system, and can damage the compressor or block the expansion valve. Nitrogen purging is non-negotiable on any brazed refrigeration joint.
Leak Testing and Commissioning
After assembly, pressure test the system with dry nitrogen to the manufacturer specification, typically 4000 kPa or higher for R-410A and R-32 systems. Hold pressure for the specified duration and check for any drop. Follow with a deep vacuum evacuation using a vacuum pump to remove air and moisture. Only then release the factory refrigerant charge.
A2L Refrigerant Warning: R-32 and other A2L refrigerants are mildly flammable. Never braze in the presence of refrigerant. Always recover the charge, purge with nitrogen, and verify the work area before applying heat.
Compliance and Australian Standards
AS/NZS 1677 and AS/NZS 5149 Overview
AS/NZS 1677 covers refrigerating systems and is the umbrella standard for Australian refrigeration work. AS/NZS 5149 provides detailed safety and environmental requirements for refrigerating systems and heat pumps. Together they set the design, installation, testing, and marking requirements for fittings used in refrigerant circuits. Licensed installers work to these standards as a minimum.
ARCtick Licensing Requirements
Anyone handling refrigerant in Australia must hold a current ARCtick Refrigerant Handling Licence. This is a federal requirement under the Ozone Protection and Synthetic Greenhouse Gas Management Regulations. The licence covers recovery, reclaim, and charging of controlled refrigerants. Unlicensed handling is both illegal and carries substantial penalties.
Refrigerant Handling Regulations
Federal regulations govern the recovery, storage, transport, and disposal of synthetic refrigerants. Venting refrigerant to atmosphere is prohibited. Installers must use approved recovery equipment, store recovered refrigerant in labelled ARCtick-approved cylinders, and deliver it to an authorised reclaim facility. Keep documentation of every recovery and charge for compliance records.
Evolving Standards for A2L Refrigerants
Standards for A2L refrigerants continue to develop as the technology matures. Recent updates to AS/NZS 5149 address minimum room volumes, leak detection, and electrical safety requirements for flammable refrigerant installations. Check the current edition of the relevant standard before every job, as amendments are issued regularly.
Performance, Reliability and Troubleshooting
Common Causes of Fitting Failure
The most common fitting failures are: under-torqued flare nuts, cracked flare faces from over-torquing, contaminated flares from poor preparation, corroded brass in coastal installations, and vibration fatigue on rigid pipework without proper clamping. A disciplined installation routine prevents almost all of these failures.
Preventing Refrigerant Leaks
Prevention starts with correct material selection, continues with disciplined preparation, and ends with methodical testing. Use the specified fitting for the refrigerant. Prepare the tube cleanly. Apply the correct torque with a calibrated wrench. Pressure test to specification. Evacuate to the required vacuum before charging. Skip any step and the leak risk rises sharply.
Inspection Checklist
- Flare face smooth and free of cracks
- Flare nut aligned square to the union
- No contamination on sealing surfaces
- Torque applied with calibrated wrench
- Witness mark confirms final position
Leak Detection Methods
- Electronic refrigerant leak detector
- Soap solution on suspect joints
- Nitrogen pressure decay test
- UV dye for persistent slow leaks
- Vacuum hold test before charging
Diagnosing System Performance Issues
When a system underperforms after service, fittings are an early suspect. Check for oil staining at flare joints, which often indicates a weeping leak. Measure subcooling and superheat against manufacturer values. A low charge shows as high superheat and low subcooling. Before condemning the compressor or expansion device, verify every fitting is sealed and the charge is correct.
Service and Maintenance Considerations
Flare joints can be disconnected and remade for service, but only a limited number of times. The flare face work-hardens with each reassembly. On the third or fourth remake, cut off the old flare, reform a fresh one, and discard the old flare nut. Always inspect the sealing surfaces before reassembly and replace any fitting that shows damage.
Pricing, Value and Buying Considerations
AC Fittings Prices in Australia
Individual flare nuts and unions typically cost a few dollars each, with larger sizes and specialist fittings commanding higher prices. Bulk packs for installation businesses offer significant per-unit savings. Specialist items such as A2L-rated service valves, bulkhead fittings, and brass manifolds sit in a higher price bracket but remain a small line item compared to the equipment cost.
Affordable Split System Fitting Kits
Complete air conditioner installation kits bundle the fittings, flare tools, torque wrenches, and consumables needed for a typical split system job. Kits represent good value for installers building a tool set or replacing lost items, and they guarantee compatibility across the included components.
Bulk Purchasing vs Individual Components
Volume installers save substantially by ordering flare nuts, unions, and service valves in trade-pack quantities. Individual components suit jobbing installers, service technicians, and the occasional specialist repair. Most Sparky Direct product pages list both single-buy and multi-pack options, so choose the quantity that fits the workflow.
Trade Suppliers vs Retail Channels
Refrigeration-grade fittings are a trade product. Retail hardware outlets occasionally stock generic brass fittings that look similar but lack the pressure rating and refrigerant compatibility markings. Trade suppliers carry the full specification, provide technical data sheets, and stock the brands that match the major equipment manufacturers. The price difference is usually small, and the reliability difference is substantial.
Fast Delivery and Availability
Sparky Direct ships fittings Australia-wide from stock, with metro orders typically arriving within a few business days. Bulk stock of the common sizes means repeat orders and large projects are generally fulfilled without backorder delays. For urgent jobs, pickup from the warehouse is available on local orders.
Practical Buying Guidance for HVAC Professionals
Matching Fittings to System Specifications
The installation manual is the single source of truth for fitting specifications on any given system. It lists the required line sizes, flare torque values, and any manufacturer-specific requirements for service ports or valve bodies. Read the manual before ordering parts, not after. A five-minute check at the quoting stage prevents return trips and rework.
Common Buyer Mistakes to Avoid
Three mistakes come up repeatedly: ordering plumbing-grade fittings that lack refrigeration rating, mismatching pair coil size to the indoor unit service valves, and failing to stock enough spare flare nuts for second-pass remakes on site. Keep a small buffer of the common sizes in the van, and always confirm the tube specification before cutting to length.
Planning for Installation and Compliance

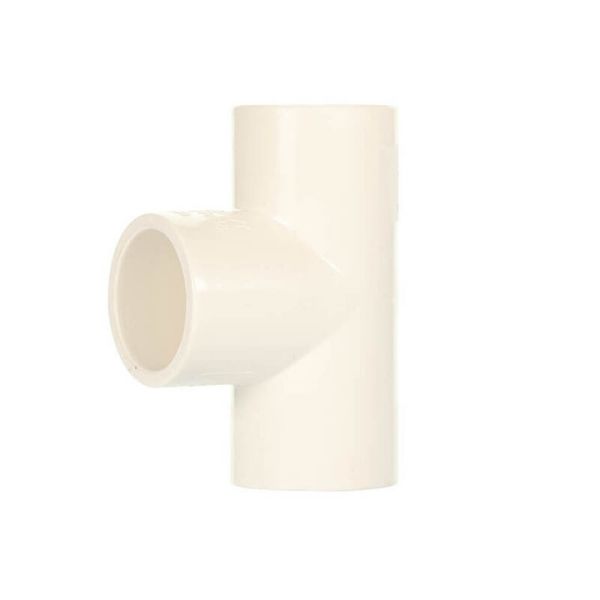

A tidy install starts with a parts list built from the installation manual. Add the fittings, pair coil, insulation tape, condensate drain components, and air conditioner wall brackets at the quoting stage. Book ARCtick-compliant recovery equipment into the job schedule. Plan the pressure test, evacuation, and commissioning steps into the job timeline, not as an afterthought.
Where to Buy Air Conditioning Fittings Online
Sparky Direct stocks a comprehensive range of refrigeration fittings, copper pipe benders, vacuum pumps, and air conditioning accessories alongside complete split system units from Daikin, Fujitsu, Mitsubishi Electric, Haier, and Rinnai. Trade accounts receive pricing that reflects Sparky Direct's position as a wholesaler since 2005.
Quick Trade Tip
Keep a flare inspection routine: after every flare form, check the face against a clean reference under a bright light. A cracked or off-square flare will never seal correctly, and a 30-second inspection saves an hour of return service work.
