        Description

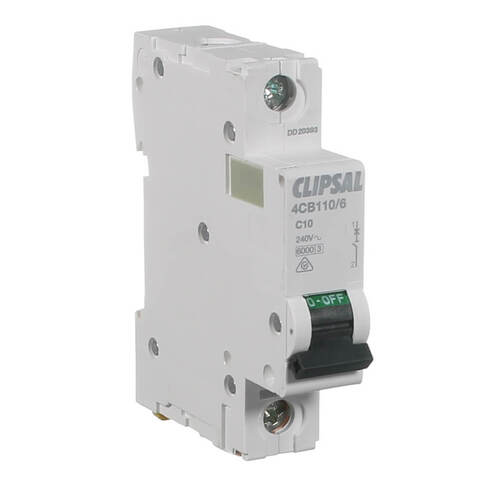

        CLIPSAL 4CB110/6 | 10amp Single Pole 6kA Circuit Breaker C Curve

        The Clipsal 4CB110/6 10 amp has a 6kA breaking capacity making them ideal for commercial and industrial applications.

        The Clipsal 4 series range of circuit protection comes with everything you need for your residential, commercial or industrial switchboard requirements. Included are mcbs, rcds, mcb/rcd combinations, isolating switches, change over switches and busbar systems.

        Features:

        • 10Amp
        • Single Pole
        • 6KA
        • Circuit Breaker
        • Unique new white finish for a fresh modern look.
        • Compact standardised and consistent module dimensions.
        • Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in.
        • Cable automatically guided to the correct position: terminals with guard. Fast closure.
        • The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety.
        • Same housing as AC type MCBs.
        • Uniformity in space requirements and installation.
        • Superior, safe and reliable DC breaking per pole.
        • Used with marine, telecommunications, solar power, emergency power, battery power. Excellent breaking capability for its compact size.
        • 18 mm modular spacing.

        This product has been replaced with

        (4CB110-6)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 4CB110-6
        Barcode # 9318795012759
        Shipping Weight 0.1020kg
        Shipping Width 0.071m
        Shipping Height 0.018m
        Shipping Length 0.082m
        Shipping Cubic 0.000105000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 10
        Height (mm) 81
        Width (mm) 18
        Standards AS/NZS 60898
        Mounting Din Rail
        Voltage (V) 240V
        Number of Poles 1
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Curve C
