    Video

    Learn more by watching our CLIPSAL 4CB125-6 | 25amp Single Pole 6kA Circuit Breaker C Curve video.

    Description

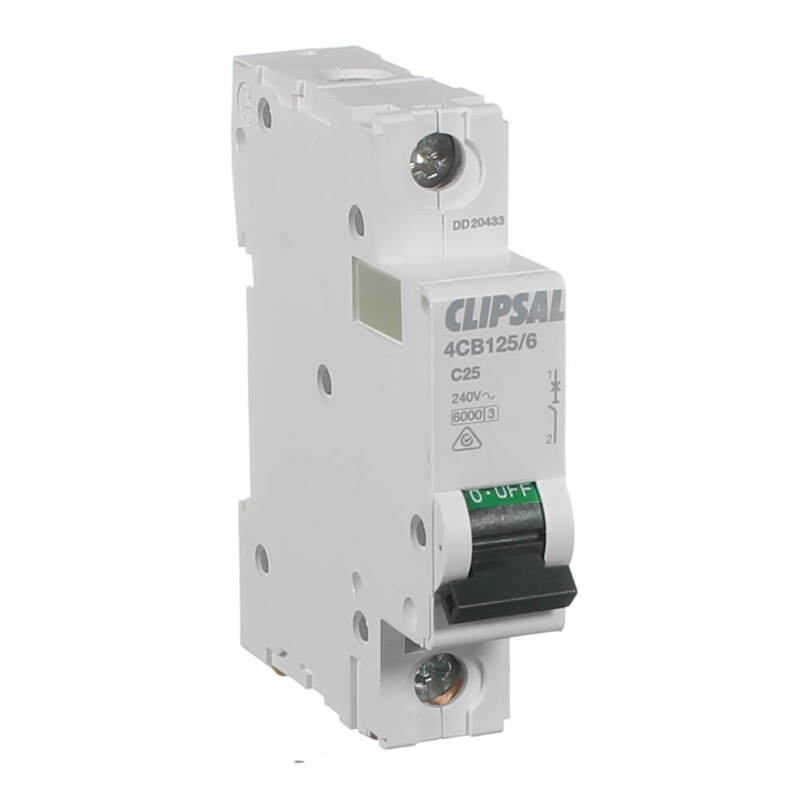

    CLIPSAL 4CB125-6 | 25amp Single Pole 6kA Circuit Breaker C Curve

    Clearance 10 Left

    The Clipsal 4CB125/6 25 amp has a 6kA breaking capacity making them ideal for commercial and industrial applications.

    The Clipsal 4 series range of circuit protection comes with everything you need for your residential, commercial or industrial switchboard requirements. Included are mcbs, rcds, mcb/rcd combinations, isolating switches, change over switches and busbar systems.

    Features:

    • Unique new white finish for a fresh modern look. Base module = 18 mm wide.
    • Compact standardised and consistent module dimensions.
    • Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in.
    • Cable automatically guided to the correct position: terminals with guard. Fast closure.
    • The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety.
    • Same housing as AC type MCBs.
    • Uniformity in space requirements and installation.
    • Superior, safe and reliable DC breaking per pole.
    • Used with marine, telecommunications, solar power, emergency power, battery power. Excellent breaking capability for its compact size.
    • 18 mm modular spacing.

    (4CB125-6)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Clipsal in home warranty

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU 4CB125-6
    Barcode # 9318795004525
    Package Weight 0.108kg
    Package Width 0.084m
    Package Height 0.018m
    Package Length 0.072m
    TYPE VALUE
    Type Circuit Protection
    Brand Clipsal by Schneider Electric
    Range Clipsal - Max 4
    Rated Current (A) 25
    Height (mm) 81
    Width (mm) 18
    Depth (mm) 78.5
    Standards AS/NZS 60898
    Mounting Din Rail
    Voltage (V) 240V
    Number of Poles 1
    IP Rating IP20 ( IP40 Enclosed )
    Breaking Capacity 6kA
    Curve C
