Description:

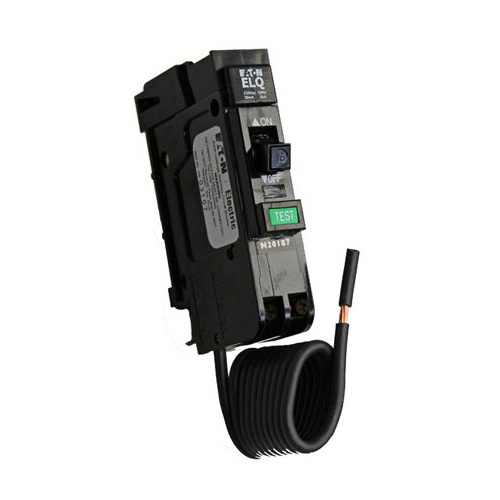

The Eaton ELQ125C3TD Earth Leakage Breaker is a single-pole device designed for commercial applications, providing efficient electrical circuit protection. This product uniquely combines an MCB (Miniature Circuit Breaker) and an RCD (Residual Current Device) within a single unit, streamlining protection against overload and short circuits. With a 950mm permanent connected neutral conductor and a rating breaking capacity of 6kArms, it ensures a reliable safeguard against electrical faults.
Operating at a rated voltage of 240V and a current of 25A, this breaker is engineered to handle surge currents up to 6kA. Its compliance with AS/NZS 3190:2016 and AS/NZS 3111:2009+A1-2, certified by the Australian approval number NSW27675, attests to its quality and safety standards. Designed for DIN Rail mounting, the ELQ125C3TD is an ideal solution for protecting commercial electrical infrastructures.
Features:
FAQ:
Q: What is the rated fault current for the ELQ125C3TD?
A: The ELQ125C3TD is rated for a fault current of 30mA, providing sensitive and prompt reaction to electrical anomalies.
Q: Is the ELQ125C3TD suitable for residential use as well?
A: Primarily designed for commercial settings, its specifications also allow for residential use, offering versatile protection solutions.
Q: How does the ELQ125C3TD's MCB/RCD combination benefit users?
A: This combination offers dual protection in one compact unit, enhancing safety by instantly disconnecting power in case of overload or earth leakage faults.
(ELQ125C3TD)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
| Specification | Details |
|---|---|
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated current | 25 A |
| Rated fault current | 30 |
| Surge current capacity | 6 kA |
| Voltage type | AC |
| Mounting method | DIN Rail |
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Eaton |
| SKU | ELQ125C3TD |
| Barcode # | 9321289227102 |
