        Description

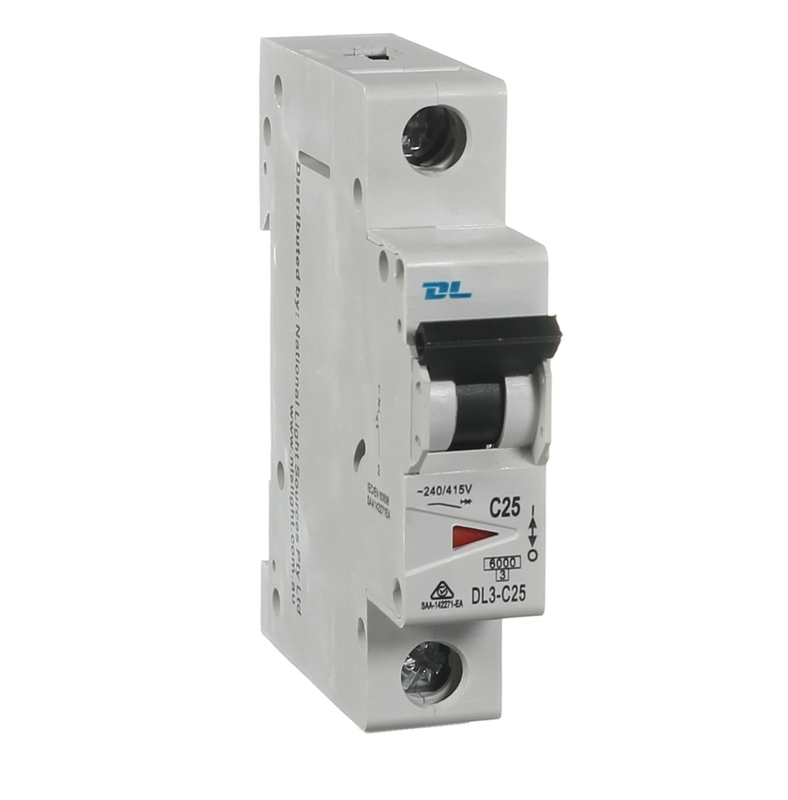

        NLS 30439 | 25 amp Single Pole 6kA Circuit Breaker | DL

        The NLS 30439 25 amp circuit breaker is part of the DL range - Protects against both overload and short circuit. 6ka Rating makes this circuit breaker applicable to residential and commercial installations. Large connection capacity up to 25mm²

        Features:

        • 25Amp
        • Single Pole
        • 6kA
        • Circuit breaker
        • Protection against both overload and short circuit
        • High short-circuit capacity
        • Contact position indication
        • Applicable to terminal and pin/fork type busbar connection
        • Easy mounting onto 35mm DIN rail
        • Tripping curve: C
        • Rated frequency: 50/60Hz
        • Energy limiting class: 3
        • Rated impulse withstand voltage: 6.2kV
        • Contact position indication
        • Connection terminal:
        • Screw terminal
        • Pillar terminal with clamp
        • Connection capacity: Rigid conductor up to 25mm2
        • Fastening torque: 2.0Nm

        (30439NLS)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30439NLS
        Barcode # 9336700009540
        Shipping Weight 0.0990kg
        Shipping Width 0.070m
        Shipping Height 0.020m
        Shipping Length 0.080m
        Shipping Cubic 0.000112000m3
        TYPE VALUE
        Type Circuit Protection
        Brand National Light Sources
        Range DL
        Rated Current (A) 25
        Height (mm) 81
        Width (mm) 18
        Depth (mm) 78.5
        Standards AS/NZS 60898-1
        Mounting Din Rail
        Voltage (V) 240V
        Number of Poles 1
        Breaking Capacity 6kA
        Curve C
