    Description

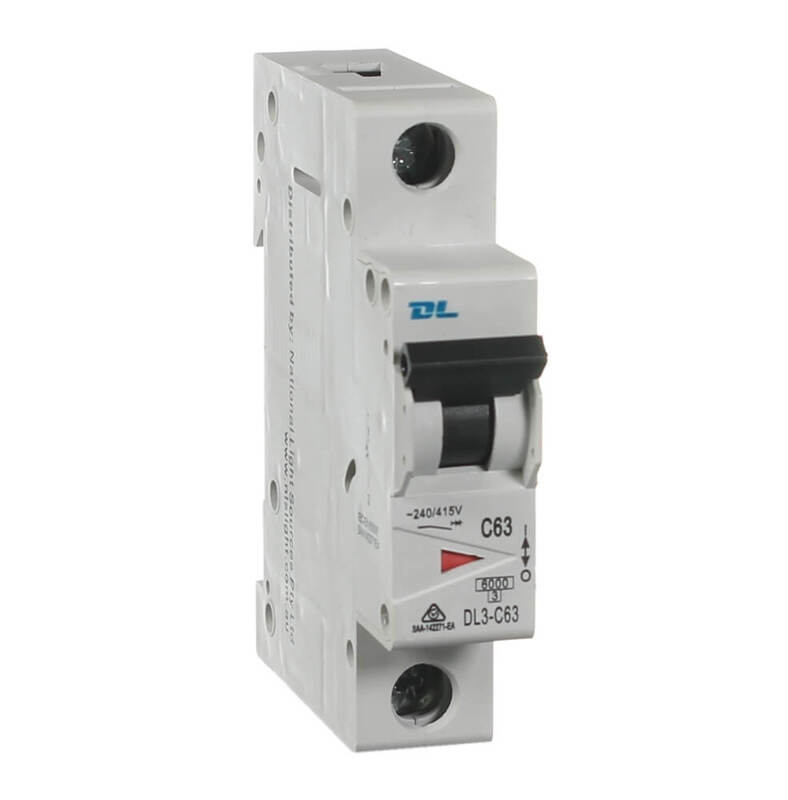

    NLS 30443 | 63 amp Single Pole 6kA Circuit Breaker | DL

    The NLS 30443 63 amp circuit breaker is part of the DL range - Protects against both overload and short circuit. 6ka Rating makes this circuit breaker applicable to residential and commercial installations. Large connection capacity up to 25mm²

    Features:

    • 63Amp
    • Single Pole
    • 6kA
    • Circuit breaker
    • Protection against both overload and short circuit
    • High short-circuit capacity
    • Contact position indication
    • Applicable to terminal and pin/fork type busbar connection
    • Easy mounting onto 35mm DIN rail
    • Tripping curve: C
    • Rated frequency: 50/60Hz
    • Energy limiting class: 3
    • Rated impulse withstand voltage: 6.2kV
    • Contact position indication
    • Connection terminal:
    • Screw terminal
    • Pillar terminal with clamp
    • Connection capacity: Rigid conductor up to 25mm2
    • Fastening torque: 2.0Nm

    (30443NLS)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Return to Sparky Direct

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand NATIONAL LIGHT SOURCES
    SKU 30443NLS
    Barcode # 9336700009588
    Package Weight 0.106kg
    Package Width 0.070m
    Package Height 0.020m
    Package Length 0.080m
    TYPE VALUE
    Type Circuit Protection
    Brand National Light Sources
    Range DL
    Rated Current (A) 63
    Height (mm) 81
    Width (mm) 18
    Depth (mm) 78.5
    Standards AS/NZS 60898-1
    Mounting Din Rail
    Voltage (V) 240V
    Number of Poles 1
    Breaking Capacity 6kA
    Curve C
