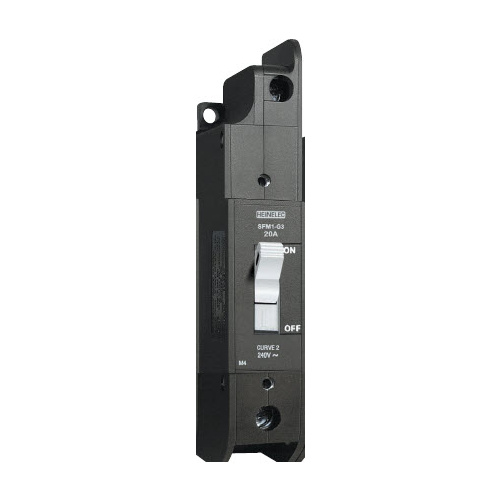

        Heinemann SFM1-G3-32-2 | 32A 1P Circuit Breaker

        FEATURES

        • AS 3111 approved (Approval No. N15215)
        • Available in single pole units
        • Precision circuit breaker utilizing hydraulic magnetic technology results in accurate temperature independent tripping
        • IP2X “finger proof” line and load box (tunnel) type terminals can accommodate copper cables up to 50mm2
        • Clear positive identification for ON/OFF (I/O) provided
        • Shunt trip provides for remote tripping

        TECHNICAL DATA PRODUCT TYPE: SFM SERIES

        • Number of poles: 1 pole.
        • Standards: AS 3111
        • Approval Number: N15215
        • Standard Ampere Rating: 32
        • Rated Voltage (Un):  1 pole 240V
        • Width 26mm
        • Frequency: 50/60Hz for AC forms
        • Rated Breaking Capacity (kA): 6kA at 415/240V AC
        • Rated Impulse Withstand Voltage (Uimp): 6kV
        • Time Current Characteristics: Curve 2 (Medium)
        • Operating temperature: -10 to +60ºC
        • Storage temperature: -20 to +60ºC
        • Degree of Protection: IP2X terminals
        • Rated Service Life (AC): 6000 electrical operations 4000 mechanical operations
        • Humidity: To Mil-Std-202G Method 103B test condition A
        • Shock: Single pole conforms to 50G shock at 6ms, when tested to Mil-Std-202G Method 213B test condition 1
        • Vibration: Single pole conforms to Mil-Std-202G
        • Method 204D test condition A
        • It also conforms to IEC577, which is applicable to rolling stock Mounting: Surface, cliptray or front screws (M4)
        • Terminal connections: Front connected box (tunnel) type main terminal suitable for up to 50mm2 copper conductors (4Nm torque)
        • Front connected screw type terminal suitable for up to 50mm2 lugs (4Nm torque). Back/Rear connected stud type terminal fitted with M6 studs (2.5Nm torque)
        • Handle colour: White – curve 2/3 circuit breaker AC

        (SFM1-G3-32-2)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Heinemann
        SKU SFM1-G3-32-2
        Barcode # 6009522902735
        Package Weight 0.219kg
        Package Width 0.070m
        Package Height 0.030m
        Package Length 0.150m
        TYPE VALUE
        Type Circuit Protection
        Brand HEINEMANN
        Rated Current (A) 32
        Height (mm) 150
        Width (mm) 18
        Depth (mm) 85
        Mounting Clip Tray
        Voltage (V) 240V
        Number of Poles 1
        Overcurrent trip characteristic Curve 2 (c)
        Breaking Capacity 6kA
