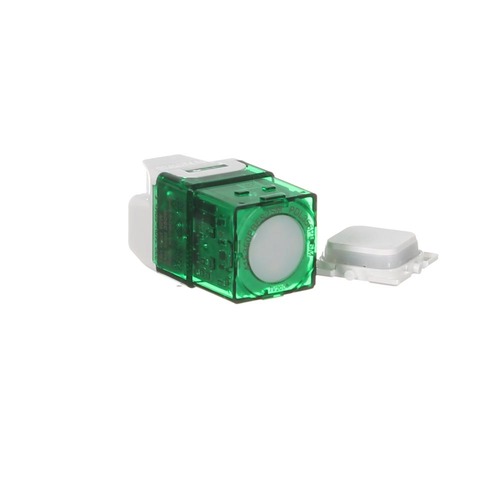

Name: Clipsal Iconic 41E350PBES2SM-VW | Electronic Switch Mechanism, Push Button, 2-Wire, 350W
Brand: Clipsal by Schneider Electric
SKU: 41E350PBES2SM-VW
Price: 116.47 AUD
Availability: OutOfStock

Clipsal Iconic 41E350PBES2SM-VW | Electronic Switch Mechanism, Push Button, 2-Wire, 350W

The pushbutton electronic switch is a 2 wire, 350 W maximum rated device suitable for switching dimmable LED, electronic low voltage lighting transformers, iron core low voltage lighting transformers and incandescent halogen lamps. The tactile pushbutton has been designed to match the pushbutton dimmer with respect to look and feel. A user menu also allows for the customisation of features such as LED indicator behaviour.

The pushbutton electronic switch includes Clipsal’s ControlLink technology that allows multi-way switching over conventional mains wiring. ControlLink also allows multiple units to be connected to control larger individual loads such as chandeliers.

Clipsal’s simple momentary ControlLink switch (Cat No 41EPBM-VW) can be connected so that low-cost multi-way switching can be achieved without the need for expensive secondary switch mechanisms. ControlLink will also operate with conventional electromechanical switches.

The robust design includes over-temperature, over-current as well as short circuit protection.

Features

Soft Tactile feel push button and configurable LED Indicator

ControlLink for multi-way switching

2 wire design, 350W max (dimmable loads only – Not for motors)

Integrally switched

In-built over-current and over-temperature protection

In-built short-circuit protection

Supplied with Vivid White (VW) push button assembly

Additional colour options through optional parts packs

Optimised for controlling Clipsal TPDL series LEDs.

TYPE

VALUE

Type

Switches

Brand

Clipsal by Schneider Electric

Range

Clipsal Iconic

Colour

Vivid White

Protection

Overload, Short Circuit, over temperature

Voltage (V)

220-240V AC

Maximum Load

350 W

Min Load

Min: 10W (use a 31LCDA if required)

Brand	Clipsal by Schneider Electric
SKU	41E350PBES2SM-VW
Barcode #	9311554788223
Shipping Weight	0.0720kg
Shipping Width	0.065m
Shipping Height	0.040m
Shipping Length	0.085m
Shipping Cubic	0.000221000m3
