        Learn more by watching our NLS 30051 | Universal Stud Bracket Flat video.

        Description

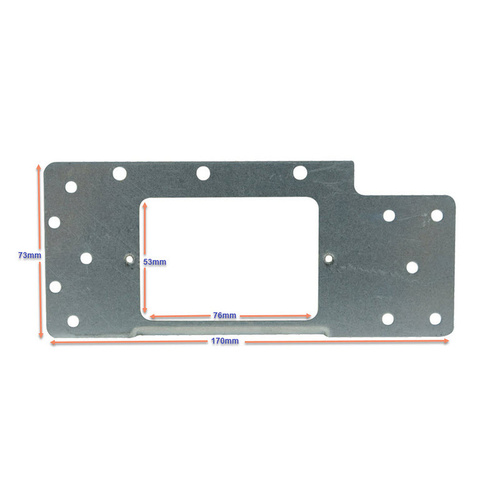

         NLS 30051 | Universal Stud Bracket Flat

        The  NLS 30051 | Universal Stud Bracket Flat without nails makes installation of electrical power points and light switches a breeze. Simply measure the heights of the light switches or power points on the timber stud walls, line up the mark with the center line marked on the bracket to keep them all uniform. Grab some nails or screws and either hammer or screw it so that the bracket is flush to the stud. You are now ready to install the cables, then after the gyprock is installed - cut the hole out, pull the cables out of the center of the bracket hole and install the electrical outlet.

        Features:

        • Metal fixing brackets
        • Metal mounting Horizontally or Vertically to suit plaster and stud walls
        • Re enforced metal construction
        • Fits all brands of electrical outlets
        • 84mm centers
        • Length(mm) 170
        • Height(mm) 73
        • Internal Opening 53mm x 76mm

        (30051)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30051
        Barcode # 9336700002114
        Shipping Weight 0.0610kg
        Shipping Width 0.012m
        Shipping Height 0.080m
        Shipping Length 0.075m
        Shipping Cubic 0.000072000m3
        TYPE VALUE
        Type Electrical Accessories
        Brand National Light Sources
        Height (mm) 73
        Length (mm) 170
        Material Zinc Plated
        Box increments (This item is sold individually) 50
        Reviews
        5.0

        1 Reviews
        5 STARS
        1
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Josh B Electrical

        Great on 6 February 2015

        This is great for renovations where wood paneling was previously used to line the walls and the builder is simply sheeting over the top. A 92mm holesaw where you want a power point or switch, and put this over the hole and you're set.
