        Fantech EDM-200S |125mm Wall / Ceiling Mounted Exhaust Fan
        $202.78 $184.35 ex. GST
        Description

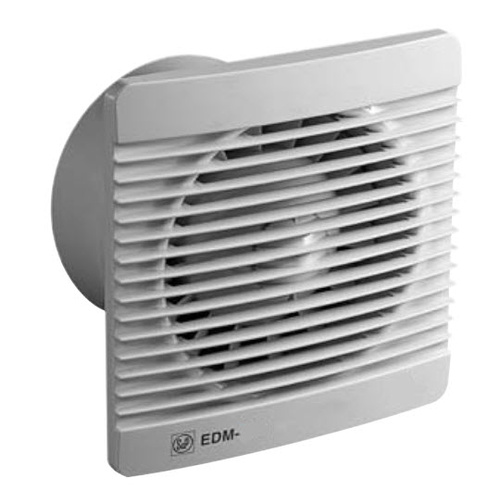

        Fantech EDM-200S |125mm Wall / Ceiling Mounted Exhaust Fan


        The EDM Series can be wall or ceiling mounted and is suitable for exhausting stale and moist air from homes, town houses and commercial buildings.

        Construction

        • All units have weather and impact resistant housings.
        • Motors
        • Type - shaded-pole induction motor.
        • Electricity supply - single-phase 230V, 50Hz
        • Bearings - Ball
        • Maximum ambient temperature - 40°C
        • Class II insulation, IP44 rated*.
        • Grill: 187mm
        • Depth inc Grill and motor housing: 109mm
        • Distance of Motor Housing in wall space: 119mm
        • Depth inside wall space only not inc grill: 62mm
        • Speed: 42 rps
        • Avh DBA @ 3m: 36
        • Input Kwatts: 0.025
        • Amps: 0.13
        • Max Temp: 40 degrees C
        • Approx weight:0.9

        (EDM-200S)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fantech
        SKU EDM-200S
        Barcode # 8413893126689
        Shipping Weight 0.9750kg
        Shipping Width 0.130m
        Shipping Height 0.120m
        Shipping Length 0.200m
        Shipping Cubic 0.003120000m3
        TYPE VALUE
        Type Exhaust Fan
