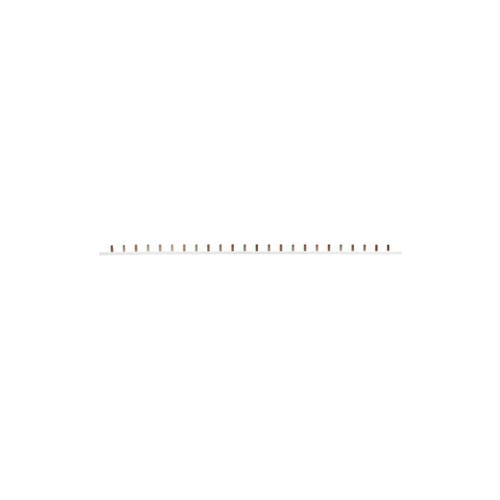

        NLS 30809 | 24 Pole Single Phase Pin Type Insulated Busbar 63A 10mm²

        The NLS 30809 is a 24 pole single phase pin type copper busbar with plastic insulation on the body. It is designed for 1 phase connection. The pin style busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed faster than looping building wire.
        No looping required for active conductors.
        The teeth on the busbar has a 12mm pitch. Quality construction and tested to perform.

        Features:

        • Number of poles: 24 P
        • Single Phase
        • 63A
        • Max operating voltage: 240V
        • Length: 330 mm
        • Connection cross-sect. rigid cable: 10mm²
        • Connector type: Pin Type
        • Type of connection: with screw / quick connect

        (30809)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand NATIONAL LIGHT SOURCES
        SKU 30809
        Package Weight 0.085kg
        Package Width 0.440m
        Package Height 0.015m
        Package Length 0.010m
        TYPE VALUE
        Type Insulated Busbar
        Brand National Light Sources
        Rated Current (A) 63
        Width (mm) 330
        Number of Poles 1P
        Total Number of modules 24
