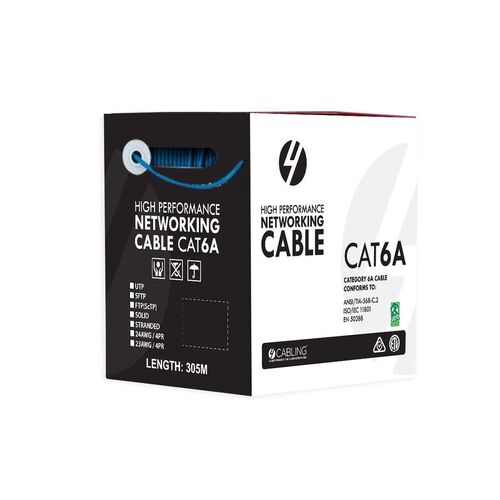

        4Cabling SLDC6AUUTPBLUE | CAT6A U/UTP 23AWGx4P 305MTR | Blue

        Description:

        The 4Cabling SLDC6AUUTPBLUE CAT6A U/UTP Ethernet Cable is an exceptional choice for electricians and network professionals seeking high-performance and reliable data transmission solutions. This high-speed Ethernet cable is designed to meet and exceed rigorous industry standards, making it perfect for demanding applications like data centres, business networks, and sophisticated smart home installations.

        Boasting a sturdy 23AWG gauge construction, this cable guarantees fast and dependable data transfer, ensuring optimal performance in various networking environments. The sleek blue PVC jacket not only adds a professional aesthetic but also enhances the cable's durability, effectively protecting it from external elements and contributing to its long-lasting performance.

        This cable comes supplied on a convenient plastic reel featuring a length of 305 meters, which offers exceptional flexibility for a range of network setups. Whether it's for upgrading residential networks for seamless streaming or creating a robust infrastructure for business applications, the 4Cabling CAT6A U/UTP cable stands out for its unparalleled reliability.

        Features:

        • High-Speed Performance: Ideal for demanding network environments.
        • Durable Construction: Robust 23AWG gauge with a protective blue PVC jacket.
        • Extended Length: 305 meters for versatile installation options.
        • Professional Appearance: Sleek blue color adds a touch of professionalism.
        • Versatile Applications: Suitable for data centres, business networks, and home setups.

        FAQ:

        Q: Is this cable suitable for high-speed internet and data transfer?
        A: Yes, its CAT6A U/UTP design is ideal for high-speed data transmission.

        Q: What is the length of the cable?
        A: It is 305 meters long, offering ample length for various installation needs.

        Q: Is the cable durable for long-term use?
        A: Absolutely, its robust construction and PVC jacket ensure durability and longevity.

        (SLDC6AUUTPBLUE)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Features

        Product Specifications

        Specification Details
        Conductor Construction 23 AWG
        Conductor Material Bare Solid Copper
        Insulation Material HDPE 8303
        Insulation Proportion 0.97 g/cm³
        Insulation Outside Diameter 1.01 ± 0.01mm
        Insulation Average Thickness 0.22mm
        Insulation Colour 1p: blue stripe + white + blue stripe & blue
        2p: orange stripe + white + orange stripe & orange
        3p: green stripe + white + green stripe & green
        4p: brown stripe + white + brown stripe & brown
        Pair Twist Lay & Direction 1p: S=18.5 mm (26%)
        2p: S=15.5 mm (21%)
        3p: S=20.5 mm (30%)
        4p: S=14.0 mm (19%)
        Inner Assemble Lay & Direction S=90 ± 5 mm
        Filler Ripcord 300D
        Filler Cross Member HDPE
        Jacket Material PVC, Rated 60 or 75
        Jacket Hardness 81 ± 3A
        Jacket Outside Diameter 6.0 ± 0.2mm
        Jacket Average Thickness 0.55 ~ 0.60mm
        Jacket Colour Blue


        Transmission Properties

        No. Frequency (MHz) Attenuation (Max)(dB/100m) Propagation Delay(Max)(ns/100m) Propagation Delay Skew(Max)(ns/100m) Return Loss (Min)(dB(on 100m)) NEXT (Min)(dB(on 100m)) PS NEXT (Min)(dB(on 100m)) EL-FEXT (Min)(dB(on 100m)) PS EL-FEXT (Min)(dB(on 100m))
        1 4 3.8 552 45 23.01 66.27 63.27 55.96 52.96
        2 8 5.31 546.73 45 24.52 61.75 58.75 49.94 46.94
        3 10 5.93 545.38 45 25 60.3 57.3 48 45
        4 16 7.49 543 45 25 57.24 54.24 43.92 40.92
        5 20 8.38 542.05 45 25 55.78 52.78 41.98 38.98
        6 25 9.38 541.2 45 24.32 54.33 51.33 40.04 37.04
        7 31.25 10.5 540.44 45 23.64 52.88 49.88 38.1 35.1
        8 50 13.36 539.09 45 22.21 49.82 46.82 34.02 31.02
        9 62.5 14.99 538.55 45 21.54 48.36 45.36 32.08 29.08
        10 100 19.13 537.6 45 20.11 45.3 42.3 28 25
        11 125 21.51 537.22 45 19.43 43.85 40.85 26.06 23.06
        12 200 27.58 536.55 45 18 40.78 37.78 21.98 18.98
        13 250 31.07 536.28 45 17.32 39.33 36.33 20.04 17.04
        14 300 34.27 536.08 45 17.3 38.14 35.14 18.46 15.46
        15 350 37.25 535.92 45 17.3 37.14 34.14 17.12 14.12
        16 400 40.05 535.8 45 17.3 36.27 33.27 15.96 12.96
        17 450 42.71 535.7 45 17.3 35.5 32.5 14.94 11.94
        18 500 45.26 535.61 45 17.3 34.82 31.82 14.02 11.02
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand 4Cabling
        SKU SLDC6AUUTPBLUE
        Barcode # 9358148025937
        Shipping Weight 13.5000kg
        Shipping Width 0.330m
        Shipping Height 0.345m
        Shipping Length 0.280m
        Shipping Cubic 0.031878000m3
        TYPE VALUE
        Type Data Cable
        Brand 4Cabling
        Colour Blue
        Length (mtr) 305
        Data Cable 6A
