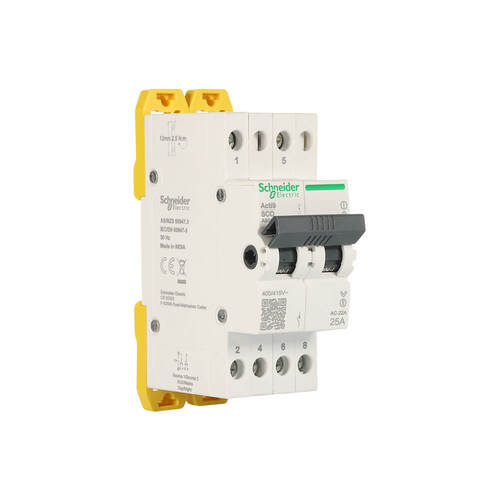

Clipsal A9SCO225 | 25A Changeover Switch Acti9 2P 415VAC
Learn more by watching our Clipsal A9SCO225 | 25A Changeover Switch Acti9 2P 415VAC video.
The Clipsal A9SCO225 25A Changeover Switch is designed for efficient manual switching between two power supplies or circuits. Featuring a 2-pole, 3-position toggle (I-0-II), this switch provides a reliable solution for both industrial and commercial applications.
With a rated operational current of 25A and operating at 400/415VAC, the A9SCO225 offers durability with 7,000 electrical cycles and 10,000 mechanical cycles. The switch mounts easily on a 35mm DIN rail and includes provisions for padlocking to ensure unauthorized access prevention.
Q: What is the rated voltage for this switch?
A: The A9SCO225 is rated for 400/415VAC.
Q: Is the switch compliant with safety standards?
A: Yes, it conforms to IEC/EN 60947-3 and AS/NZS 60947.3 standards.
(A9SCO225)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9SCO225 |
| Barcode # | 3606485810782 |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.045m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000396000m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal |
| Rated Current (A) | 25 |
| Height (mm) | 85 |
| Width (mm) | 26.25 |
| Depth (mm) | 44 |
| Mounting | Din Rail |
| Voltage (V) | 240 |
| Number of Poles | 2 |
| IP Rating | IP20 (IP40 Enclosed) |
| Control Type | Toggle 3 positions |
| Component Type | Changeover Switch |
| Product Name | Acti9 iSSW |
