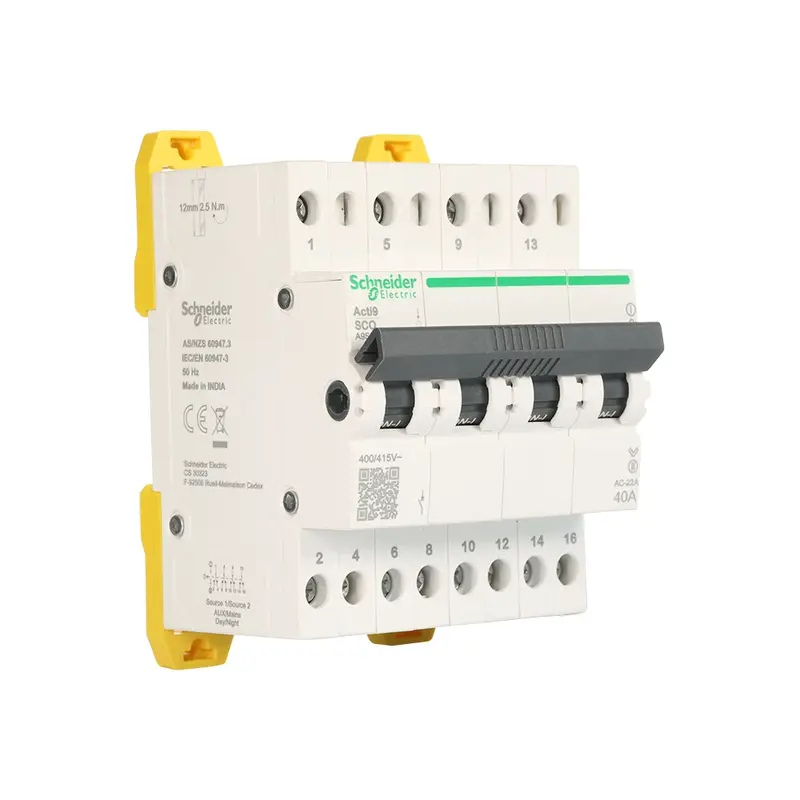

Learn more by watching our Clipsal A9SCO440 | 40A Changeover Switch Acti9 4P 415VAC video.
The Acti9 Changeover Switches provide the perfect solution to switch manually between two power supplies or circuits.
The Acti9 iSSW changeover switch is designed to change power supply sources efficiently.
This 4-pole switch has a rated operational current of 40A and operates at 400/415VAC.
The device is equipped with a toggle control and can be mounted vertically on a 35mm DIN rail.
It offers versatile connectivity with screw terminals supporting flexible and rigid wires. Suitable for both industrial and commercial applications, it ensures reliable performance with an electrical durability of 7000 cycles and mechanical durability of 10000 cycles.
Q: What is the rated operational current of this changeover switch?
A: The rated operational current is 40A.
Q: Can this switch be mounted in any position?
A: Yes, it can be mounted in any position.
Q: What type of terminals does this switch use?
A: It uses screw terminals that support both flexible and rigid wires.
(A9SCO440)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9SCO440 |
| Barcode # | 3606485810812 |
| Shipping Weight | 0.3800kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.085m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.000748000m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal |
| Rated Current (A) | 40 |
| Height (mm) | 85 |
| Width (mm) | 70 |
| Depth (mm) | 44 |
| Mounting | Din Rail |
| Voltage (V) | 415 |
| Number of Poles | 4 |
| IP Rating | IP20 (IP40 Enclosed) |
| Control Type | Toggle 3 positions |
| Component Type | Changeover Switch |
| Product Name | Acti9 iSSW |
