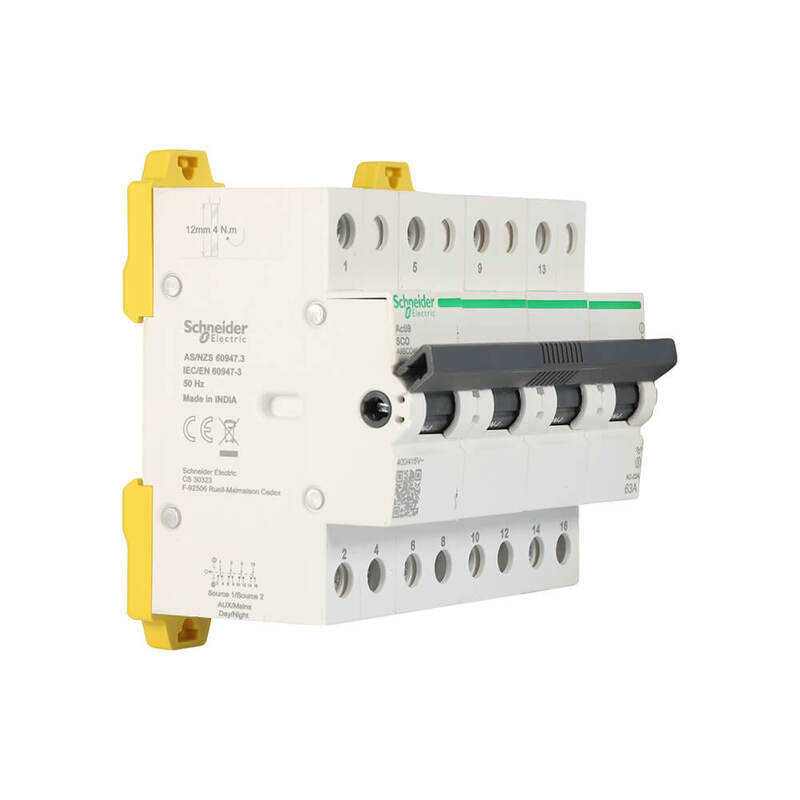

Clipsal A9SCO463 | 63A Changeover Switch Acti9 4P 415VAC
Learn more by watching our Clipsal A9SCO463 | 63A Changeover Switch Acti9 4P 415VAC video.
The Clipsal A9SCO463 Acti9 63A Changeover Switch is a reliable solution for manually switching between two power supplies or circuits. Designed for both industrial and commercial applications, this 4-pole switch operates at a rated current of 63A and a voltage of 400/415VAC. The device features a 3-position toggle control (I-0-II) with a centre OFF position, providing clear and precise operation. The knob indicates the actual position of the contacts inside, ensuring user confidence in the switch's status.
For added security, the switch includes provisions for a padlock, preventing unauthorized access. It conforms to IEC/EN 60947-3 and AS/NZS 60947.3 standards, ensuring compliance with safety regulations. The switch is designed for vertical mounting on a 35mm DIN rail and supports versatile connectivity through screw terminals for both flexible and rigid wires. With an electrical durability of 7,000 cycles and mechanical durability of 10,000 cycles, this switch is built to last, offering dependable performance over time.
Q: What is the rated operational current of this switch?
A: The switch has a rated operational current of 63A.
Q: What are the dimensions of the switch?
A: The switch measures 85mm in height, 105mm in width, and 44mm in depth.
(A9SCO463)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | A9SCO463 |
| Barcode # | 3606485810829 |
| Shipping Weight | 0.5200kg |
| Shipping Width | 0.115m |
| Shipping Height | 0.085m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.001075250m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal |
| Rated Current (A) | 63 |
| Height (mm) | 85 |
| Width (mm) | 105 |
| Depth (mm) | 44 |
| Mounting | Din Rail |
| Voltage (V) | 415 |
| Number of Poles | 4 |
| IP Rating | IP20 (IP40 Enclosed) |
| Control Type | Toggle 3 positions |
| Component Type | Changeover Switch |
| Product Name | Acti9 iSSW |
