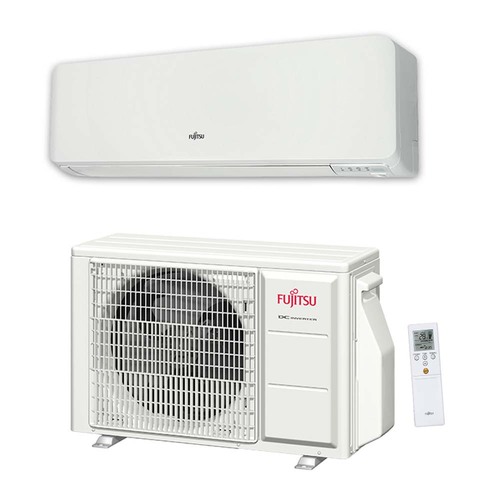

        FUJITSU ASTG09KMTD | 2.5KW Reverse Cycle Split System Airconditioner R32

        AC box sizing:

        • Indoor unit - 870 x 340 x 290mm
        • Outdoor unit - 800 x  380 x 590mm

        Features:

        • Model No. - Indoor : ASTG09KMTD.
        • Model No. - Outdoor: AOTG09KMTD.
        • Reverse Cycle System: Yes.
        • Cooling Capacity (Watts): 2500
        • Cooling Capacity (BTU/h): 8530
        • Range (Watts): 900 - 3600
        • Range (BTU/h): 3,100-12,200
        • Heating Capacity (Watts): 3200
        • Heating Capacity (BTU/h): 10,900
        • Range (Watts): 900-5300
        • Range (BTU/h): 3,100-18,000
        • Power Source (V/Ph/HZ): 240/1/50
        • Power Supply Attachment: Outdoor Unit
        • Plug Size (If Applicable): Not Applicable
        • Running Current, Cooling (Amps): 3.0
        • Running Current, Range (Amps): 3.0-3.5
        • Running Current, Heating (Amps): 3.5
        • Running Current, Range (Amps): 3.0-3.5
        • Input, Cooling (Watts): 530
        • Input, Range (Watts): 250-1040
        • Input, Heating (Watts): 660
        • Input, Range (Watts): 250-1610
        • E.E.R. - Cooling: 4.71
        • C.O.P. - Heating: 4.84
        • Moisture Removal (l/hr): 0.3
        • Star Rating - Cooling: 5
        • Star Rating - Heating: 5
        • Fan Speed: 4
        • Air Circulation (Cooling/Heating) (I/s): 194 /197
        • Compressor Type: DC Rotary
        • Dimensions - Indoor Unit (HxWxD mm): 270 x 834 x 222
        • Weight - Indoor Unit (kg): 10
        • Dimensions - Outdoor Unit (HxWxD mm): 542 x 799 x 290
        • Weight - Outdoor Unit (kg): 32
        • I.U. Sound Pressure Level Cooling (High/Quiet) (dBA@1mtr): 40/21
        • I.U. Sound Pressure Level Heating (High/Quiet) (dBA@1mtr): 40/19
        • O.U. Sound Pressure Level (Cooling/Heating) (dBA@1mtr): 46/46
        • O.U. Sound Power Level (dBA): 61
        • Refrigerant Type: R32
        • Connection Pipe Sizes, Gas (mm): Ø 9.52
        • Connection Pipe Sizes, Liquid (mm): Ø 6.35
        • Pre Charged Length (Metre): 15
        • Minimum Pipe Length (Metre): 3
        • Maximum Pipe Length (Metre): 20
        • Maximum Pipe Height (Metre): 15
        • Pipe Connection Methods: Flared
        • Outdoor Operating Temp, Cooling Degrees C: -10 to 46
        • Outdoor Operating Temp, Heating Degrees C: -15 to 24

        (ASTG09KMTD)

        Warranty

        Warranty starts from Invoice Date

        5 Year Manufactures Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fujitsu Air Conditioners
        SKU ASTG09KMTD
        Barcode # 4974437837767
        TYPE VALUE
        Type Air Conditioning
        Brand Fujitsu
        Product Type Split System Air Conditioning
