Features

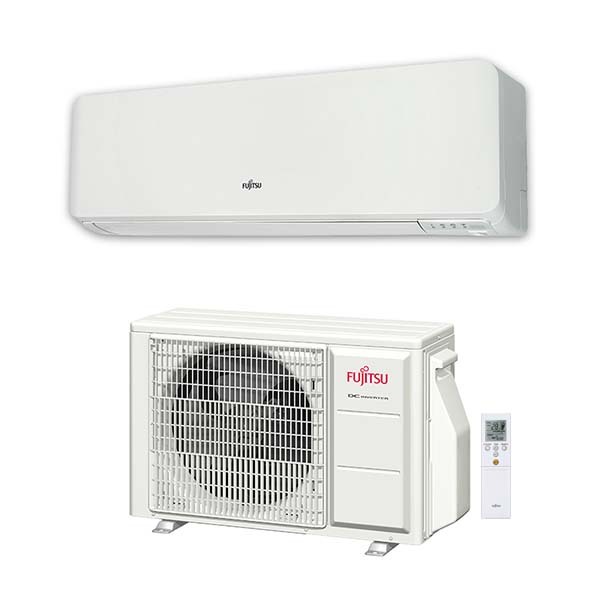

Indoor unit | ASTG12KMTD |
Outdoor unit | AOTG12KMTD |
Operation Type | Reverse Cycle |
Power Source V/Ph/Hz | 230 / 1 / 50 |
Cooling Capacity kW (Rated (Min - Max)) | 3.50 (0.8 - 4.1) |
Heating Capacity kW (Rated (Min - Max)) | 3.70 (0.9 - 6.1) |
Input Power Cooling kW (Rated (Min - Max)) | 0.89 (0.15 - 1.29) |
Input Power Heating kW (Rated (Min - Max)) | 0.79 (0.25 - 1.89) |
EER Cooling kW/kW | 3.93 |
COP Heating kW/kW | 4.68 |
Star Rating Cooling (0-10) (Hot / Average / Cold) | 4.5 / 4.5 / 5 |
Star Rating Heating (0-10) (Hot / Average / Cold) | 3.5 / 3 / 2.5 |
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 6.477 / 6.193 / 6.625 |
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.241 / 4.817 / 4.278 |
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 7.443 / 8.666 / 10.522 |
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.234 / 4.971 / 4.518 |
Running Current amps (Cooling / Heating) | 4.2 / 4 |
Moisture Removal l/hr | 1 |
Indoor Sound Pressure Cooling dBA (High / Quiet) | 40 / 19 |
Indoor Sound Pressure Heating dBA (High / Quiet) | 42 / 21 |
Outdoor Sound Pressure dBA (Cooling / Heating) | 49 / 49 |
Outdoor Sound Power dBA | 59 |
Air Circulation (Indoor - High Fan) Cooling l/sec | 194 |
Air Circulation (Indoor - High Fan) Heating l/sec | 214 |
Indoor Unit Dimensions mm (Height x Width x Depth) | 270 x 834 x 222 |
Indoor Unit Weight kg | 10.00 |
Outdoor Unit Dimensions mm (Height x Width x Depth) | 542 x 799 x 290 |
Outdoor Unit Weight kg | 32.00 |
Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
Pipe Length m (Max (Precharged)) | 20 (15) |
Max Height Difference m | 15 |
Operation Range Cooling °CDB (Min to Max) | -10 to 46 |
Operation Range Heating °CDB (Min to Max) | -15 to 24 |
Refrigerant Type | R32 |
Refrigerant Amount g | 850 |
(ASTG12KMTD)
Warranty starts from Invoice Date
5 Year Manufactures Warranty
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Fujitsu Air Conditioners |
SKU | ASTG12KMTD |
TYPE | VALUE |
---|---|
Type | Air Conditioning |
Brand | Fujitsu |
Product Type | Split System Air Conditioning |
