        Description

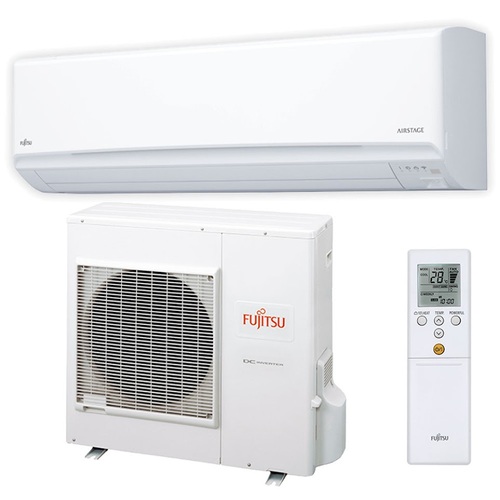

        FUJITSU ASTG30KMTD | 8.5KW Reverse Cycle Split System Airconditioner R32

        Key features

        Energy-efficient, wall-mounted split system units in cooling only and reverse cycle. A stylish design, along with efficient features like Human Sensor Control and Economy mode, have been combined in the Lifestyle wall-mounted air conditioning range to offer users flexibility and total control around the comfort of their homes.

        • All DC - With All DC, electricity loss is decreased, and power consumption is reduced.
        • Apple Catechin Filter - Fine dust, invisible mould spores and harmful microorganisms are absorbed into the filter by static electricity, and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.
        • Auto Restart - Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode once the power is restored.
        • Auto Shut Louvre - The auto-shut louvres close or open automatically when the unit stops or starts.
        • Auto Changeover - The unit automatically switches between operating modes based on the temperature setting and room temperature.
        • Automatic Air Flow Adjustment - The microprocessor automatically adjusts the airflow to follow changes in room temperature.
        • Automatic Louvre - The louvres' position is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
        • Auto Off Timer - Automatically stops the unit operation when a fixed time has elapsed from the start of operation.
        • Blue Fin Heat Exchanger - Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
        • Demand Response - This product is designed to be compatible with the Air Conditioning Demand Response program. When your electricity supplier activates one of the three modes, the air conditioner switches over to the appropriate operation.
        • Double Swing Automatic - The complex swing action of the louvres enables them to swing automatically in both horizontal and vertical directions.
        • Economy Mode - Limits the maximum operation current and performs operation with suppressed power consumption.
        • Filter Sign - Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the room's air.
        • Human Sensor - The Human sensor detects the movement of people within the conditioned room.
        • i-PAM - i-PAM inverter technology enables high output and high-efficiency performance.
        • Long-Life Ion Deodorisation Filter - The filter deodorises by powerfully decomposing absorbed odours using the oxidising and reducing effects of ion generated by the ultra-fine particle ceramic.
        • Low Noise Mode - The compressor speed and the outdoor unit fan speed are limited to reduce the operational noise.
        • ON-OFF Timer - The ON-OFF timer can be set to operate once every 24 hours.
        • Powerful Mode - Powerful mode will operate the indoor unit fan and outdoor unit compressor at maximum operation to quickly make the room conditioned and comfortable.
        • Program Timer - This timer allows the selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
        • Right Left Swing - The right/left louvre automatically swings in either direction.
        • Sleep Timer - The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
        • Super Quiet Mode - The indoor unit fan can operate at a low speed to produce quieter operation.
        • Up Down Swing - The up/down louvre automatically swings up and down.
        • v-PAM - v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.
        • Washable Panel - Dust accumulating on the air conditioner can be easily cleaned with a damp cloth.
        • Weekly Timer - Different ON-OFF times can be set for up to 7 days.
        • 10 Degree Heat - The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
        Indoor unit ASTG30KMTD
        Outdoor unit AOTG30KMTD
        Operation Type Reverse Cycle
        Power Source V/Ph/Hz 230 / 1 / 50
        Cooling Capacity kW (Rated (Min - Max)) 8.50 (2.9 - 10.5)
        Heating Capacity kW (Rated (Min - Max)) 9.00 (2.2 - 11.2)
        Input Power Cooling kW (Rated (Min - Max)) 2.46 (0.58 - 3.85)
        Input Power Heating kW (Rated (Min - Max)) 2.34 (0.5 - 4.01)
        EER Cooling kW/kW 3.45
        COP Heating kW/kW 3.84
        Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 2.5 / 2.5
        Star Rating Heating (0-10) (Hot / Average / Cold) 2.5 / 2 / 2
        Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.658 / 4.334 / 4.477
        Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.111 / 3.856 / 3.546
        Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.097 / 5.258 / 5.782
        Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 4.1 / 3.939 / 3.678
        Running Current amps (Cooling / Heating) 10.4 / 10.1
        Moisture Removal l/hr 2.5
        Indoor Sound Pressure Cooling dBA (High / Quiet) 51 / 33
        Indoor Sound Pressure Heating dBA (High / Quiet) 51 / 33
        Outdoor Sound Pressure dBA (Cooling / Heating) 50 / 54
        Outdoor Sound Power dBA 66
        Air Circulation (Indoor - High Fan) Cooling l/sec 389
        Air Circulation (Indoor - High Fan) Heating l/sec 389
        Indoor Unit Dimensions mm (Height x Width x Depth) 340 x 1150 x 280
        Indoor Unit Weight kg 18.50
        Outdoor Unit Dimensions mm (Height x Width x Depth) 830 x 900 x 330
        Outdoor Unit Weight kg 60.00
        Piping Connects mm Ø (Liquid / Gas) 9.52 / 15.88
        Pipe Length m (Max (Precharged)) 75 (20)
        Max Height Difference m 30
        Operation Range Cooling Â°CDB (Min to Max) -10 to 46
        Operation Range Heating Â°CDB (Min to Max) -15 to 24
        Refrigerant Type R32
        Refrigerant Amount g 1,650

        (ASTG30KMTD)

        Warranty

        Warranty starts from Invoice Date

        5 Year Manufactures Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fujitsu Air Conditioners
        SKU ASTG30KMTD
        TYPE VALUE
        Type Air Conditioning
        Brand Fujitsu
        Product Type Split System Air Conditioning
