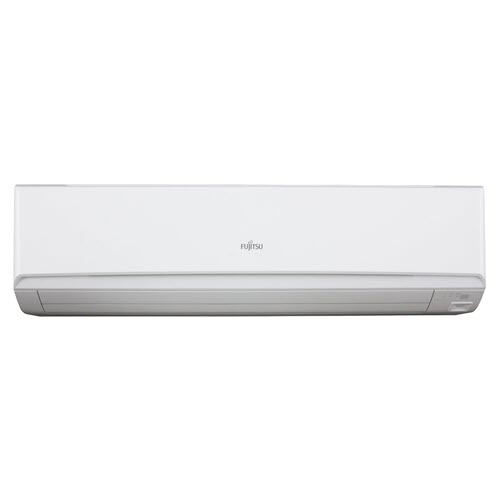

        FUJITSU ASTG34KMTD | 9.4KW Reverse Cycle Split System Airconditioner
        $2,915.00 $2,650.00 ex. GST
        Description

        FUJITSU ASTG34KMTD | 9.4KW Reverse Cycle Split System Airconditioner R32

        9.4kW Cooling | 10.3kW Heating - Fujitsu Lifestyle Range ASTG34KMTC Reverse Cycle Inverter Split System Air Conditioner



        Indoor unit ASTG34KMTD
        Outdoor unit AOTG34KMTD
        Operation Type Reverse Cycle
        Power Source V/Ph/Hz 230 / 1 / 50
        Cooling Capacity kW (Rated (Min - Max)) 9.40 (2.9 - 11.2)
        Heating Capacity kW (Rated (Min - Max)) 10.30 (2.7 - 11.7)
        Input Power Cooling kW (Rated (Min - Max)) 2.78 (0.59 - 4.03)
        Input Power Heating kW (Rated (Min - Max)) 2.84 (0.6 - 4.24)
        EER Cooling kW/kW 3.38
        COP Heating kW/kW 3.63
        Star Rating Cooling (0-10) (Hot / Average / Cold) 3 / 2.5 / 2.5
        Star Rating Heating (0-10) (Hot / Average / Cold) 2 / 2 / 1.5
        Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) 4.628 / 4.317 / 4.482
        Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) 3.834 / 3.603 / 3.312
        Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 5.018 / 5.153 / 5.599
        Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) 3.823 / 3.676 / 3.433
        Running Current amps (Cooling / Heating) 11.7 / 11.9
        Moisture Removal l/hr 3.5
        Indoor Sound Pressure Cooling dBA (High / Quiet) 52 / 34
        Indoor Sound Pressure Heating dBA (High / Quiet) 51 / 33
        Outdoor Sound Pressure dBA (Cooling / Heating) 50 / 54
        Outdoor Sound Power dBA 65
        Air Circulation (Indoor - High Fan) Cooling l/sec 389
        Air Circulation (Indoor - High Fan) Heating l/sec 389
        Indoor Unit Dimensions mm (Height x Width x Depth) 340 x 1150 x 280
        Indoor Unit Weight kg 18.00
        Outdoor Unit Dimensions mm (Height x Width x Depth) 914 x 970 x 370
        Outdoor Unit Weight kg 74.00
        Piping Connects mm Ø (Liquid / Gas) 9.52 / 15.88
        Pipe Length m (Max (Precharged)) 75 (30)
        Max Height Difference m 30
        Operation Range Cooling °CDB (Min to Max) -10 to 46
        Operation Range Heating °CDB (Min to Max) -15 to 24
        Refrigerant Type R32
        Refrigerant Amount g 2,000

        (ASTG34KMTD)

        Warranty

        Warranty starts from Invoice Date

        5 Year Manufactures Warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fujitsu Air Conditioners
        SKU ASTG34KMTD
        TYPE VALUE
        Type Air Conditioning
        Brand Fujitsu
        Product Type Split System Air Conditioning
