        Learn more by watching our CABAC CTS-180 | 24 hour Single pole timer Din Mount 16(4)amp Analogue | 50 Hrs Battery Backup video.

        Description

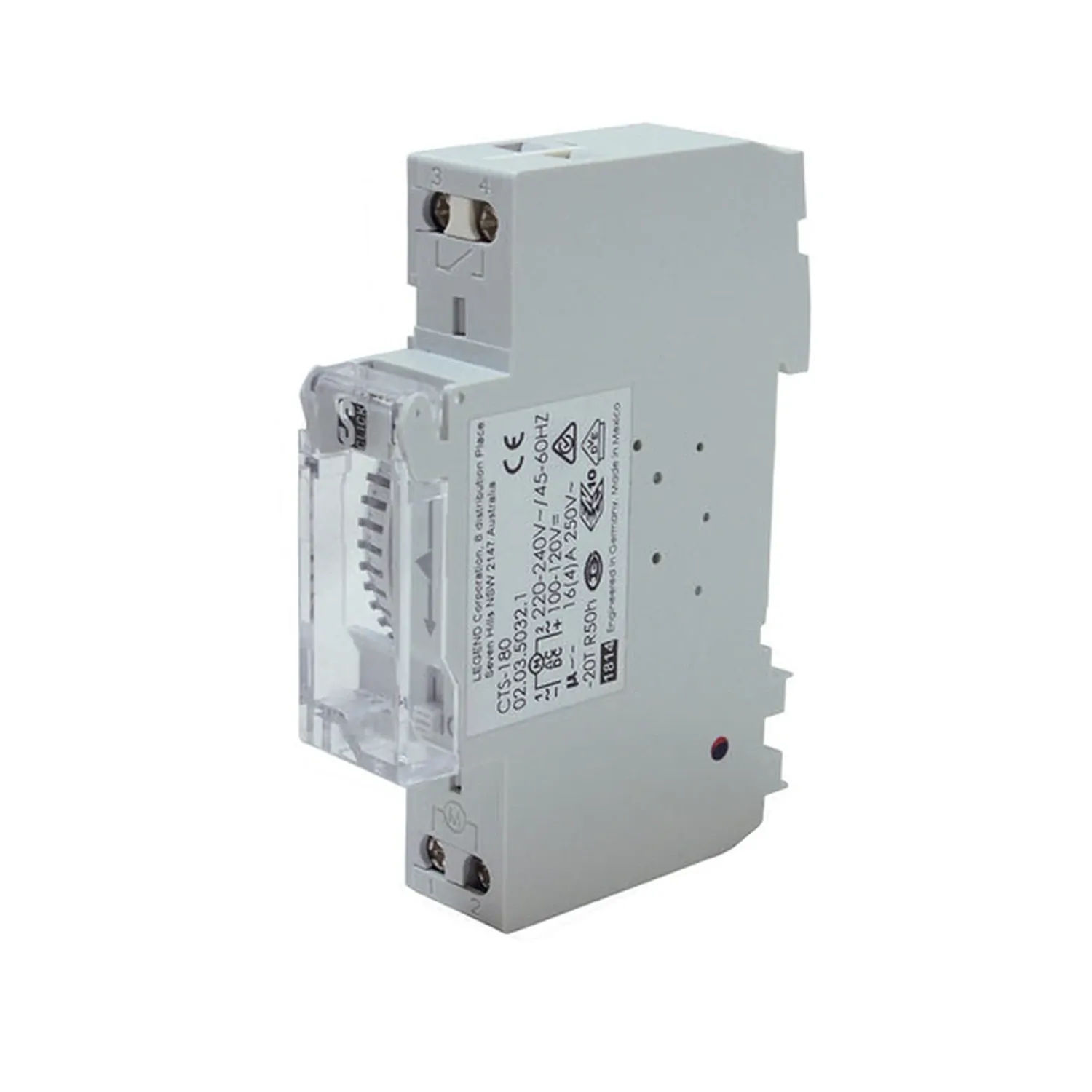

        CABAC CTS-180 | 24 hour Single pole timer Din Mount 16(4)amp Analogue | 50 Hrs Battery Backup

        The CTS-180 is a single module analogue time switch designed for DIN-rail mounting. The timer switch is easy to program, features large screw terminals to suit stranded conductor and has a lead-sealable housing for tamper protection. As an additional feature, the device has a battery backup which provides over 50 hours of power reserve.

        Suitable applications include advertising lighting, shop window lighting, water treatment and pump control.


        Operating Specifications and Technical Data

        • Manual Switch: Automatic mode, Fix ON
        • Channels: 1
        • Tampering Protection: Lead-sealable
        • Number of Modules: 1
        • Colour: Grey
        • Weight: 110g
        • Mounting: DIN Rail
        • Program: Daily program (ON/OFF)
        • Shortest Switching Time: ON/OFF 30 Minutes
        • Temperature (Operation): -20 to +55 degrees Celsius
        • Protection Type: IP20
        • Protection Class: II, according to corresponding mounting
        • Approval Mark: CE, GOST, VDE
        • Standards and Guidelines: EN 60730-1, EN 60730-2-7

        Power Connection

        • Device: Screw terminal with wire protection max. 4mm2, captive latching screw
        • Circuit diagram and line drawing available, refer to the product datasheet

        Electrical Data

        • Supply Voltage: DC 130V, AC 230V +/- 10% 50-60Hz
        • Current Output: Switch contact, potential-free
        • Current Capacity - Resistive Load - AC1: 16A/250V AC
        • Current Capacity - Inductive load cos.phi 0.6 - AC3: 4A/250V AC
        • Load Incandescent Bulb: 1.000W
        • Power Consumption: 1VA
        • Accuracy: +/- 2,5 Second/Day at 20 degrees Celsius

        (CTS-180)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU CTS-180
        Barcode # 9318674254126
        Shipping Weight 0.1010kg
        Shipping Width 0.090m
        Shipping Height 0.025m
        Shipping Length 0.085m
        Shipping Cubic 0.000191000m3
        TYPE VALUE
        Type Timer
        Brand Cabac
        Rated Current (A) 16A (AC1)
        Height (mm) 90
        Width (mm) 18
        Depth (mm) 65
        Protection IP20
        Mounting Din Rail
        Battery Backup No
        Number of Modules 1
        Voltage (V) 240
        Programming Type Analog
        Program Time 24 Hours
