        Learn more by watching our CLIPSAL 154 | Plaster C-Clip | 10mm Depth video.

        Description

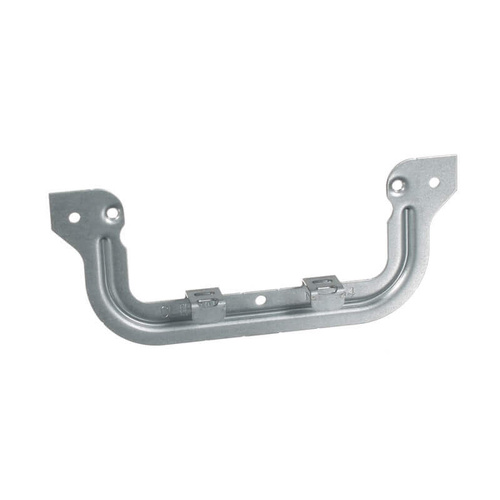

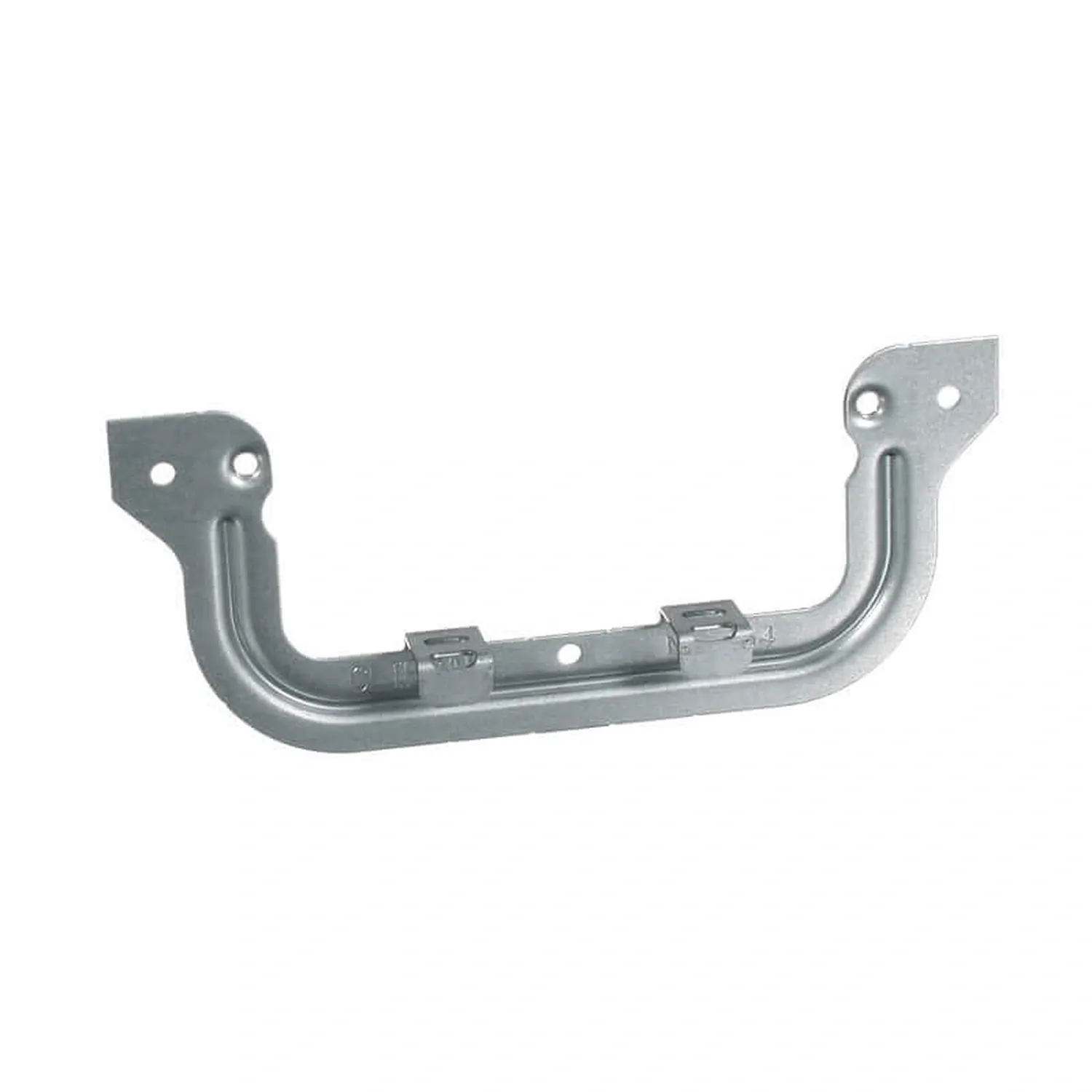

        CLIPSAL 154 | Plaster C-Clip | 10mm Depth

        Application

        To securely mount power points, light switches, audio plates etc to a Gyprock wall after the wall has been erected.

        Instructions

        • Measure the height of the other wall plates in the room - so they all look even.
        • Place the plaster bracket - c-clip on the wall and draw in pencil the internal Ushape of the bracket - draw around the curved section of the plate too - mark where the screw hole will be as well, turn the plate upside down and line up the screw holes on the side and draw on the wall the internal of the Ushape again, this will leave you with a rectangle shape with 2 wings for the screw.
        • Cut out the rectangle with a gyprock saw.
        • Insert the C-Clip through the hole holding onto the 2 tabs that are coming off the bottom of the c-clip, the flat section of the c-clip with the screw holes should be touching the internal section of the gyprock and the 2 taps should be pushed down over the Gyprock to hold the bracket in place.
        • Looking at the wall now all you should see are 2 tabs holding the bracket in place on the bottom of your cut rectangle, and if you look through the right and left side of the rectangle you will see the bracket holes.
        • Now simply screw your power point, light switch, or audio plate etc to the c-clip for a secure installation.

        Features:

        • Zinc Plated construction
        • 84mm center
        • Width: 122mm total width
        • Designed for 10mm Gyprock
        • Height: 50mm

        (154)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 154
        Barcode # 9311554036164
        Package Weight 0.021kg
        Package Width 0.050m
        Package Height 0.012m
        Package Length 0.120m
        TYPE VALUE
        Type Electrical Accessories
        Brand Clipsal by Schneider Electric
        Height (mm) 50
        Width (mm) 122
        Depth (mm) 10mm
        Material Zinc Plated
        Box increments (This item is sold individually) 20
