        Description

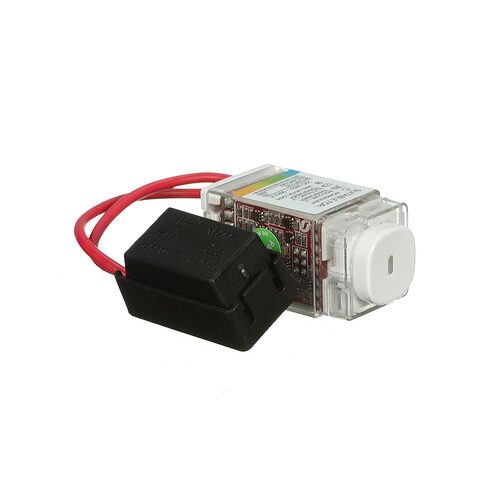

        CLIPSAL 31E2PUDM-WE | Integrally Switched Push Button Universal Dimmer

        The Clipsal 31E2PUDM is designed to reduce visual clutter on the wall, and the new Integrally Switched Pushbutton Universal Dimmer incorporates on/off switching and dimming control into one mechanism.

        The dimming performance has been optimised to ensure smooth, linear, flicker-free dimming across the control range.

        The new Clipsal C-Thru Dimmer can be used to control loads such as incandescent lamps, 240V halogen lamps, dichroic lamps and low voltage lighting that uses iron-core or electronic transformers.

        Features:

        • Push-Button Operation
        • One mechanism design for on/off switching and dimming control
        • Reduces space required on the wall plate
        • 12V halogen iron-core and electronic transformers
        • 350W power rating
        • Built-in over-current and over-temperature protection
        • Designed for linear dimming range operation
        • Memory dimmer function
        • Full short-circuit protection
        • Immune to high frequency (ripple) signal injection on mains supply
        • Built-in suppressors to minimise radio frequency interference
        • Compatible with any Clipsal 30 Series plates
        • White Colour
        • AS/NZS3100, AS/NZS3133, IEC60669
        • Multi-gang capacity up to six (6) dimmer mechanisms per plate
        • Compatible with selected dimmable CFL and LED loads
        • Leading-edge / trailing edge phase control

        (31E2PUDMWE)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 31E2PUDMWE
        Barcode # 9311554724306
        Package Weight 0.046kg
        Package Width 0.080m
        Package Height 0.025m
        Package Length 0.100m
        TYPE VALUE
        Type Dimmer
        Brand Clipsal by Schneider Electric
        Range Clipsal 30 Series
        Colour White
        Wattage (W) 350
        Switch Type Push Button
