        Description

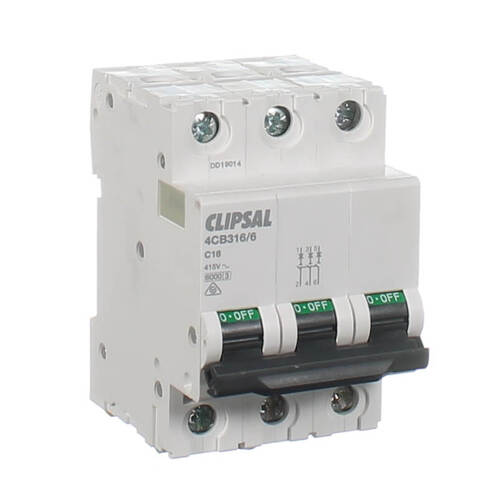

        CLIPSAL 4CB316/6 | 16amp Three Pole 6kA Circuit Breaker C Curve

        Clearance 13 Left - NO RETURNS

        Clipsal 4CB316-6 16 amp 3 pole circuit breaker protects and controls circuits against overloads and short circuits. The 4 series range of circuit protection suits residential, commercial or industrial switchboard requirements.
        The 6kA breaking capacity of these mcbs makes them ideal for commercial and industrial applications.

        Features

        • 16 Amp
        • 3 Pole
        • 6KA
        • Circuit Breaker
        • Number of modules: 3
        • Curve: C
        • Frequency: 50/60 Hz
        • Rated insulation voltage: 500 V
        • Unique new white finish for a fresh modern look. Base module = 54 mm wide.
        • Compact standardised and consistent module dimensions.
        • Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in.
        • Cable automatically guided to the correct position: terminals with guard. Fast closure.
        • The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety.
        • Same housing as AC type MCBs.
        • Uniformity in space requirements and installation.
        • Used with marine, telecommunications, solar power, emergency power, battery power. Excellent breaking capability for its compact size.

        (4CB316-6)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 4CB316-6
        Barcode # 9318795014005
        Shipping Weight 0.3130kg
        Shipping Width 0.084m
        Shipping Height 0.053m
        Shipping Length 0.073m
        Shipping Cubic 0.000325000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 16
        Height (mm) 81
        Width (mm) 54
        Depth (mm) 78.5
        Standards AS/NZS 60898
        Mounting Din Rail
        Voltage (V) 500
        Number of Poles 3
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Curve C
