        Learn more by watching our CLIPSAL MCB4-116 | 16amp Single Pole 4.5kA Circuit Breaker video.

        Description

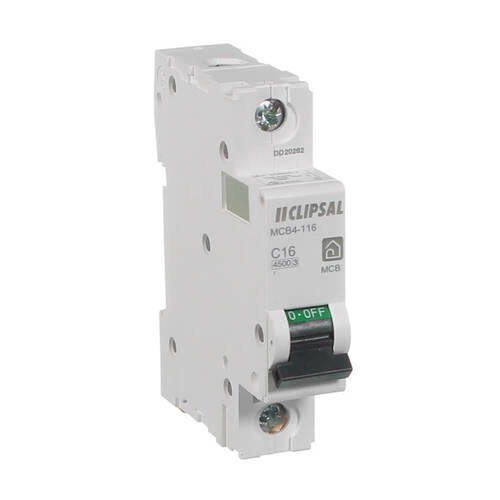

        CLIPSAL MCB4-116 | 16amp Single Pole 4.5kA Circuit Breaker

        Clearance - NO RETURNS

        The Clipsal MCB4-116 16 amp circuit breaker is part of the Resi Max range - The housing is made from sturdy, self extinguishing material. The device has lift-up terminals with combination head screws. Additional safety is provided with 'ON' and 'OFF' marking in contrasting colours on the toggle mechanisms.

        Key Features

        • 16Amp
        • Single Pole
        • 4.5KA
        • Circuit Breaker
        • Unique new white finish for a fresh modern look
        • Base module = 18 mm wide. Compact standardised and consistent module dimensions
        • Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in
        • Cable automatically guided to the correct position: terminals with guard
        • Fast closure
        • The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety
        • Same housing as AC type MCBs. Uniformity in space requirements and installation
        • Excellent breaking capability for its compact size

        (MCB4-116)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MCB4-116
        Barcode # 9318795018331
        Shipping Weight 0.1060kg
        Shipping Width 0.071m
        Shipping Height 0.018m
        Shipping Length 0.084m
        Shipping Cubic 0.000107000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 16
        Height (mm) 81
        Width (mm) 18
        Depth (mm) 78.5
        Standards AS/NZS 60898
        Mounting Din Rail
        Voltage (V) 240V
        Number of Poles 1
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 4.5kA
        Curve C
        Reviews
        5.0

        1 Reviews
        5 STARS
        1
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Peter

        Mini Circuit Breaker on 15 August 2018

        Excellent value. Rated up to 48V DC so great for current distribution to 12V LED circuits.
