        Learn more by watching our CLIPSAL MCB4-140 | 40amp Single Pole 4.5kA Circuit Breaker video.

        Description

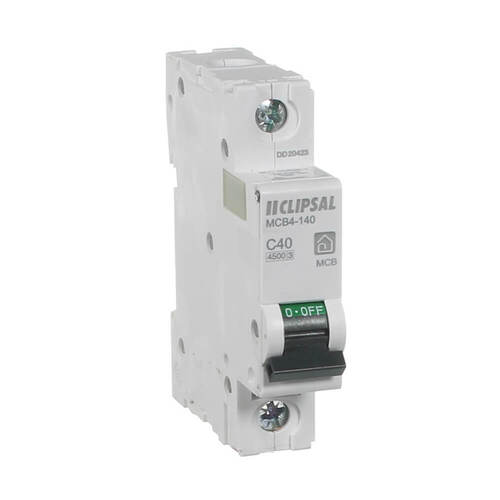

        CLIPSAL MCB4-140 | 40amp Single Pole 4.5kA Circuit Breaker

        Clearance  - NO RETUNS

        The Clipsal MCB4-140 40 amp circuit breaker is part of the Resi Max range - The housing is made from sturdy, self extinguishing material. The device has lift-up terminals with combination head screws. Additional safety is provided with 'ON' and 'OFF' marking in contrasting colours on the toggle mechanisms.

        Key Features

        • 40Amp
        • Single Pole
        • 4.5KA
        • Circuit Breaker
        • Unique new white finish for a fresh modern look
        • Base module = 18 mm wide. Compact standardised and consistent module dimensions
        • Lift-up terminals. Safer ‘no hot spot’ terminations and all cable strands are locked in
        • Cable automatically guided to the correct position: terminals with guard
        • Fast closure
        • The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety
        • Same housing as AC type MCBs. Uniformity in space requirements and installation
        • Excellent breaking capability for its compact size

        (MCB4-140)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MCB4-140
        Barcode # 9318795018379
        Package Weight 0.117kg
        Package Width 0.071m
        Package Height 0.018m
        Package Length 0.084m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 40
        Height (mm) 81
        Width (mm) 18
        Depth (mm) 78.5
        Standards AS/NZS 60898
        Mounting Din Rail
        Voltage (V) 240V
        Number of Poles 1
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 4.5kA
        Curve C
