        Learn more by watching our CLIPSAL RCBM210-30 | 2 Pole 10Amp 30mA 6kA MCB/RCD video.

        Description

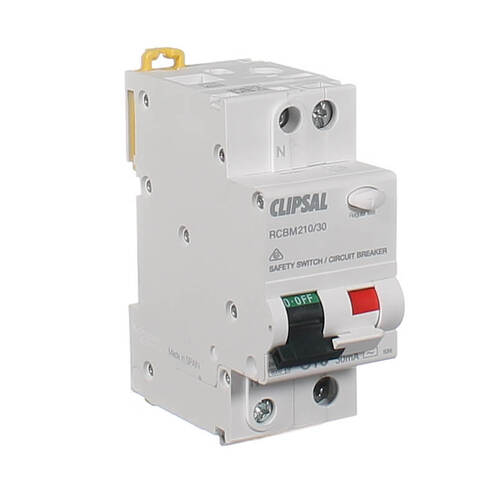

        CLIPSAL RCBM210-30 | 2 Pole 10Amp 30mA 6kA MCB/RCD

        Clearance 1 Left - NO RETURNS

        The Clipsal RCBM210/30 is rated at 6KA. Cleverly designed with trip indication. The two pole module RCBO includes individual trip indication for both RCD and MCB faults. It is a mechanical combination RCBO. Switches both active and neutral cables.

        The 2 pole RCBO widely used to protect domestic and commercial installations and is part of the Clipsal Resi Max4 series. Combo busbars and accessories are available to simplify installation. Line or load cables can be installed either top or bottom to make for an easy install.

        Features:

        • Residual current breaker with overcurrent protection (RCBO)
        • Product brand: Clipsal
        • Poles description: 1P + N
        • Neutral position: Left
        • Number of modules: 2
        • Number of protected poles: 1
        • [In] rated current: 10 A
        • Network type: AC
        • Trip unit technology: Thermal-magnetic
        • Curve: C
        • Earth-leakage sensitivity: 30 mA
        • Earth-leakage protection class: Type A
        • Breaking capacity: 6 kA Top and bottom, line and load compatible
        • Narrow module design, allows for more RCDs/MCBs to be installed in the one enclosure
        • Two pole safety feature allows switching of both active and neutral contacts
        • Trip free locking device (lockable in 'ON' or 'OFF' position)
        • Compatible with Clipsal switchboards and switchboard accessories
        • AS/NZS 61009 compliance
        • Two–year warranty.

        This product has been replaced with

        (RCBM210-30)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        SKU RCBM210-30
        Barcode # 9318795004624
        Package Weight 0.218kg
        Package Width 0.081m
        Package Height 0.040m
        Package Length 0.100m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 10
        Height (mm) 81
        Width (mm) 36
        Depth (mm) 77.5
        Standards AS/NZS 61009
        Mounting Din Rail
        Voltage (V) 240V
        Number of Poles 2
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 6kA
        Curve C
