        Description

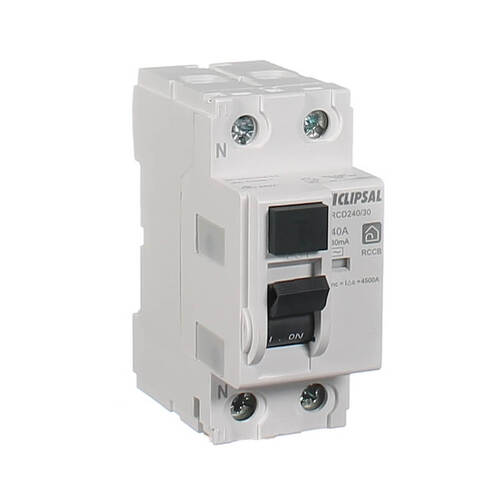

        CLIPSAL RCD240-30 | 2 Pole 40Amp 4.5kA RCD 30mA

        Clearance 1 Left  - NO RETURNS

        Clipsal Resi Max RCD240-30 is a 2 pole Safety Switch rated at 40 amps.
        The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
        The Clipsal 2 pole RCD also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

        Features:

        • Residual current Circuit Breaker
        • Product brand: Clipsal
        • Poles description: 2P
        • Breaking capacity: 4.5 kA Top and bottom, line and load compatible
        • Number of modules: 2
        • Number of protected poles: 1
        • [In] rated current: 40 A
        • Network type: AC
        • Trip unit technology: Thermal-magnetic
        • Curve: C
        • Earth-leakage sensitivity: 30 mA
        • Earth-leakage protection class: Type A
        • Narrow module design, allows for more RCDs/MCBs to be installed in the one enclosure
        • Two pole safety feature allows switching of both active and neutral contacts
        • Trip free locking device (lockable in 'ON' or 'OFF' position)
        • Compatible with Clipsal switchboards and switchboard accessories
        • AS/NZS 61009 compliance
        • Two–year warranty.

        This product has been replaced with

        (RCD240-30)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU RCD240-30
        Barcode # 9318795000312
        Shipping Weight 0.2080kg
        Shipping Width 0.091m
        Shipping Height 0.040m
        Shipping Length 0.084m
        Shipping Cubic 0.000306000m3
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 40
        Height (mm) 81
        Width (mm) 36
        Depth (mm) 75
        Standards AS/NZS 61008
        Mounting Din Rail
        Number of Poles 2
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 4.5kA
        Box increments (This item is sold individually) 6
        Neutral Position Left
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class Type A
        Curve C
