        Learn more by watching our CLIPSAL RMSW180 | 80 amp Main Switch single pole | Resi Max 4 video.

        Description

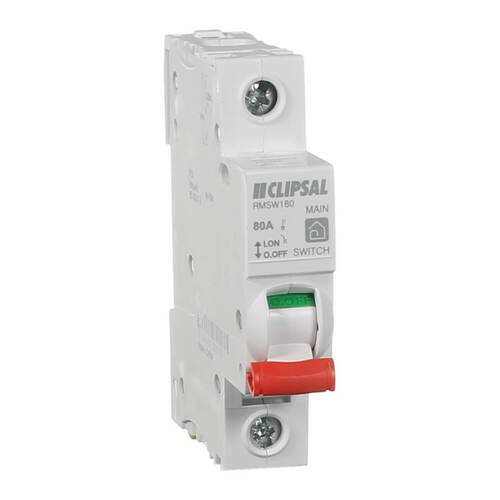

        CLIPSAL RMSW180 | 80 amp Main Switch single pole | Resi Max 4

        The Clipsal RMSW180 is an 80amp main switch. This main switch is rated at 80amps and is designed to control the flow of power to a branch of circuit breakers.

        Key Features

        • Main Switch
        • Single Pole
        • 80 Amp rated Current
        • 10 KA Short Circuit protection
        • Cable automatically guided to the correct position: terminals with guard
        • Insulated terminals - IP20
        • Downstream/upstream by tunnel terminals
        • Manual control on front face by O-I lever
        • VisiSafe - Designed to ensure a fully secured operation when conducting maintenance work.
        • Class 2 insulation

        (RMSW180)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU RMSW180
        Barcode # 3606489825973
        Package Weight 0.085kg
        Package Width 0.089m
        Package Height 0.017m
        Package Length 0.072m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max 4
        Rated Current (A) 80
        Height (mm) 81
        Width (mm) 18
        Depth (mm) 75.5
        Standards AS/NZS 60947-3
        Mounting Din Rail
        Voltage (V) 250
        Number of Poles 1
        IP Rating IP20 ( IP40 Enclosed )
        Breaking Capacity 10kA
