        Description

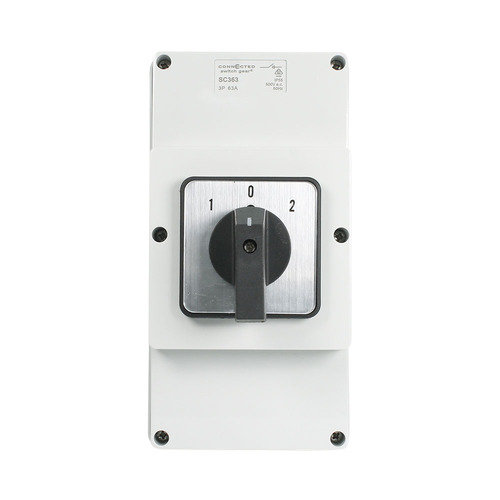

        CSG SC363 | Changeover Switch 3 Pole 63Amp Surface Mount Switch | IP55

        What is a change-over switch?
        A changeover switch switches an entity's electricity supply from the general grid power supply to a "generator system" in case of a power outage. The changeover switch connects to the main power grid, generator, or alternate source, and the entity wiring. When you switch or "Change over", all the power on that circuit changes from either Grid or Generator. (not allowing it to flow back into each other (Grid and generator))

        The IMPACT Series of changeovers witches are designed for harsh Australian conditions and are designed to give full motor control in a unit that is rated IP55. It is manufactured from impact and chemical-resistant material and will withstand harsh treatment in most industrial environments.

        Features:

        • Change Over Switch
        • 3 Pole 63A
        • Chemical and Impact Resistant
        • Silicone Based Seals
        • 2 Positions
        • 500V AC
        • IP55 Rated Weatherproof
        • Rated Frequency: 50/60Hz
        • Operating Temp: -40ºC - 80ºC
        • Complies with: IEC 60947-3 IEC 60947-5-1
        • Rated Operation Current Ie
          • AC21A: 63
          • AC22A:63
          • AC23A:57
        • Rated Operational power pe AC23A Standard Motor
          • 30/18.5K
        • Conduit entries
          • 1 x 32mm
          • 2 x 25mm

        This product comes with a 5 Year In House Warranty. That’s right, five years! This is so that you can have peace of mind knowing that if a fault arises within a five-year period, we will cover the cost of replacing the product and its installation by an authorised electrician. In other words, we’ve got your back.

        (SC363)

        Warranty

        Warranty starts from Invoice Date

        This product comes with a 5 Year In House Warranty. That’s right, five years! This is so that you can have peace of mind knowing that if a fault arises within a five-year period, we will cover the cost of replacing the product and its installation by an authorised electrician. In other words, we’ve got your back.

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Connected Switch Gear
        SKU SC363
        Barcode # 9337286008859
        Shipping Weight 0.6290kg
        Shipping Width 0.130m
        Shipping Height 0.107m
        Shipping Length 0.116m
        Shipping Cubic 0.001614000m3
        TYPE VALUE
        Type Isolators & Switches Weatherproof
        Brand Connected Switch Gear
        Range Industrial
        Colour Grey
        Rated Current (A) 63
        Mounting Surface Mount
        Voltage (V) 500
        Material Poly Carbonate
        Switch Type Changeover
        Number of Poles 3
        IP degree of protection IP55
