Name: Cabac HNS810TM | Single Module Bluetooth Timer 16(8)amp 240v | 16 x 7 Day / 24 Hr Programs
Brand: CABAC
SKU: HNS810TM
Price: 169.34 AUD
Availability: InStock

Shipping and Pick-Ups are still available until 23rd Dec. Order Today! - Want Free Shipping? - Tap Here

Search Results:

Products
Pages

Search Results:

Product Category Suggestions

Pages

Video

Learn more by watching our Cabac HNS810TM | Single Module Bluetooth Timer 16(8)amp 240v | 16 x 7 Day / 24 Hr Programs video.

Additional related video.

Description

Cabac HNS810TM | Single Module Bluetooth Timer 16(8)amp 240v | 16 x 7 Day / 24 Hr Programs

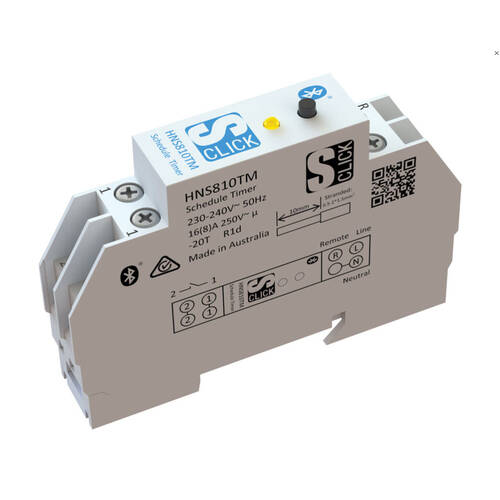

The S-Click HNS810TM is a smart, user-friendly DIN switchboard timer featuring large screw terminals and Bluetooth low-energy connectivity. The device supports up to 70 ON/OFF programmes per day to create a tailored schedule to suit your specific application. The output will turn ON and OFF according to the set schedule, and the HNS810TM allows for timers to overlap and run concurrently.

Set up is easy using the free S-Click iOS application via your smartphone or tablet. Unique device serial numbers enable centralised schedule management at remote sites. Users can even store device pre-sets in the app for easy setup of multiple devices across different locations.

The key features of the HNS810TM digital timer switch include:

70 available ON/OFF programmes per day
7 day programme allows up to 980 Memory Spaces
Programs stored for 99+ years in EEPROM memory.
Advanced super capacitor provides clock backup for the life of the product.
Automatic Daylight Savings function (Default ON).
Pulse mode (minimum 1 second).
Service Counter with 4 parameters: Device Up time, Total Load ON time, Load ON time since last reset, last reset date.
Standard 17.5mm DIN rail mounting.
Illuminated LED indicator for switch status and Bluetooth sync.
Over the Air (OTA) Firmware upgradable through the S-Click app.

Operating Conditions

Operating Voltage: 230-240Va.c. 50Hz
Operating Temperature: -20 to +55 degrees Celsius
Certified Standard: IEC 60730-1, IEC 60730-2-7, AS/NZS 4268
Current Capacity (Resistive): 16A
Current Capacity (P.F. 0.6): 8A (Inductive/Capacitive)
Output Type: Volt Free Pair (Relay)
Connection Type: Screw Terminals (captive screw with self-raising terminal washers)
Conductors: Suits stranded or solid cable
Stranded: Max. 2 x 1.5mm
Solid: Max. 2 x 2.5mm
Min. 0.6mm solid / 0.28mm2 / 22AWG
Channels: 1
Accuracy: +/- 0.25s / day @ 25 degrees Celsius

NOTE: Operation at temperature, voltage or load outside of the specifications may cause permanent damage to the unit.

For installation instructions, operating instructions and warranty information, refer to the owner's manual (see Additional Information).

WARNING: The HNS810TM is to be installed as part of a fixed wire electrical installation. By law such installations must be made by an electrical contractor or similarly qualified person.

Download the Free S-Click iOS or Android App!
Search 'S-Click' on the Apple App Store or Google Play Store to find and download the S-Click App. The S-Click App can be used to adjust all device settings and set timers. The S-Click application is required to setup the device and set timers; the device cannot be configured from the device itself.

The device can only be made discover-able by pressing a button on the unit itself. This is to ensure that only those with access can adjust the time schedule.

(HNS810TM)

Warranty

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

Specifications

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	CABAC
SKU	HNS810TM
Barcode #	9318674273240
Package Weight	0.079kg
Package Width	0.025m
Package Height	0.080m
Package Length	0.090m

View Datasheet

TYPE	VALUE
Type	Timer
Brand	Cabac
Rated Current (A)	16(8)
Height (mm)	90
Width (mm)	17.5
Depth (mm)	59
Protection	IP20
Mounting	Din Rail
Battery Backup	Yes
Number of Modules	1
Voltage (V)	240
Programming Type	Digital
Program Time	168 Hours

Reviews

2.0

2 Reviews

5 STARS

4 STARS

3 STARS

2 STARS

1 STAR

Write a review

Luke

Missing Two Critical Elements on 7 March 2022

It's a great idea but it fails in two critical areas.... 1. You have to make physical contact with the switch in order to alter any schedules. So what's the point of having Bluetooth? I expected to be able to modify schedules and have a "boost" function that I could use remotely at will. 2. No manual override! ------It's a failure. It works well, but without those two things, I would never invest in another.

wfdTamar

Not for dummies on 17 December 2020

End user review (an IT Tech). This is not what I would expect of a bluetooth device. The point of Bluetooth is you can configure it from a distance, in this case probably from the comfort of your home (if within range). What this doesn't tell you is you have to be at the timer and press pair for 10 seconds EACH TIME you want to have a configuration session! It doesn't constantly transmit a bluetooth signal. Defeats one of the benefits of Bluetooth. The other thing is there's no simple way to have Always Off or Always On (as you have with an analogue timer). You can't have one timer run from 00:00 to 23:59 because that causes a 1 minute power cut. It won't do 00:00 to 00:00 (24 hours later), so the only way to achieve it is 2 timers that overlap (08:00 to 20:00 & 19:59 to 08:01) - save that as 'Always on'. It's impossible to create an Always Off timer (though you can turn it off with the circuit breaker ). Once you know all this and provided you don't need to change config often probably not a big deal, but I do wonder about trying to explain to someone not familiar with it (a visitor if you're not home) how to turn on the hot water if it's been off. I do think there's a case for having a manual override On switch (and probably Off - as there is on analogue timers). Applicable to any Bluetooth timer Another thing that worries me is how long Bluetooth or this version of Bluetooth will be available on phones etc. Most of these kind of standards disappear eventually and try to find a device that can communicate to an old one (think serial or scuzzy cables).
