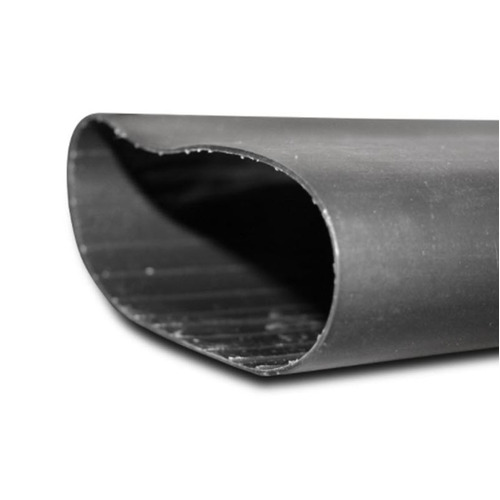

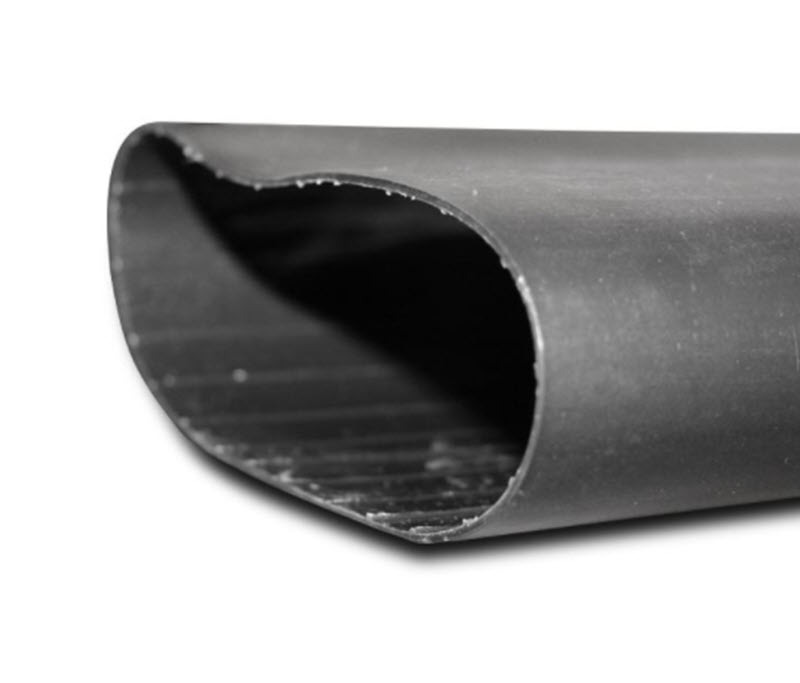

        Cabac SMDW12-3TK | Glued Heat Shrink Medium Wall 12-3mm 1200mm Black

        Description:

        SMDW/STDW flexible heat shrinkable tubing is made from radiation crosslinked Polyolefin. Specially designed for insulating, protecting and sealing electrical connections and joints in medium and low-voltage cables, which was installed on splices and joints. It is also resistant to chemicals, UV, moisture and oils.

        The TK version of the tube has a hot melt glue liner that melts as the tube is shrunk and creates a strong bond between the cable jacket and the tube. The joint can then be directly buried or even submerged in water. The tubing can also be supplied unlined for insulation and mechanical protection.

        Features:

        • Length: 1.2m
        • Shrinkage: 12mm - 3mm
        • Heatshrink Colour: Black
        • Wall: Medium
        • Pre-Shrink Diameter (mm): 12
        • After-Shrink Diameter (mm): 3

        (SMDW12-3TK)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand CABAC
        SKU SMDW12-3TK
        Barcode # 9318674529088
        Shipping Weight 0.2000kg
        Shipping Width 0.012m
        Shipping Height 0.011m
        Shipping Length 0.020m
        Shipping Cubic 0.000180000m3
        TYPE VALUE
        Type Heat Shrink
        Brand Cabac
        Colour Black
        Pre-Shrink Diameter (mm) 12
        After-Shrink Diameter (mm) 3
        Heatshrink Tube Length (m) 1.2
        Recovered Wall Thickness (mm) 1.8
        Wall Medium
        UV Resistance No Colour Change & Crack
