        Description

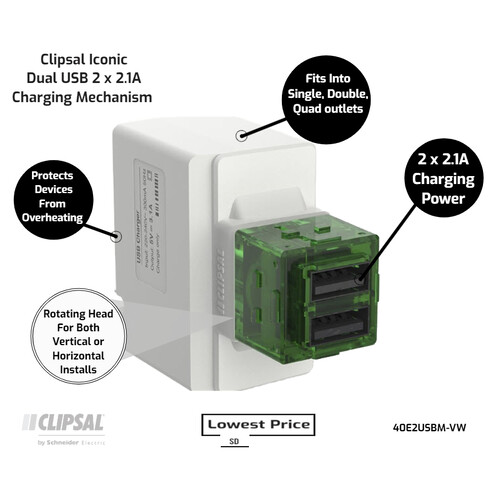

        Clipsal Iconic 40E2USBM-VW | Dual USB 2 x 2.1A Charging Mechanism Vivid White

        The Clipsal Iconic Dual USB Charging Mechanism makes it simple to charge multiple devices at home. With dual USB Type-A connectors, this USB outlet allows you to create an instant charging station in your home or office.

        Clipsal Iconic is a modern electrical accessories range, based on a slim, sleek, clean design that is easy to customise and blends in perfectly with any environment.

        Features

        • The dual-port, USB charging mechanism has been designed to eliminate bulky chargers by providing a universal charging solution whilst freeing up socket outlets.
        • Providing two dedicated independent ports that optimise charging whilst monitoring the temperature of the device to ensure internal components don’t overheat.
        • This patented technology has the added advantage that enables the mechanism to be installed into harsh temperature environments.
        • The charging mechanism also includes a patented rotating head so that correct orientation of the outlets can be provided in both horizontal or vertical plates.
        • The charger fits perfectly into the Iconic single, double or quad power outlets and can be accommodated in a deep wall box or standard mounting bracket
        • Multiple chargers can be mounted into a single wall plate eliminating the need for a power board or the manufacturer’s original supplied charger.
        • These energy-efficient USB Charger Mechs are compatible with both Apple® and Androidâ„¢ devices and use less than 0.07W of power while in Standby mode.
        • Clipsal Dual Usb Charger, 2 X 2.1A Max Per Port White

        (40E2USBM-VW)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Clipsal in home warranty

        Features

        Features:

        • Input Voltage: 220-240V ac 50hz
        • Output Voltage: 5V dc
        • Output Current: Max 2.1A per port (Max 3.1A for the module)
        • Standby Power <70mW Efficiency: >78%
        • Charging: BC1.2, cable compensation & Smartcharge
        • Operating Temperature: 0°-45° C Ambient
        • Operating Humidity: 5% ~ 90%
        • Relative Humidity, Non-Condensing Storage Temperature: 0°-60° C
        • Storage Humidity: 5% ~ 90% Relative Humidity, Non-Condensing
        • USB Connection type: 2 x USB A-Type
        • Input Connections 120mm flyleads, 22 AWG (0.64mm dia, 0.33mm²) terminal block supplied
        • IP Rating: IP20 Indoor Use Only
        • Rotating head angle: 180° Lifetime insertion of USB 10,000 cycles
        • Protection: Short circuit, Over Current and Over Temperature (self regulates output current)
        • Depth from rear of plate: 55mm (suits deep wall boxes)
        • Plate compatibility: Suitable for 40 Mech compatible wall plates (e.g. Iconic).
        • Not suitable for 30 series apertures.
        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU 40E2USBM-VW
        Barcode # 9311554788308
        Package Weight 0.100kg
        Package Width 0.065m
        Package Height 0.040m
        Package Length 0.085m
        TYPE VALUE
        Type Switches
        Brand Clipsal by Schneider Electric
        Range Clipsal Iconic
        Colour Vivid White
        Height (mm) 48
        Width (mm) 27
        Depth (mm) 59
        Additional Feature USB Outlet
        Voltage (V) 220-240V
        Maximum load current with 2 outputs used simultane 3.1A
        Integrated connection type 2 USB 2.0 type A 5 V DC, maximum load current: 2.1 A
