Learn more by watching our Clipsal Iconic 41ECSFWM | Connected AC Fan Controller | Bluetooth video.
Additional related video.
Additional related video.

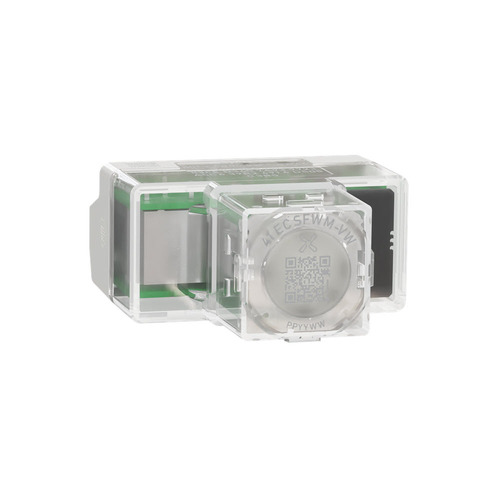

The Clipsal Iconic 41ECSFWM Fan Controller lets you easily integrate any 3-speed 240V ceiling fan into your Wiser smart home system. It comes with Bluetooth Low Energy (BLE) as the default mode, allowing you to control the fan through the Wiser by SE app or directly from the wall switch. This feature adds both convenience and comfort.
The controller also has a time delay option for better control. Its modular design makes installation simple and offers easy upgrade options that fit with Iconic wall plates. If you're looking to expand your smart home, you can switch the controller from BLE to Zigbee mode for full integration with the Wiser system.
Q: What type of fans is this controller compatible with?
A: It works with any 3-speed 240V AC ceiling fan.
Q: Can I control the fan using a smartphone?
A: Yes, you can control it using the Wiser by SE app in BLE mode.
Q: Is it possible to upgrade the controller for full smart home integration?
A: Yes, you can convert it from BLE to Zigbee mode for full integration with a Wiser smart home system.
(41ECSFWM)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Clipsal in home warranty
Specification | Details |
---|---|
Product brand | Clipsal |
Range | Iconic |
Aesthetic name | Iconic, Iconic Essence, Iconic Styl |
Product or component type | Connected switch |
Concentrator compatibility | Wiser hub generation 1 |
Mobile App name | Wiser by SE |
Device presentation | Mechanism |
Technology type | Electronic |
Number of rocker | 1 |
Actuator | Push-button |
Load type | 230 V AC fan: 150 W |
[Ue] rated operational voltage | 220...240 V AC 50 Hz |
Fuse type | 220...240 V 50 Hz |
Protection type | Over temperature protection, Thermal protection |
Colour tint | Vivid white (VW) |
Number of modules | 1 module |
Local signalling | Fan speed: 1 LED (amber/green/red) |
Signalling function | Fan speed |
Control type | OFF-LOW-MEDIUM-HIGH fan speed controller, fan speed control, By mobile application |
Software name | Wiser by SE App: fan control |
Maximum number of connected devices | 3 (switch) |
Technology type | Bluetooth low energy default, Zigbee |
Communication network type | Wireless (2.4 GHz), 2.5 mW at < 50 m |
Memory description | Backup memory - date and time for 6 h, Backup memory - program for indefinite period |
Material | Plastic |
Mounting support | Grid |
Device mounting | Flush |
Fixing mode | Clip-in |
Fixing center | 84 mm |
Type of installation | Indoor installation |
Embedding depth | 53 mm |
Depth | 58 mm |
Width | 48 mm |
Height | 22 mm |
These specifications and characteristics outline physical, mechanical, electrical details.
Brand | Clipsal by Schneider Electric |
SKU | 41ECSFWM |
Barcode # | 9311554816483 |
Shipping Weight | 0.0540kg |
Shipping Width | 0.095m |
Shipping Height | 0.040m |
Shipping Length | 0.080m |
Shipping Cubic | 0.000304000m3 |
TYPE | VALUE |
---|---|
Type | Fans & Ventilation |
Brand | Clipsal by Schneider Electric |
Range | Clipsal Iconic |
Colour | Vivid White |
Voltage (V) | 220-240V |
Time Delay | 1s - 24hr configurable via App |
Technology | Bluetooth |
