    Description

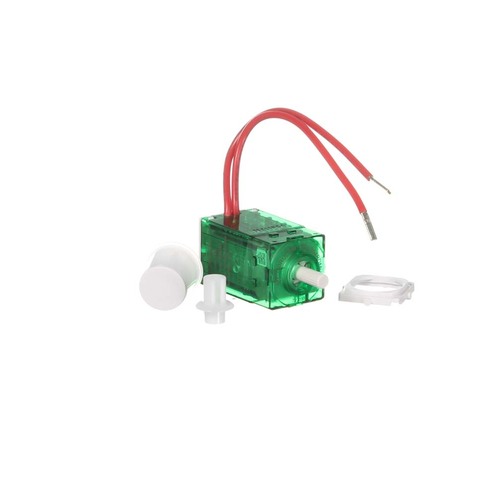

    Clipsal Iconic 42E350RUD2M-VW | Universal Dimmer mechanism, Rotary, 350W

    The Clipsal Iconic rotary universal dimmer mechanism has been designed to provide optimum dimming capabilities to most modern loads. The autodetect circuitry optimises the dimmer so that the correct mode of operation is automatically selected for dimming leading edge or trailing edge compatible loads.

    A user-configurable minimum brightness setting allows the minimum brightness to be set after the mechanism has been installed into a plate and fixed to the wall.

    The robust design includes over-temperature, over-current as well as short circuit protection.

    Features:

    • Robust universal dimming technology for smooth full-range control
    • 2 wire design, 350W max, 1W min load
    • Compatible with many different dimmable loads, including ceiling fan motors.
    • Minimum brightness adjustment down to 1% (Load dependent)
    • In-built over-current, over-temp and short circuit protection
    • Supplied with VW (Vivid White) knob kit
    • Optimised for controlling Clipsal TPDL series LEDs
    • Offering adjustable minimum brightness to suit many loads
    • Clipsal Iconic is a modern electrical accessory range based on a slim, sleek, clean design that is easy to customise and blends perfectly with any environment.

    (42E350RUD2M-VW)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 2 Year
    Commercial Use: 2 Year
    Warranty Method: Clipsal in home warranty

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU 42E350RUD2M-VW
    Barcode # 9311554788193
    Package Weight 0.059kg
    Package Width 0.065m
    Package Height 0.040m
    Package Length 0.080m
    TYPE VALUE
    Type Switches
    Brand Clipsal by Schneider Electric
    Range Clipsal Iconic
    Colour Vivid White
    Voltage (V) 220-240V
    Maximum Load 350 W
    Dimming Type Trailing or Leading Edge Phase Control (dynamically auto-selected)
    Min Load 1W
    Minimum Brightness adjustment: Yes, mechanical end-stop, user configurable down to 1% (load dependant)
    Compatible Loads: *Dimmable LED lighting with compatible electronic transformers Incandescent lighting, Halogen 240 V lamps Low voltage halogen/dichroic lighting with c
