        Description

        Clipsal Iconic Wiser CLP501401 | Wiser infrared (IR) Convertor | Zigbee Enabled | Connect to Wiser Iconic App

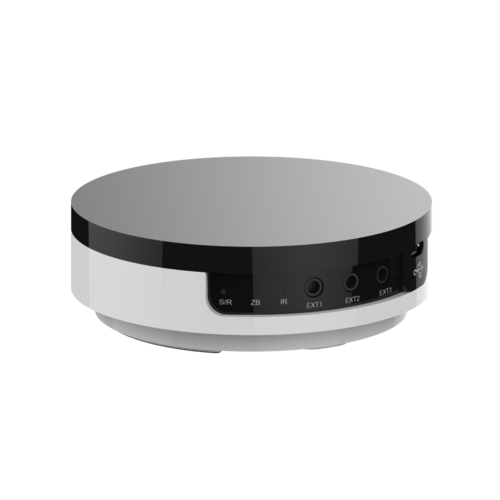

        Clipsal Iconic Connected Zigbee Wiser infrared (IR) Convertor

        The Wiser IR Converter controls TVs, split air conditioners and HiFi systems via the Wiser by SE app using infrared (IR) technology. It can be mounted on the ceiling or placed on a tabletop.
        A Clipsal Wiser Smart Home lets you personalise your home to fit your needs and manage it with one simple app. It’s a simple solution that can be easily integrated into any home, old or new.
        All Wiser Smart Home products are compatible with most of Clipsal’s existing wiring devices, including the Iconic switch range, making design and function upgrade simple and seamless.
        With Google Home or Amazon Echo, you can also control your Clipsal Wiser Smart Home with voice commands. Control your home the way it suits you.

        Features:

        • The Wiser IR Converter (the device) is a control device to automate your home IR controlled devices such as televisions, air conditioners, music systems and so on.
        • The device converts mesh network signal to infrared signal.
        • 360° IR signal coverage
        • 3 sockets for IR extension cables
        • Supports up to 8 types of IR controlled devices
        • Supplied with plug adapter
        • Powered via either the Micro USB port (5 V DC, up to 1 A) or 4x AA Alkaline batteries
        • Includes 3 IR ports to connect extendable IR emitter cables and an upgradable IR database
        • 360-degree control range ≤8 m (from Wiser IR Converter to IR controlled device)
        • This device has an indicator light with 2 LEDs that guide you in the dark
        • Wide-angle detect a range of 180° (vertical angle) and 360° (horizontal angle)

        Dimensions:

        • Diameter 100mm
        • Width 32.5mm

        Power source:

        • AC adaptor (included in the package) or 4× AA Alkaline batteries (not included in the package)

        Zigbee at 2.4GHZ

        Using the IR extension cable

        • The device supports IR extension cables (3 sockets). When the Wiser IR Converter is installed in a closed cabinet, use up to 3 IR extension cables to route the infrared signals to the IR-controlled devices.
        • It is recommended to use Schneider Electric 8050LD or 8050/2LD IR extension cables. Other brands of IR extension cable with a 3.5 mm mono mini-plug can also be used. However, the performance cannot be guaranteed.

        (CLP501401)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Features

        Download the complete Clipsal Wiser System User Guide - Click Here

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU CLP501401
        Barcode # 9311554812287
        Package Weight 0.394kg
        Package Width 0.069m
        Package Height 0.019m
        Package Length 0.070m
        TYPE VALUE
        Type Wiser Infrared (IR) Converter
        Brand Clipsal by Schneider Electric
        Range Clipsal Iconic
        Width (mm) 32.5
        Power Source AC adaptor or 4× AA Alkaline batteries
        Diameter (mm) 100
        IP Rating IP20
        Technology Zigbee 3.0
        Battery Life Up to 1 Years
