    Video

    Learn more by watching our Clipsal Iconic Wiser CLP5015WBZ | Wiser Micro Module Blind Controller | Zigbee | Wiser Iconic App video.

    Description

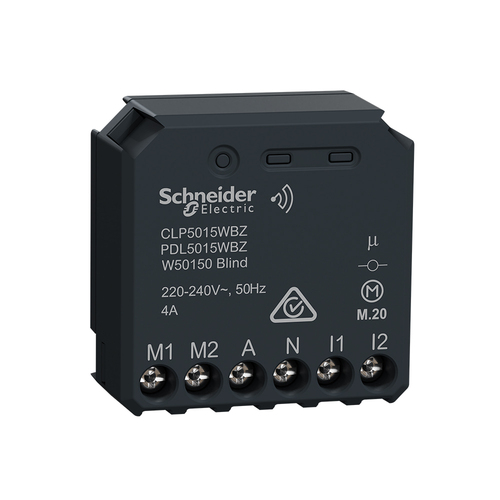

    Clipsal Iconic Wiser CLP5015WBZ | Wiser Micro Module Blind Controller | Zigbee Enabled | Connect to Wiser Iconic App

    Clipsal Iconic Connected Zigbee Wiser Blind Controller

    Transforms a conventional double push-button switch into a connected device you can control 240V twin active blind motors from the switch or through the Wiser by SE app.

    The Wiser Micro Module Blind Controller combines the advantages of smart shutter functionality with ordinary momentary (bell press) push-button switches.

    The Blind Control Micromodule controls 240V twin active blind and shutter motors equipped with an end position switch. It transforms a conventional double push-button switch into a connected device you can control from the switch or through the Wiser by SE app. Up to 10 double momentary push-button switches can be connected to one Wiser Micro Module Blind Controller to control a connected blind or roller shutter. Relay contacts mechanically locked against each other help to prevent simultaneous triggering of the two relay outputs.

    Features:

    • It transforms a conventional push-button switch into a connected device you can control from the switch through the Wiser by SE app or voice control.
    • Up to 10 momentary push-button switches can be connected to one Wiser Micro Module Blind Controller to control a connected blind or roller shutter.
    • The Blind Control Micromodule controls 240V twin active blind and shutter motors equipped with an end position switch.
    • Relay contacts mechanically locked against each other help to prevent simultaneous triggering of the two relay outputs.
    • 1 blind channel, mechanically and electronically locked against each other

    Direct Operation

    • Operate the Wiser Blind Controller via a connected momentary push button (Wiser micro module switch can connect up to 10 push buttons)

    Connect via Micro module

    • Protection of the motor against damage with two mutually mechanically and electronically locked relay contacts

    Remote operation via Wiser by SE app

    • Operate the Wiser Micro Module Blind Controller using the app on your smartphone (the micro module Blind Controller must be paired to the Wiser Hub)
    • Set the running time
    • Set a timer or time schedule via the app

    Installation Method

    • Mount in-wall box with a minimum depth of 26 mm. Notes:
    • If you place the Dimmer module directly behind the external push button, use a deep wall box.
    • Neutral Conductor Required.
    • Zigbee Certified

    Maximum load

    • Motor = 500VA

    (CLP5015WBZ)

    Warranty

    Warranty starts from Invoice Date

    Domestic Use: 1 Year
    Commercial Use: 1 Year
    Warranty Method: Clipsal in home warranty

    Features

    Download the complete Clipsal Wiser System User Guide - Click Here

    Specifications

    These specifications and characteristics outline physical, mechanical, electrical details.

    Brand Clipsal by Schneider Electric
    SKU CLP5015WBZ
    Barcode # 9311554812331
    Package Weight 0.076kg
    Package Width 0.043m
    Package Height 0.022m
    Package Length 0.043m
    TYPE VALUE
    Type Micro Module
    Brand Clipsal by Schneider Electric
    Range Clipsal Iconic
    Height (mm) 43
    Width (mm) 43
    Depth (mm) 22
    IP Rating IP20
    Channels 1 blind channel, mechanically and electronically locked against each other
    Technology Zigbee 3.0
