        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs
        Description

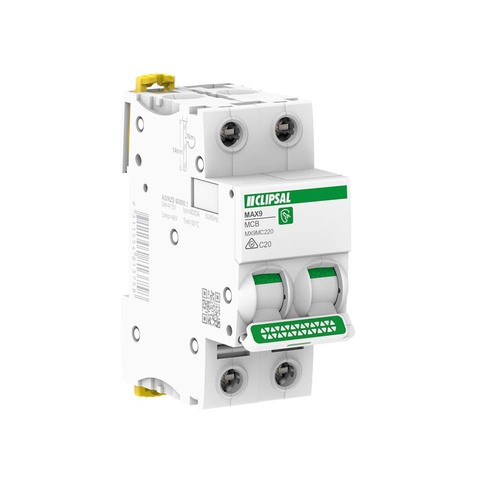

        Clipsal MX9MC220 | 20amp Two Pole Circuit Breaker 6kA | MAX9

        The Clipsal MX9MC220 MAX9 product is a low voltage miniature circuit breaker (MCB).
        MX9MC220 is a 2P circuit breaker with 2 protected pole and 20A In rated current and C tripping curve.

        Miniature Circuit Breakers

        Features and benefits:

        • Unique new white finish for a fresh modern look.
        • The standard characteristic is C-Curve suits most applications.
        • Complete solution with 1, 2 & 3 pole versions.
        • Option of 1P,  2P & 3P 63A MCB with red toggle where MCB is used as the main incomer.
        • Compact standardised and consistent module dimensions.
        • Lift-up terminals. ‘No hot spot’ terminations and all cable strands are locked in.
        • Combination head screws, choice of screwdrivers.
        • MCB mechanism is free tripping and If the switch is held in the ON position, the MCB will still operate.
        • Clipsal MCBs allow line or load cables to be connected at either top or bottom for greater installation flexibility
        • The Icn rated short circuit breaking capacity is up to 6000A at 415VAC conforming to AS/NZS 60898 standard.
        • This product is compliant with AS/NZS 60898 standard.
        • This miniature circuit breaker protects the circuit against short circuits and overload currents.
        • The MAX9 is targeted to residential for individual and collective buildings.
        • It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles.
        • The Ue operational voltage is 415VAC.
        • The Ui rated insulation voltage is 500VAC.
        • The operating frequency is 50Hz or 60Hz.
        • It can be mounted on a DIN rail for modular installation.
        • Its width is 4 pitches of 9mm.
        • The product colour is white (RAL9003).
        • The dimensions are (W) 36mm x (H) 85mm x (D) 75mm.
        • According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in the enclosure.
        • The operating temperature is -25-70 øC.
        • The storage temperature is -40-85 øC.

        (MX9MC220)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9MC220
        Barcode # 9311554813758
        Package Weight 0.211kg
        Package Width 0.085m
        Package Height 0.075m
        Package Length 0.035m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 20A
        Voltage (V) 415Vac
        Breaking Capacity 6kA
        Curve C-curve
        Poles 2P
        Equivalent Max 4 Reference 4CB220/6
        Equivalent Hager Reference MSN220
