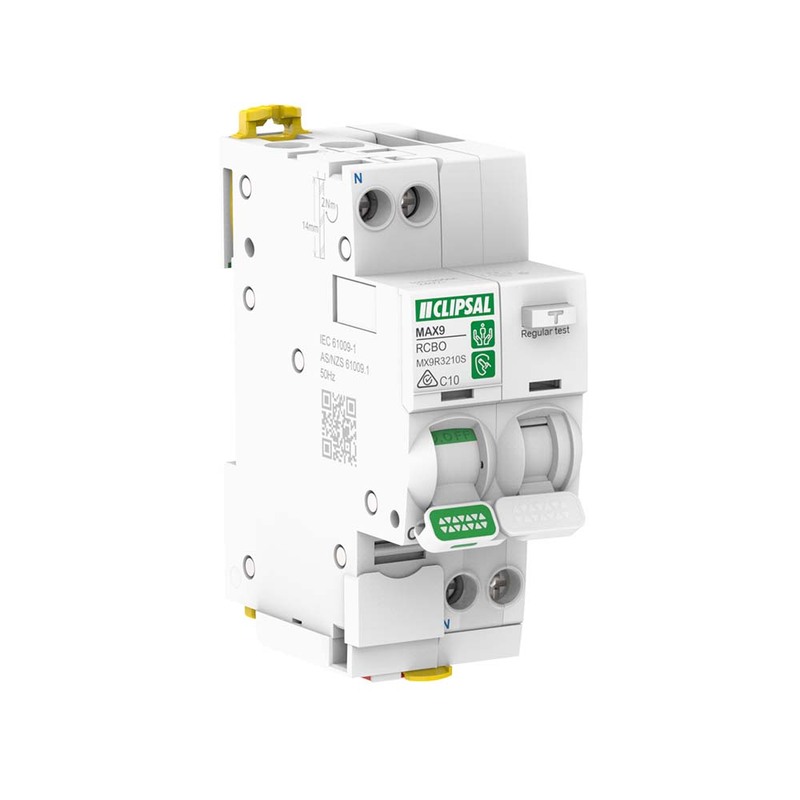

        Clipsal MX9R3210S | 10A MAX9 RCBO 1PN C | 30mA Type A-SI

        The Max9 Clipsal MX9R3210S product is a residual current breaker with overcurrent protection (RCBO).
        The MX9R3210S is a 1P+N circuit breaker with 1 protected pole, 10A In rated current at 30øC and C tripping curve.

        MCB/RCD Combinations – 2 module Type A-SI RCBO

        Clipsal switchboard mounted combination MCBs and RCDs fall into two main categories - electro-mechanical and electronic.

        The electro-mechanical devices derive their ‘action energy’ from actual leakage (residual) current.
        They work on an electromagnetic principle. A toroidal transformer is used to detect the magnetic fields created by current flowing in the Active and Neutral wires of the protected circuit, which pass through the RCD.
        Taking into account the magnitude and direction of these currents, under normal circuit conditions the vector sum of the currents (known as the residual current) is effectively zero and the magnetic fields cancel.
        Should the condition occur where a current flows from an Active or Neutral wire to Earth, the residual current will not be zero and the magnetic field will establish a tripping signal to disconnect the protected circuit. These devices are not voltage dependant.

        Features and benefits:

        • Separate RCD trip flag for easy trip diagnosis
        • The same base module as the MCBs. Uniformity in space requirements and installation.
        • Top and bottom line and load compatible for ease of installation
        • Green strip on the toggle that indicates the opening of all the poles
        • Top and bottom clip allowing dismounting with comb busbar in place
        • Busbar compatible through an insulated slot

        Applications

        • Super Immune - A-SI Type
        • High dependency installation.

        Specifications:

        • The operating frequency is 50Hz.
        • The earth leakage protection class is type A-SI (Super Immunised) with a sensitivity of 30mA.
        • The earth-leakage protection time delay is instantaneous.
        • The Icn rated short circuit breaking capacity is up to 6000A at 240VAC.
        • It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
        • This product protects against short circuits, cable overload, electrical shock by indirect contact and fire hazards.
        • It brings safe, reliable solutions for commercial and industrial applications with high breaking capacity.
        • It has an RCM quality label.
        • The Ue rated operational voltage is 240VAC.
        • The Ui rated insulation voltage is 440VAC.
        • It has a Uimp rated impulse withstand voltage of 4kV.
        • It can be mounted on a DIN rail for modular installation.
        • The width in 9mm pitches is 4.
        • The dimensions are (W) 36mm x (H) 91mm x (D) 75mm.
        • The product colour is white (RAL9003).
        • The product weight is 268g.
        • According to IEC 60529 standard, the degree of protection is IP20.
        • The pollution degree is 2.
        • The operating temperature is from -25øC to +70øC.
        • The storage temperature is from -40øC to +85øC.
        • This product complies with IEC 61009-2-1 and EN/IEC 61009-1 standards.

        (MX9R3210S)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9R3210S
        Barcode # 9311554813093
        Package Weight 0.220kg
        Package Width 0.044m
        Package Height 0.080m
        Package Length 0.102m
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 10A
        Voltage (V) 240Vac
        Breaking Capacity 6kA
        Earth Leakage Sensitivity 30mA
        Earth Leakage Protection Class A-SI type
        Curve C-curve
        Poles 1P+N
        Tripping Standard
        Equivalent Max 4 Reference 4RCBM210SI30
