Ultimate Efficiency and Professional Finish
MCB/RCD Combinations – 2 module Type A RCBO
These 240V single-phase + Neutral electronic combination devices are 2 modules wide and are compatible with top feeding MAXBAR.
Separate flag indication for MCB or RCD tripping enables easy and speedy trip diagnosis.
Electronic type devices derive their ‘action energy’ from the mains supply. They typically utilise much simpler toroidal sensors, coupled to sensing amplifiers, filters, discrimination circuits and triac driven solenoids to operate the contacts.
The major advantages of electronic types lie in their simple construction, improving their chances in areas in adverse conditions where vibration and environmental conditions affect electrical products. The added benefit of electronic types is that the filters prevent unwanted tripping. These devices are voltage-dependent.
Applications Standard – A Type

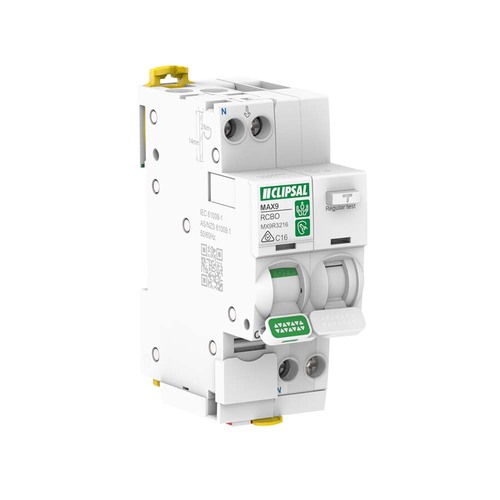

The MAX9 Clipsal MX9R3216 is a residual current breaker with overcurrent protection (RCBO).
The MX9R3216 is a 1P+N circuit breaker with 1 protected pole, 16A In rated current at 30øC and C tripping curve.
Features:
(MX9R3216)
Warranty starts from Invoice Date
Domestic Use: 7 Year
Commercial Use: 7 Year
Warranty Method: Clipsal in home warranty
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | MX9R3216 |
| Barcode # | 9311554813017 |
| Shipping Weight | 0.2220kg |
| Shipping Width | 0.038m |
| Shipping Height | 0.080m |
| Shipping Length | 0.102m |
| Shipping Cubic | 0.000310000m3 |
| TYPE | VALUE |
|---|---|
| Type | Circuit Protection |
| Brand | Clipsal by Schneider Electric |
| Range | Clipsal - Max9 |
| Rated Current (A) | 16A |
| Voltage (V) | 240Vac |
| Breaking Capacity | 6kA |
| Earth Leakage Sensitivity | 30mA |
| Earth Leakage Protection Class | A-type |
| Curve | C-curve |
| Poles | 1P+N |
| Tripping | Standard |
| Equivalent Max 4 Reference | 4RCBM216/30 |
| Equivalent Hager Reference | ADA916T |
