Name: Clipsal MX9R3520 | 20A MAX9 RCBO 3PN C | 30mA Type A
Brand: Clipsal by Schneider Electric
SKU: MX9R3520
Price: 120.94 AUD
Availability: InStock

Search Results:

Products
Pages

Search Results:

Product Category Suggestions

Pages

Video

Ultimate Efficiency and Professional Finish

MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal RCBOs and AFDDs

Description

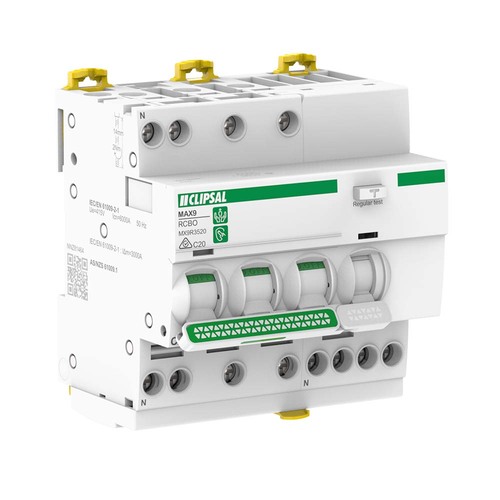

Clipsal MX9R3520 | 20A MAX9 RCBO 3PN C | 30mA Type A

The MAX9 Clipsal MX9R3520 product is a residual current breaker with overcurrent protection (RCBO).
The MX9R3520 is a 3P+N circuit breaker with 3 protected poles, 20A In rated current at 30øC and C tripping curve.

3P+N, 5-Module RCBO C-Curve, Type A

AS/NZS 3000:2018 bring in a major change for residential applications. It states that additional protection by RCDs with a maximum rated residual current of 30mA shall be provided for all final sub-circuits. This clause applies irrespective of the circuit amperage or the number of phases. This includes circuits for air conditioners, cooktops, hot water systems, pool pumps, etc. that were historically not protected by RCD. MAX9 3P+N RCBO helps to provide a complete RCBO solution for 3 phase applications.

Features and benefits:

Full installation flexibility with the option of having the line connection either from top or bottom.
Type A earth leakage protection to help provide additional safety to end-user
The Green strip on the toggle indicates the opening of all the poles.
Easy diagnosis with visible red tripping flag to identify earth leakage tripping
Clear marking of neutral on left side

Applications:

Ideal for retrofit installations where pole space is a problem.
Small width allows a greater number of MCB/RCDs to be installed in the one enclosure

Specifications:

The operating frequency is 50Hz.
The earth leakage protection class is a type A with a sensitivity of 30mA.
The earth-leakage protection time delay is instantaneous.
The Icn rated short circuit breaking capacity is up to 6000A at 415VAC.
It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles.
This product protects against short circuits, cable overload, electrical shock by indirect contact and fire hazards.
It brings safe, reliable solutions for commercial and industrial applications with high breaking capacity.
It has an RCM quality label.
The Ue rated operational voltage is 415VAC.
The Ui rated insulation voltage is 440VAC.
It has a Uimp rated impulse withstand voltage of 4kV.
It can be mounted on a DIN rail for modular installation.
The width in 9mm pitches is 10.
The dimensions are (W) 90mm x (H) 95mm x (D) 75mm.
The product colour is white (RAL9003).
The product weight is 500g.
According to IEC 60529 standard, the degree of protection is IP20.
The pollution degree is 2.
The operating temperature is from -25øC to +70øC.
The storage temperature is from -40øC to +85øC.
This product complies with IEC 61009-2-1 and EN/IEC 61009-1 standards.

(MX9R3520)

Warranty

Warranty starts from Invoice Date

Domestic Use: 7 Year
Commercial Use: 7 Year
Warranty Method: Clipsal in home warranty

Specifications

These specifications and characteristics outline physical, mechanical, electrical details.

Brand	Clipsal by Schneider Electric
SKU	MX9R3520
Barcode #	9311554813215
Shipping Weight	0.4980kg
Shipping Width	0.091m
Shipping Height	0.078m
Shipping Length	0.090m
Shipping Cubic	0.000639000m3

View Datasheet

View Brochure

View Manual

TYPE	VALUE
Type	Circuit Protection
Brand	Clipsal by Schneider Electric
Range	Clipsal - Max9
Rated Current (A)	20A
Voltage (V)	415Vac
Breaking Capacity	6kA
Earth Leakage Sensitivity	30mA
Earth Leakage Protection Class	A-type
Curve	C-curve
Poles	3P+N
Tripping	Standard
Equivalent Max 4 Reference	4RCBE420/30
Equivalent Hager Reference	ADM420T
