        Ultimate Efficiency and Professional Finish

        • MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
        • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from the main switch and distributes both active & neutral across all types of Clipsal  RCBOs and AFDDs

        Additional related video.

        Description

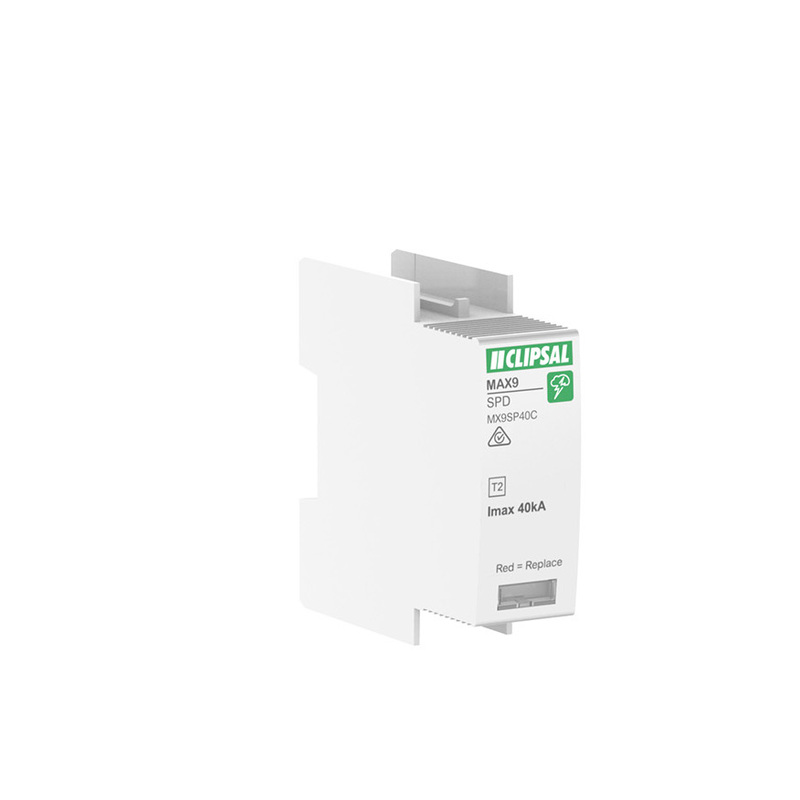

        Clipsal MX9SP40C | MAX9 SPD 1P 40kA Cartridge

        The Clipsal MX9SP40C MAX9 cartridge surge protection device is a modular surge arrester. It is a 1 Pole surge arrester.

        Surge Protection Device – SPD

        When lightning strikes, there are no second chances. The MAX9 range of surge protection devices won’t let you down. Modern Australian homes have an estimated $15,000 worth of electronics unprotected against voltage surges. From fridge to washer/dryer, smart appliances have a lot of electronic components inside them. Surge protection strips only offer limited protection to the devices connected to them. Items that are not compatible with plug strips such as washers, dryers, refrigerators, stoves, and lighting can be protected against voltage surges with a Surge Protective Device.

        One device can help to protect the whole house from voltage spikes.

        Features and benefits:

        • The maximum discharge capacity of 40kA (8/20μs)
        • Uniform terminal heights and modular size enable neat and efficient installation
        • Cartridge replacement is quick and easy
        • This MAX9 surge arrester is compatible with TN-C, TN-S and TT earthing systems.
        • The maximum discharge current is 40kA.
        • The nominal discharge current is 15kA.
        • It ensures the protection of electronic devices against destruction by lightning.
        • It is recommended in building supplied by overhead lines and protected.
        • It is also recommended in buildings protected by a lightning arrester combined with a type 2 surge arrester.
        • It has an RCM quality label.
        • The Ue rated operational voltage is 240VAC +/-6%.
        • The Up maximum voltage protection level is 1.6kV.
        • The Uc maximum continuous operating voltage is 350VAC.
        • The width in 9mm pitches is 2.
        • The dimensions are (W) 18mm x (H) 85mm x (D) 64mm.
        • The product colour is white (RAL9003).
        • The product weight is 51g.
        • According to IEC 60529 standard, the degree of protection is IP20 and IK03 conforms to IEC 62262 standard.
        • The operating temperature is from -25øC to +70øC.
        • The storage temperature is from -40øC to +85øC.
        • This product complies with EN 61643-11 and IEC 61643-11 standards.

        (MX9SP40C)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 7 Year
        Commercial Use: 7 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU MX9SP40C
        Barcode # 9311554814175
        Shipping Weight 0.0700kg
        Shipping Width 0.060m
        Shipping Height 0.060m
        Shipping Length 0.018m
        Shipping Cubic 0.000065000m3
        View Datasheet
        View Brochure
        View Manual
        TYPE VALUE
        Type Circuit Protection
        Brand Clipsal by Schneider Electric
        Range Clipsal - Max9
        Rated Current (A) 40kA
        Voltage (V) 240Vac
        Earth Leakage Protection Class Type 2
        Poles Cartridge
        Equivalent Max 4 Reference 940PM
        Equivalent Hager Reference SPN040D
