        Learn more by watching our Clipsal RMXPH312 | 3 Phase 12 Module Busbar Comb 3P+N | Pin Type video.

        Description

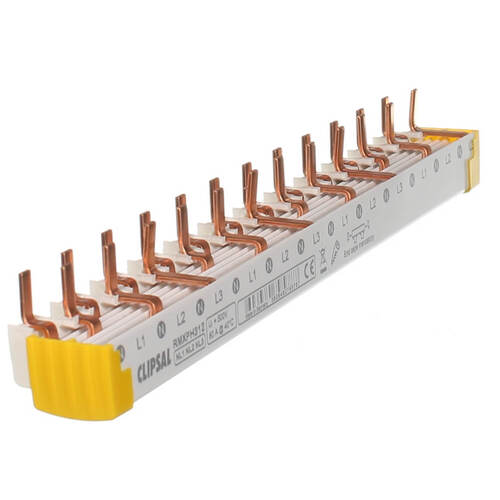

        Clipsal RMXPH312 | 3 Phase 12 Module Busbar Comb 3P+N | Pin Type

        The Clipsal RMXPH312 is a 12 module pin type copper busbar with plastic insulation on the body and the ends. It is designed for 3 phase and neutral connection on the Resi Max Clipsal range. The comb busbar reduces wiring effort, makes for a safer installation as it prevents hot spots and can be installed up to 10 times faster than looping building wire.
        No looping required for neutral and active conductors.
        The teeth on the busbar has a 9mm pitch. Quality construction and tested to perform.

        Features

        • 12 Modules
        • 3P + N
        • 24 x 9mm pitches
        • Width 216mm
        • Current rated 63A @ 40°
        • Rated Insulation voltage 500V
        • Rated operational voltage 230V
        • SLIM Comb busbar is optimised for the SLIM RCBO
        • Resi MAX comb busbar reduces wiring effort, makes wiring easy and installations time efficient
        • Save valuable switchboard space with the SLIM RCBO, a 2 in 1 RCBO system in a thinner module
        • All devices are reliable and sturdy self-extinguishing material
        • The residential house symbol on all Resi MAX products is now easily identifiable
        • Resi MAX system complies with Australian standards - AS/NZS60898, AS/NZS61008, AS/NZS61009 and AS/NZS 60947-3

        (RMXPH312)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Clipsal in home warranty

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU RMXPH312
        Barcode # 3606480795787
        Shipping Weight 0.1570kg
        Shipping Width 0.027m
        Shipping Height 0.030m
        Shipping Length 0.220m
        Shipping Cubic 0.000178000m3
        TYPE VALUE
        Type Insulated Busbar
        Brand Clipsal by Schneider Electric
        Range Resi Max
        Rated Current (A) 63
        Width (mm) 216
        Number of Poles 3P+N
        Distance between way 18mm
        9 mm Pitches 24
        Number of ways 12 Ways N + L tooth connectors with 9mm pitch
        Total Number of 18mm Modules 12
