        Description

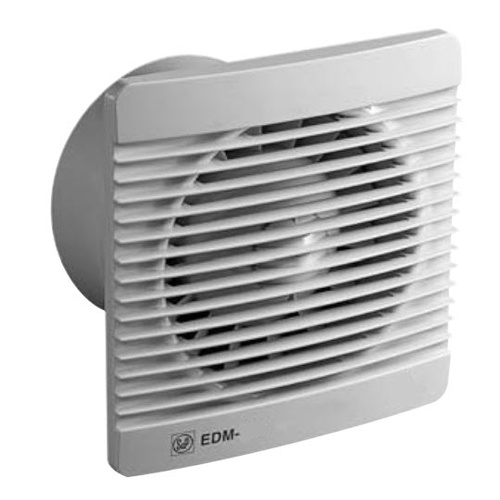

        Fantech EDM-100S | 100mm Wall / Ceiling Mounted Exhaust Fan


        The EDM Series can be wall or ceiling mounted and is suitable for exhausting stale and moist air from homes, town houses and commercial buildings.

        Construction

        • All units have weather and impact resistant housings.
        • Motors
        • Type - shaded-pole induction motor.
        • Electricity supply - single-phase 230V, 50Hz
        • Bearings - Ball
        • Maximum ambient temperature - 40°C
        • Class II insulation, IP44 rated*.
        • Grill: 155mm
        • Depth inc Grill and motor housing: 98mm
        • Distance of Motor Housing in wall space: 98mm
        • Depth inside wall space only not inc grill: 55mm
        • Speed: 41 rps
        • Avh DBA @ 3m: 34
        • Input Kwatts: 0.013
        • Amps: 0.1
        • Max Temp: 40 degrees C
        • Approx weight:0.48

        (EDM-100S)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 2 Year
        Commercial Use: 2 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Fantech
        SKU EDM-100S
        Barcode # 8413893601278
        Package Weight 0.651kg
        Package Width 0.160m
        Package Height 0.105m
        Package Length 0.160m
        TYPE VALUE
        Type Fans & Ventilation
