        Description

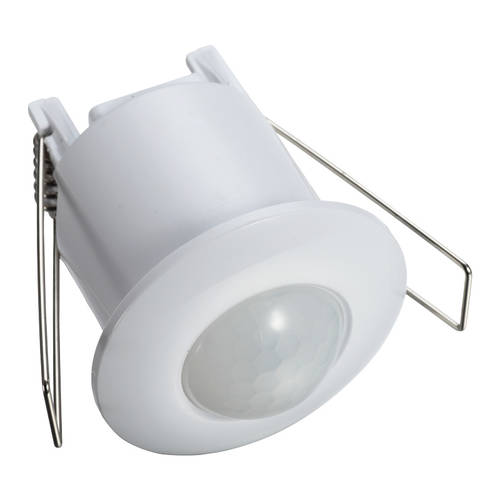

        ENSA PIR sensor Motion Activated Switch | ENSA-PS3

        The ENSA-PS3 is an intelligent sensor switch designed for recessed mounting in ceilings. It features configurable ambient light sensing, passive infrared motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

        Add three-step energy saving to any light with sensor switches:
        1) Daylight sensor: Activates motion sensor when lux levels fall below the limit
        2) Motion sensor: Detects movement, turns light on only when necessary
        3) On-timer: Light-on duration is set only as long as is required

        • Automatically activate and deactivate lighting for energy efficiency
        • Recessed ceiling mount, for indoor use only
        • 3-year warranty

        Features:

        • Daylight Sensing (adjustable): 3 ~ 2000 Lux
        • Dimensions: Ø50 x 65mm
        • Ingress Protection: IP20
        • Input Voltage: 220 ~ 240VAC 50Hz
        • Maximum Rated Load: 800W (resistive); 400W (inductive)
        • Motion Detection Range: 6m
        • Motion Detection Shape / Area: 360° circle
        • Motion Detection Speed: 0.6 ~ 1.5m/s
        • Mounting Type: Recessed ceiling
        • On-timer Delay (adjustable): 10s ~ 15min
        • Operating Environment: -20 ~ 40°C / 93% Relative humidity
        • Power Consumption (Sensing Mode): 0.5W
        • Recommended Installation Height: 2.2 ~ 4m

        (ENSA-PS3)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Ensa
        SKU ENSA-PS3
        Barcode # 9321890010094
        Shipping Weight 0.0810kg
        Shipping Width 0.060m
        Shipping Height 0.075m
        Shipping Length 0.080m
        Shipping Cubic 0.000360000m3
        TYPE VALUE
        Type Sensor
        Reviews
        5.0

        1 Reviews
        5 STARS
        1
        4 STARS
        0
        3 STARS
        0
        2 STARS
        0
        1 STAR
        0

        Write a review

        Clarence

        Excellent value on 17 January 2020

        Neat flush mount PIR sensor switch to fit with 40mm cut out. Fully adjustable time/lux sensitivity. Bunnings sell what appears to be a rebadged version for $10 more!
