        EVA2HPC3 | Schneider Charge | 3 Phase | Anti-tripping | Universal Peak Controller
        $328.90 $299.00 ex. GST
        Video

        Learn more by watching our EVA2HPC3 | Schneider Charge | 3 Phase | Anti-tripping | Universal Peak Controller video.

        Description

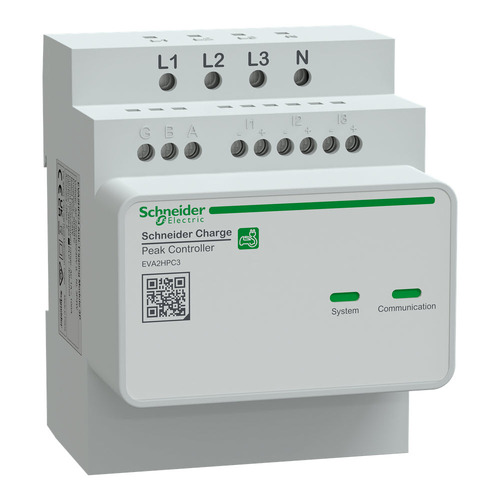

        EVA2HPC3 | Schneider Charge | 3 Phase | Anti-tripping | Universal Peak Controller

        The EVA2HPC3 Universal Peak Controller is an advanced anti-tripping module. It manages and optimises the power allocated to charging electric vehicles (EV). It acts as a load shedder, offering an anti-tripping system to ensure efficient and uninterrupted charging.

        The Peak Controller is designed for use in a three-phase network.

        One of the Universal Peak Controller's key features is its ability to adjust in real-time the maximum power allocated to the charging EV, taking into account the consumption of other loads within the house. This adaptive feature allows it to respond effectively to power needs, avoiding potential overloads or disruptions.

        The device is designed for indoor installation on a 35mm DIN rail. It communicates with the charging station using a Power Line Communication (PLC) system, which carries data on the same conductor as the AC electric power. This efficient method of communication ensures smooth coordination between the controller and the charging station.

        The EVA2HPC3 Universal Peak Controller is an essential accessory for EV owners using Schneider Charge charging stations. It allows them to manage their charging process effectively while ensuring compatibility with their home's power consumption.

        • 3 Phase.
        • Power load management - Avoid any disruption in the power supply and manage available power efficiently.
        • Din Rail Mounted
        • Use in conjunction with the EVH5A11N2C5, EVH5A11N2C7 or EVH5A22N2S Home Chargers
        • Home Anti-tripping is a power load management system that adapts the power supplied to charge the car continuously, considering home consumption*.
        • The Home Anti-tripping System calculates power availability by comparing the utility power limit and the home consumption gathered by a current transformer on the bottom of the main circuit breaker.
        • For photovoltaic applications, it continuously adapts the charging power, taking into account home consumption and self-generated energy (PV, wind, storage, etc.).

        (EVA2HPC3)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Clipsal by Schneider Electric
        SKU EVA2HPC3
        Barcode # 3606486998472
        Shipping Weight 0.5040kg
        Shipping Width 0.069m
        Shipping Height 0.070m
        Shipping Length 0.093m
        Shipping Cubic 0.000449190m3
        TYPE VALUE
        Type Load-shedder
        Brand Schneider Electric
        Range Schneider Charge
        Height (mm) 72
        Width (mm) 89
        Depth (mm) 69
        Depth (mm) 89
        Weight (kg) .196
        Power consumption in W 4 W
        Mounting Mode Din Rail
        Condition of use Indoor
        Possible maximum current provided to charging stat 50 A
