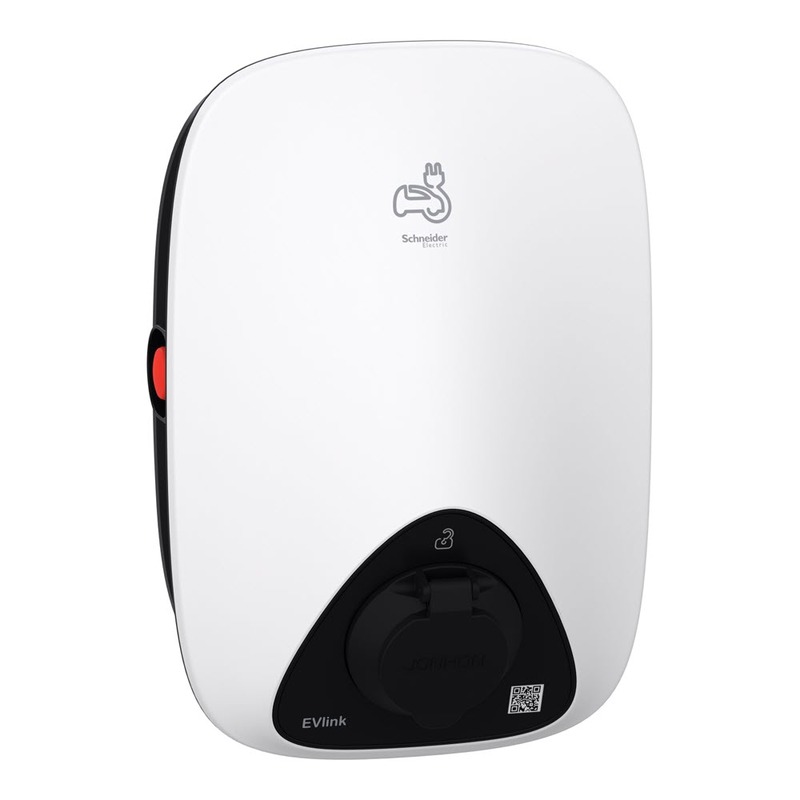

Learn more by watching our EVH4S07N2 | 7.4kW EVlink Home Charging Station 1P+N 1xT2 32A | RDC-DD | Schneider Electric video.
The EVH4S07N2 a powerful and reliable EVlink Home Charging Station designed for your convenience. With this charging station, you can conveniently charge your electric vehicle at home without worrying about affecting power availability.
EVlink Home allows a convenient vehicle charge at home without impacting power availability. This charging station is straightforward to install, protecting your car and you while ensuring the correct charge in a residential setting. A simple and easy-to-install charger that provides the correct charge for your EV, minimizing any peak impact and avoiding power overruns or any penalties associated, at an affordable price.
The EVH4S07N2 is a wall box charging station compatible with a home anti-tripping system (peak controller). The charging station can benefit from dynamic energy management by complementing it with an anti-tripping system to adjust the maximum power allocated to the charging electric vehicle in real time according to the consumption of other loads in the house.
It delivers 7.4KW power and features a T2 plug with a 32A charging capacity. The station is designed for 1 phase connection and comes with one socket-outlet T2 with a shutter.
The EVlink Home Charging Station is compact and space-saving. With a height of 409mm, a width of 282mm, and a depth of 148mm, it can easily fit in any corner of your garage or wall on your driveway.
The charging station features IP54 protection, which is dust and splash-proof, making it perfect for outdoor installation. You can confidently install it outside your home, knowing it will withstand the elements.
The EVH4S07N2 EVlink Home Charging Station is a high-quality, user-friendly, and affordable charging station that ensures your electric vehicle stays charged and is ready to go. It's a must-have for anyone who wants to enjoy the convenience of charging their EV at home.
It is easy to install and recommended for private use at home. The charging station has built-in protection against residual direct current and a red push-button for emergency stops. One LED changes colour between red, green, and blue to indicate the loading status.
(EVH4S07N2)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | EVH4S07N2 |
| Barcode # | 3606482107311 |
| Shipping Weight | 4.5000kg |
| Shipping Width | 0.282m |
| Shipping Height | 0.409m |
| Shipping Length | 0.148m |
| Shipping Cubic | 0.017070024m3 |
| TYPE | VALUE |
|---|---|
| Type | Charging Station |
| Brand | Schneider Electric |
| Range | EVlink |
| Height (mm) | 409 |
| Width (mm) | 282 |
| Depth (mm) | 148 |
| Weight (kg) | 4.5 |
| Number of Sockets | 1 |
| Mounting Mode | Wall mounted |
| Pole description | 1P+N |
| Nominal Output Power | 7.4 kW 32A 230V |
| Socket outlet type | T2 |
| Output type | Socket-outlet T2 front face |
| Maximum supply current | 32 A |
