Learn more by watching our EVH5A11N2C7 | 11kW Schneider Charge | 7 Meter Cable | 3P+N 16A | Home Charging Station video.

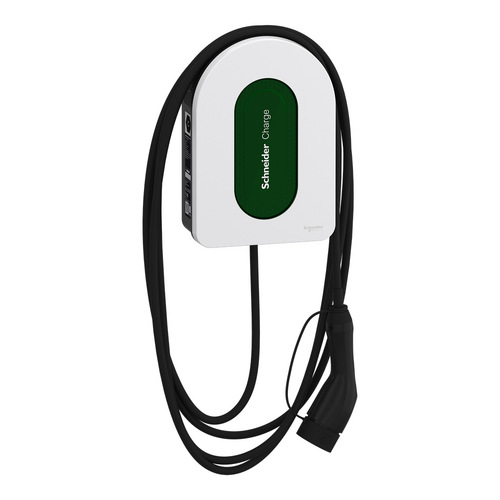

The EVH5A11N2C7 is a powerful and reliable Home Charging Station designed for your convenience. With this station, you can charge your electric vehicle at home without worrying about power availability being affected.
Schneider Charge allows a convenient vehicle charge at home without impacting power availability. This charging station is straightforward to install, protecting your car and you while ensuring the correct charge in a residential setting. It is a simple and easy-to-install charger that provides the correct charge for your EV, minimizing any peak impact and avoiding power overruns or associated costs at an affordable price.
The output type is a 7m attached cable with a T2 socket outlet at the end.
The EVH5A11N2C7 is a wall box charging station compatible with a home anti-tripping system (peak controller EVA2HPC3). The charging station can benefit from dynamic energy management by complementing it with an anti-tripping system that adjusts the maximum power allocated to the charging electric vehicle in real-time according to the consumption of other loads in the house.
It delivers 11KW power, a 7m attached cable, a T2 socket outlet, and a 16A charging capacity. The station is designed for 3 phase connection.
The Charging Station is compact and space-saving. With a height of 352mm, a width of 244mm, and a depth of 117mm, it can easily fit in any corner of your garage or wall on your driveway.
The charging station features IP55 protection, which is dust—and splash-proof. This makes it perfect for outdoor installation. You can confidently install it outside your home, knowing it will withstand the elements.
It is easy to install and recommended for private use at home.
(EVH5A11N2C7)
Warranty starts from Invoice Date
Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct
These specifications and characteristics outline physical, mechanical, electrical details.
| Brand | Clipsal by Schneider Electric |
| SKU | EVH5A11N2C7 |
| Barcode # | 3606486961148 |
| Shipping Weight | 4.5000kg |
| Shipping Width | 0.282m |
| Shipping Height | 0.409m |
| Shipping Length | 0.148m |
| Shipping Cubic | 0.017070024m3 |
| TYPE | VALUE |
|---|---|
| Type | Charging Station |
| Brand | Schneider Electric |
| Range | Schneider Charge |
| Height (mm) | 352 |
| Width (mm) | 244 |
| Depth (mm) | 117 |
| Switch Type | 5.1 |
| Number of Sockets | 1 |
| Communication network type | Wi-Fi | Wireless | Ethernet |
| Communication port protocol | OCPP 1.6, for connection to the Schneider Electric Wiser app |
| Mounting Mode | Wall mounted |
| Connection to the vehicle | Attached cable T2 bottom 7 m |
| rated supply voltage | 400 V AC 50...60 Hz +/- 10 % |
| Poles description | 3P + N |
| Max power | 11 kW 16 A |
Help other Sparky Direct users shop smarter by writing reviews for products you have purchased.
$1,373.90 $1,249.00 ex. GST
$1,373.90 $1,249.00 ex. GST
$1,428.90 $1,299.00 ex. GST
$1,408.00 $1,280.00 ex. GST
YOUR ATTENTION PLEASE: Shipping is not available to for this product. Only order this product is you intend to pick it up locally. We will not ship this product to you if you order this. If you wish to cancel this order after ordering it you will be charged a 3.0% Refund Fee
