        Learn more by watching our Eaton PLS6-C10/2DC | 10 amp DC Circuit breaker 2 pole 10kA video.

        Description

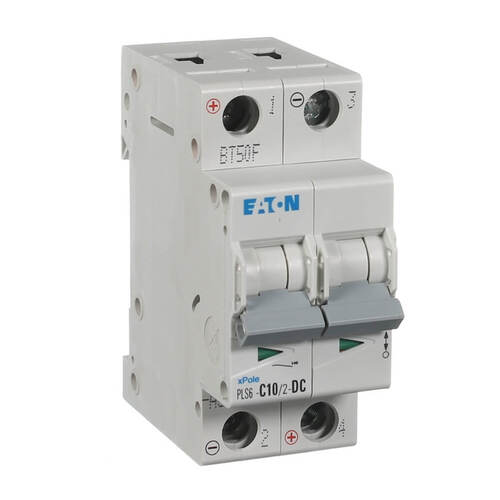

        Eaton PLS6-C10/2DC | 10 amp DC Circuit breaker 2 pole 10kA

        Clearance 6 Left

        The Eaton Moeller PLS6-C10/2DC 10a DC CB is designed to shut off power when a circuit draws more current than the rated amount on the DC circuit breaker, this shut off protects the electrical circuit and all devices using the power from damage.

        Direct current has loads of uses, (mind the pun) from charging batteries to power supplies for motors and invertors.

        10kA rating Suitable for Domestic, Industrial and Commercial applications

        Features:

        • 10 Amp
        • DC Circuit breaker
        • 2 pole
        • 10kA
        • Tripping characteristic C
        • Solar Applications
        • Application Switchgear for DC applications
        • Rated switching capacity acc. to IEC/EN 60947-2 Icu : 10KA
        • Polarised - make sure the positive and negative are connected to the correct terminals.

        (PLS6-C10-2DC)

        Warranty

        Warranty starts from Invoice Date

        Domestic Use: 1 Year
        Commercial Use: 1 Year
        Warranty Method: Return to Sparky Direct

        Specifications

        These specifications and characteristics outline physical, mechanical, electrical details.

        Brand Moeller
        SKU PLS6-C10-2DC
        Barcode # 4015082431334
        Package Weight 0.236kg
        Package Width 0.075m
        Package Height 0.035m
        Package Length 0.086m
        TYPE VALUE
        Type Circuit Protection
        Brand Eaton
        Range PLS6
        Rated Current (A) 10
        Height (mm) 81
        Width (mm) 36
        Depth (mm) 78.5
        Standards IEC/EN 60947-2
        Mounting Din Rail
        Voltage (V) 220 DC
        Number of Poles 2
        Breaking Capacity 10kA
        Curve C
